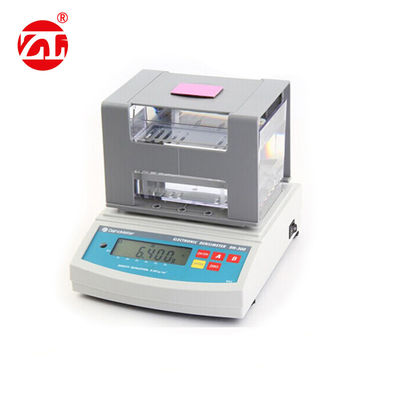

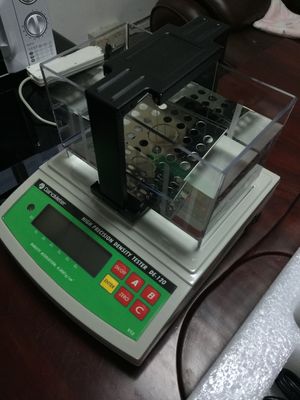

Digital Density Testing Machine with 0.001 g/cm3 Accuracy Based on Archimedes Principle and RS-232C Output

Large Image : Digital Density Testing Machine with 0.001 g/cm3 Accuracy Based on Archimedes Principle and RS-232C Output

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1903C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	3-5 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v	Measuring Range:	0.005~300g Or 0.005~600g
Density Accuracy:	0.001 G/cm3	Density Range:	0.001—99.999g/cm3
Test Time:	About 5s	Output:	RS-232C
Memory Mode:	Dynamic Memory	Warranty:	12 Month
Highlight:	rubber testing equipments , rubber hardness tester

Solid Liquid Digital Density Testing Machine - Archimedes Principle

Plastic / Rubber Digital Solid Liquid Densitometer

Product Overview:

Utilizing the Archimedes principle, this digital densitometer complies with multiple international standards including ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T 611, GB/T11540, GB/T12206, and GB/T5518.

Technical Specifications

Model	Economic Digital Solid Liquid Densitometer
Measuring Range	0.005~300g \| 0.005~600g
Density Accuracy	0.001 g/cm³
Density Range	0.001--99.999 g/cm³

Solid Measurement Capabilities

Measurement Principle: Archimedes' principle universal test method

Test Time: Approximately 5 seconds

Memory Mode: Two-step memory mode

Compatible Materials:

Metal products of all types
Rubber products
Plastic products and plastic particles
Films and floating bodies
Powders and foams
Dopes and fasteners
Pipes and sheet metal
Wood and glass materials
Metal sponges and various product states

Liquid Measurement Capabilities

Measurement Principle: Archimedes displacement method

Test Time: Immediate measurement

Memory Mode: Dynamic memory

Compatible Liquids:

Various liquids including viscous, volatile, corrosive, and high-temperature liquids
Suspended liquids and emulsions
Alcohols, fluxes, and essences
Blood and sodium chloride solutions
Glycerin, electrolytes, and diesel oil
Refrigerants and hydrofluoric acid
Methylene chloride, ethyl ether, and sulfate solutions

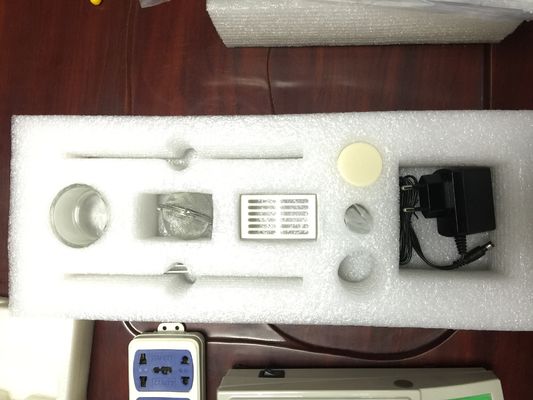

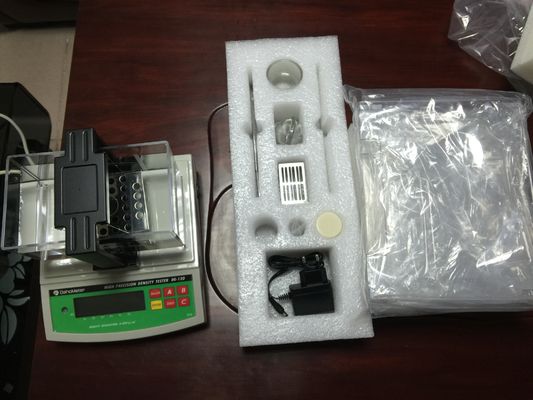

Standard Accessories

Main unit
Tweezers and thermometer
Dust cover
Solid sink and measuring table
Particle measuring device set
Floating body measurement parts set
Liquid placement boards and measurement bracket
DE-20 standard liquid gauge component
Power transformer

Optional Accessories

DE-40 printer
DM-20B anti-corrosive liquid measurement components
DM-20A standard liquid measurement components

Technical Details

Power Supply: AC~220V / 50HZ

Output Interface: RS-232C standard communication interface for data output and printing

Calibration: Single bond automatic correction with automatic detection function

Measurement Authentication: Distilled water verification
