Lab Use Single Screw Extruding Rubber Testing Machine Plastic Pellets Making

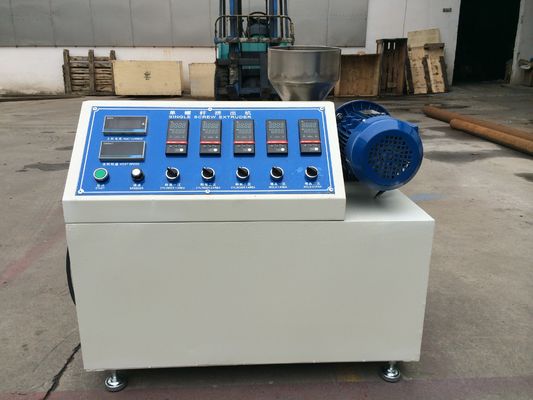

Large Image : Lab Use Single Screw Extruding Rubber Testing Machine Plastic Pellets Making

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3017

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Lab Use Single Screw Extruding Rubber Testing Machine Plastic Pellets Making is packaged in wooden case.
Delivery Time:	15-20 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	PVC PC PA Lab Single Screw Extruding Equipment	Screw Diameter:	25mm
Screw Diameter Ratio:	25:1	Screw Compression:	3
Motor Power:	1KW	Main Motor Speed Controller:	Frequency Converter(Holip Brand)
Barrel Heating Type:	Adopt Stainless Steel With Electric Heating	Key Words:	Single Screw Extruder
Highlight:	rubber testing equipments , rubber hardness tester

Lab Use Single Screw Extruding Rubber Testing Machine Plastic Pellets Making

Product Overview

This laboratory-scale single screw extruder is designed for plastic and rubber testing applications, offering versatile processing capabilities for various materials and product types.

Applications

ABS filament extrusion
PLA filament extrusion
Small diameter PVC/PA/PC tube extrusion
Window edge band extrusion
Soft PVC profile extrusion
Plastic pellets manufacturing
Rattan making

Technical Specifications

Parameter	Specification
Product Name	PVC PC PA Lab Single Screw Extruding Equipment
Screw & Cylinder	38 CrMoAlA, tempered and nitriding treated
Screw Diameter	25mm
Screw Diameter Ratio	25:1
Screw Compression	3
Motor Power	1KW
Main Motor Speed Controller	Frequency converter (Holip Brand)
Barrel Heating Type	Stainless steel with electric heating
