350mm Rock Core Cutting Machine Geological Lab Rock Sample Cutter Diamond Saw Blade Rock Core Specimen Cutting Equipment

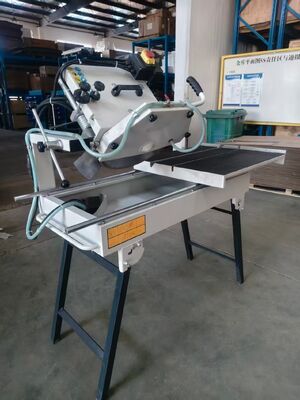

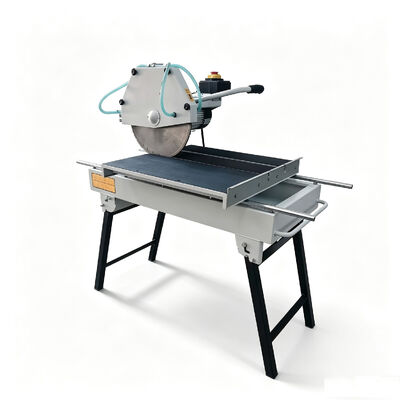

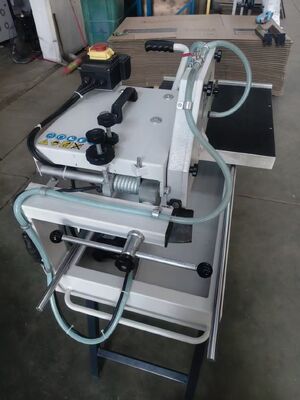

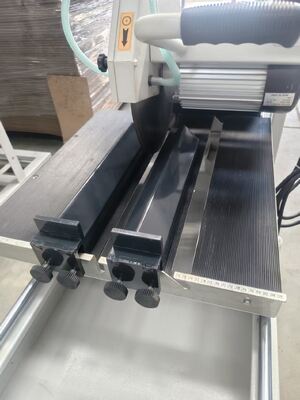

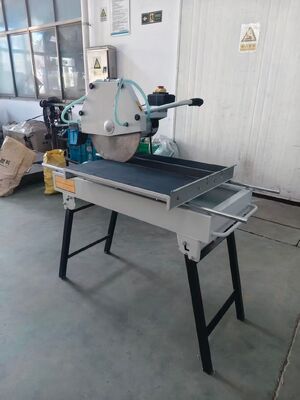

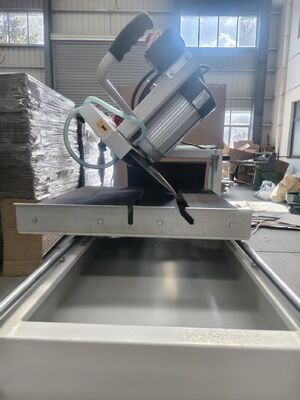

Large Image : 350mm Rock Core Cutting Machine Geological Lab Rock Sample Cutter Diamond Saw Blade Rock Core Specimen Cutting Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-MS-350

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS1000-1500
Packaging Details:	wooden case packaging
Delivery Time:	5-10 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	100 Sets

Contact Now

Detailed Product Description

Name:	Rock Core Cutting Machine	Motor:	220V/ 50 Hz / 1PH
Power:	3KW	Max. Rip Cut Length:	800mm
Max. Cutting Depth:	120mm	Work Table Size:	20-3/4＂x 17＂(600x650mm)
Blade Diameter:	14＂(350mm)
Highlight:	350mm rock core cutting machine , geological lab rock sample cutter , diamond saw blade rock cutter

350mm Rock Core Cutting Machine Geological Lab Rock Sample Cutter

Professional diamond saw blade rock core specimen cutting equipment designed for geological laboratories and industrial applications.

Technical Specifications

Model No.	ZL-MS-350
Motor	220V/ 50 Hz / 1PH
Power	3KW
Max. Rip Cut Length	800mm
Max. Cutting Depth	120mm
Work Table Size	20-3/4"×17" (600×650mm)
Blade Diameter	14" (350mm)
Arbor Size	1" (25.4mm)
Weight	GW: 108 KG \| NW: 80KG
Packing Size	1270×640×530mm

Saw Features

Robust reinforced steel structure ensuring maximum rigidity and durability
Industrial quality fully enclosed induction motor with direct drive mounting
31-1/2" cutting capacity for cutting large materials
Swing head design features smooth and accurate bevel cutting
Large working table for working stability and accuracy
Automatic overload protection
Four built-in legs included
Large capacity water pump included as standard accessory
