10 Ton Manual Rubber Hot Press Machine | Lab Hot Vulcanizing Press for Silicone & Plastic Sample Molding

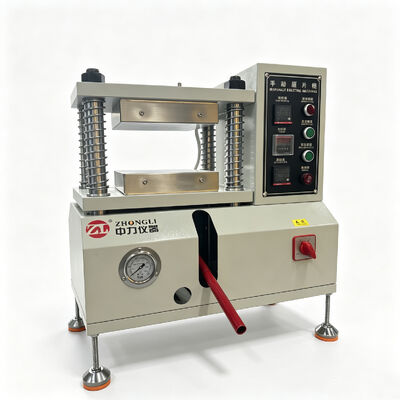

Large Image : 10 Ton Manual Rubber Hot Press Machine | Lab Hot Vulcanizing Press for Silicone & Plastic Sample Molding

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3022B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD2000
Packaging Details:	wooden case packaging
Delivery Time:	5-10 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Manual Lab Platen Vulcanizing Press Machine	Capacity:	10T/20T/30T
Temperature Range:	Normal Temperature To 300°C	Timer:	LED Display, High Precision Time Range 0.1S～99min～9.9hr
Heating Time:	About 15 Minutes From Room Temperature To 170°C	Hot Pressing Plate:	220×220mm
Cylinder Stroke:	Max 160mm	Pressure Gauge:	0～200kg/sq.cm

10 Ton Manual Rubber Hot Press Machine | Lab Hot Vulcanizing Press for Silicone & Plastic Sample Molding

Equipment Overview

This machine is designed to detect impurities in plastic raw materials, PVC, and similar materials to help you assess their quality. The process is simple: you place the test material into a mold, then apply high temperature and pressure to form it into a test piece. Once formed, the sample is placed on a frosted glass plate inside the observation drawer. With light shining from underneath, any impurities or contaminants in the material become clearly visible for easy inspection.

Technical Specifications

Parameter	Details
Capacity (pressure)	Available in 10T, 20T, or 30T models
Temperature range	Room temperature up to 300°C
Temperature controller	Microcomputer-controlled with high-precision LED display; parameters are set via keypad with clear numerical readout
Timer	LED display, high-precision timing range from 0.1 seconds up to 99 minutes or even 9.9 hours
Temperature control mode	PID microcomputer control ensures stable performance and precise temperature regulation
Heater design	Built-in cylindrical heating elements with scientifically optimized hole placement for fast heating, long service life, and easy maintenance
Heating time	Approximately 15 minutes from room temperature to 170°C
Hot pressing plate	220*220 mm, made of high-temperature-resistant SKD imported steel with surface carbonization and quenching treatment—offers rapid heat conduction and maintains even, consistent pressure
Cylinder stroke	Maximum 160 mm
Pressure gauge	Range: 0–200 kg/cm²
Dimensions	420 * 450 * 1200 mm (W * D * H)
Power supply	AC380V, 16A
Weight	Approximately 260 kg
