Industry 150Ton Rubber O Ring Making Machine Silicone Vulcanized

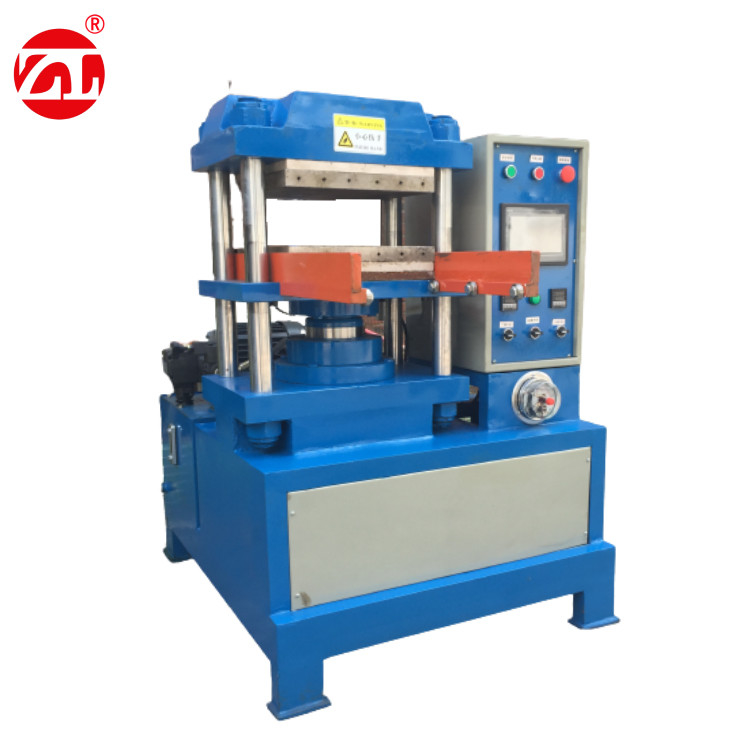

Large Image : Industry 150Ton Rubber O Ring Making Machine Silicone Vulcanized

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO, CE
Model Number:	ZL-3022C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	150Ton Industry Rubber O Ring Making Machine Silicone Vulcanized Machine is packaged within wooden case.
Delivery Time:	15- 20 days
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	150Ton Industry Rubber O Ring Making Machine Silicone Vulcanized Machine	Capacity:	150T(Can Be Customized)
Temperature Range:	Normal Temperature～300℃	Timer:	LED Display, Time Range 0.1S～99min～9.9hr
Temperature Control Method:	P.I.D Method Microcomputer Control Performance Is Stable, And Temperature Control Is Accurate.	Heater:	Built-in Cylindrical Heating Mold, Scientifically Coordinated Holes, Fast Temperature Generation, Long Life, Easy Maintenance
Heating Time:	About 15min At Room Temperature～170℃	Cooling Temperature Range:	Normal Temperature～350℃
Highlight:	Silicone Vulcanized O Ring Making Machine , Rubber O Ring Making Machine , Silicone Vulcanized Rubber Ring Making Machine

150Ton Industry Rubber O Ring Making Machine Silicone Vulcanized Machine

Instruction

The vulcanizer is an advanced rubber product hot press molding equipment, specifically designed for producing complex-shaped rubber products that are difficult to vent and mold, as well as rubber products prone to bubble formation.

This machine features timing mold locking, automatic pressure compensation, precise temperature control, automatic timing, uniform hot plate surface temperature, accurate and intuitive temperature display, stable pressure holding, and safe, convenient operation.

Technical Parameters

Capacity	150T (Customizable)
Temperature Range	Normal temperature to 300℃
Temperature Controller	Microcomputer high-precision LED display, key setting input, numerical display
Timer	LED display, time range 0.1S to 99min to 9.9hr
Temperature Control Method	P.I.D method microcomputer control for stable performance and accurate temperature control
Heater	Built-in cylindrical heating mold with scientifically coordinated holes for fast temperature generation, long life, and easy maintenance
Heating Time	Approximately 15 minutes from room temperature to 170℃
Hot Pressing Plate	450*450mm high temperature resistant steel plate, carbonized and quenched surface for fast heat conduction and parallel pressure maintenance
Cooling Temperature Range	Normal temperature to 350℃
Oil Pressure System	Hydraulic flow closed loop control system with automatic pressure compensation function, preset timing for multiple pressurization stages, strong load capacity, stable lifting, automatic pressurization, pressure maintenance, and pressure relief
Oil Cylinder Stroke	Maximum 200mm
Oil Cylinder Speed	8mm/s

About Zhongli Instrument Technology Co., Ltd

Headquartered in Dongguan, Guangdong, China since 2007, we specialize in manufacturing laboratory testing equipment. With over 14 years of industry experience, our products have been successfully exported to more than 95 countries worldwide, with particular popularity in European and American markets.

Advantage Services

R&D and design department capable of providing both standard technological machines and custom solutions tailored to specific client requirements
Over 50 years of combined manufacturing experience with advanced machinery and sophisticated craftsmanship
Two specialized laboratories: Environmental laboratory and Physical laboratory for comprehensive testing
Adequate monthly stock inventory to meet urgent customer demands
Annual sales exceeding 1,000,000 USD with 30,000㎡ manufacturing base and 120 technical staff capable of handling large budget projects

Technical Support & Quality Components

SUS Stainless plates cut with advanced laser machines for precision accuracy
All machine exteriors feature anti-rust electrostatic painting
Utilization of imported electronic components from leading brands including ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron, and Philips
Incorporation of imported compressors from BOEK and TECUMSEH, ensuring machine service life exceeding 10 years
