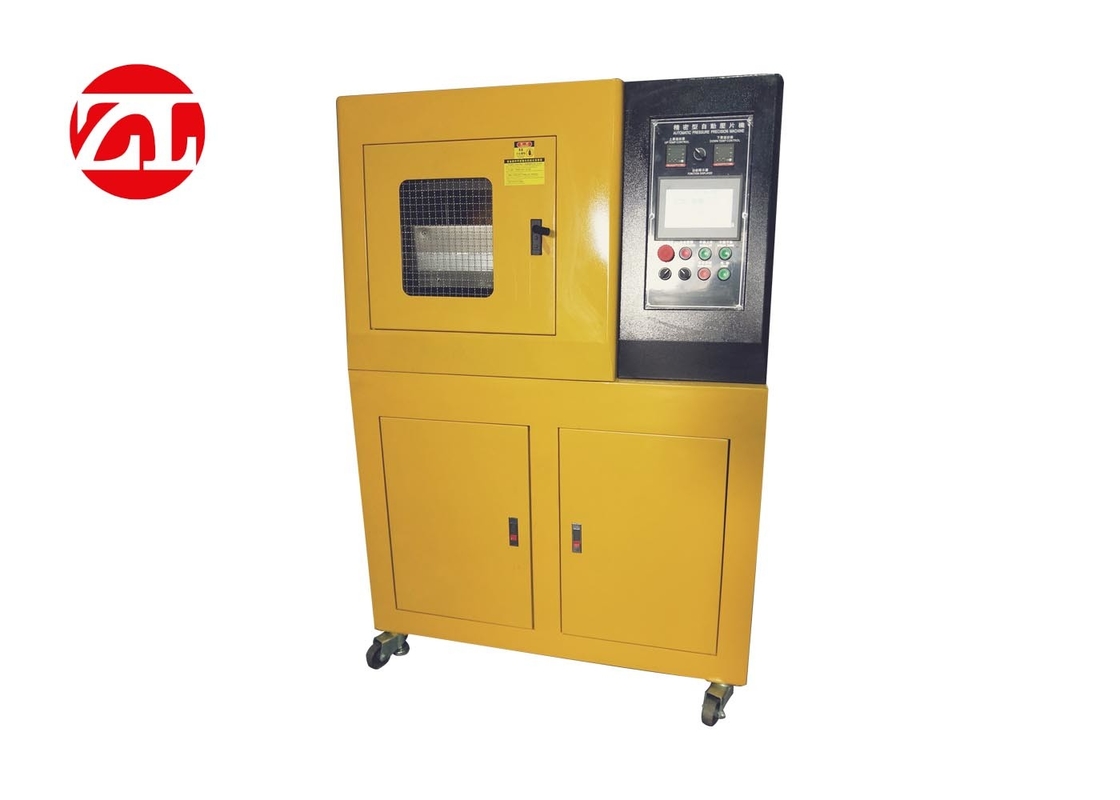

PLC Control Plate Vulcanizing Press Machine , Silicone Molds Machine

Large Image : PLC Control Plate Vulcanizing Press Machine , Silicone Molds Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO, CE
Model Number:	ZL-3022

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	PLC Control Plate Vulcanizing Press Machine，Silcone Molds Machine is packaged within wooden case.
Delivery Time:	15- 20 days
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	PLC Control Plate Vulcanizing Press Machine，Silcone Molds Machine	Capacity:	30T
Power Supply:	380V/ 440v 60hz	Cooling:	Water Cooling
Oil Pressure System:	The Proportion Hydraulic Pressure Current Capacity Loop Circuit Control	Cooling Type:	Tap Water Cooling/compressor Cooling Water(optional)
Pressure Surface:	Mirror Chrome Plated	Pressure Material:	SKD Chromium-molybdenum Alloy
Highlight:	PLC Control Plate Vulcanizing Press Machine , 30T Vulcanizing Press Machine , PLC Control Silicone Mold Machine

PLC Control Plate Vulcanizing Press Machine with Silicone Molds

Product Catalog: Download Rubber Machine Catalog (PDF)

Technical Brief: Download Laboratory Hydraulic Press Tester Brief (PDF)

Product Overview

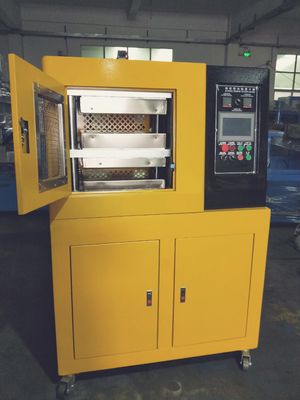

The Hydraulic Rubber Plate Vulcanization Press Machine is designed for casting mold applications where materials are clamped between electric-heating flat plates. This system applies precise pressure and temperature to shape materials, conduct testing, and establish formulation parameters for mass production.

Technical Specifications

Product Name	Hydraulic Rubber Plate Vulcanization Press Machine
Capacity	10T/20T/30T/50T (Customizable)
Temperature Range	Room temperature ~300℃
Temperature Controller	LED Indicator with press key set input and value indicate output
Timer	LED display, time range 0.1S~99min~9.9hr
Heating Type	Electrical Heating module
Hot Pressure Plate	300300mm, 350350mm
Cold Pressure Plate	300300mm, 350350mm
Distance of Pressure Plate	100mm
Pressure Material	SKD chromium-molybdenum alloy
Pressure Surface	Mirror chrome plated
Cooling Temperature Scope	Room temperature ~+5℃
Cooling Type	Tap water cooling/compressor cooling water (optional)
Oil Pressure System	Proportion hydraulic pressure current capacity loop circuit control system with GPY oil pump driver, high performance electroencephalographic matching, high accuracy non-resistance piston oil cylinder for constant speed rate control mode, with pre-selection for one or two times pressure and time
Oil Cylinder Stroke	Max 200mm
Oil Cylinder Speed	11mm/s
Pressure Gauge	0~350kg/sq.cm
Power	10.6HP
*Dimensions (WDH)*	12006001500 mm
Power Supply	AC380V, three phase 60hz
Weight	Approximately 750 kg

About Zhongli Instrument Technology Co., Ltd

Headquartered in Dongguan, Guangdong, China, Zhongli Instrument Technology has been specializing in manufacturing laboratory testing equipment since 2007. With over 14 years of industry experience, our products have established strong market presence across Europe, America, and Southeast Asia, serving more than 95 countries worldwide.

Company Advantages

Custom R&D Capabilities: Dedicated research and design department for both standard technological machines and specialized custom solutions
Manufacturing Expertise: Over 50 years of collective manufacturing experience with advanced machinery and sophisticated craftsmanship
Comprehensive Testing: Two specialized laboratories - Environmental laboratory and Physical laboratory for quality assurance
Adequate Inventory: Monthly stock availability to meet urgent customer requirements
Scale and Capacity: Annual sales exceeding $1,000,000 USD with 30,000㎡ manufacturing base and 120 technical staff for large-scale projects

Technical Excellence

Precision Manufacturing: SUS Stainless plates cut with advanced laser machines for accuracy; anti-rust electrostatic painting on all machine exteriors
Premium Components: Imported electronic components from ABB, Siemens, Panasonic, Saginomiya, Danfoss, Emkarate, Omron, and imported compressors from BOEK/TECUMSEH
Extended Service Life: High-quality components ensure machine service life exceeding 10 years
