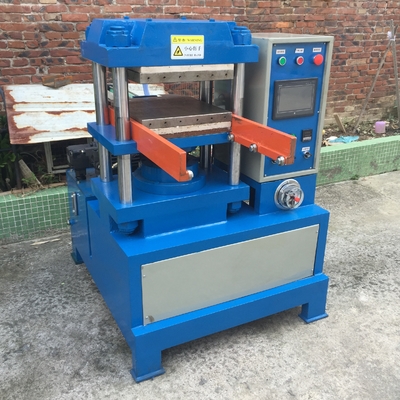

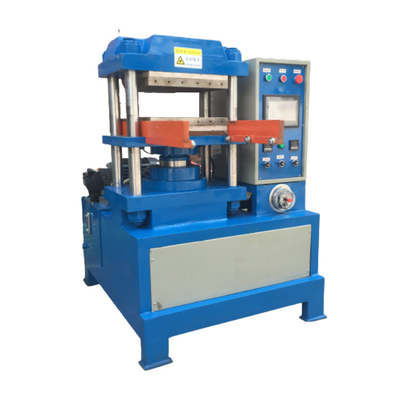

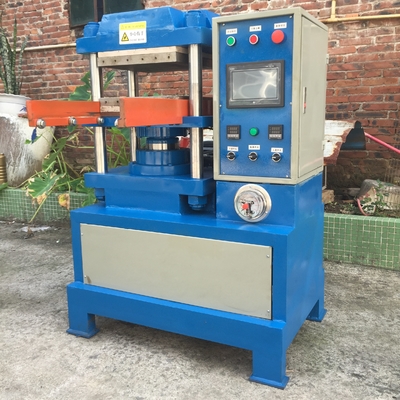

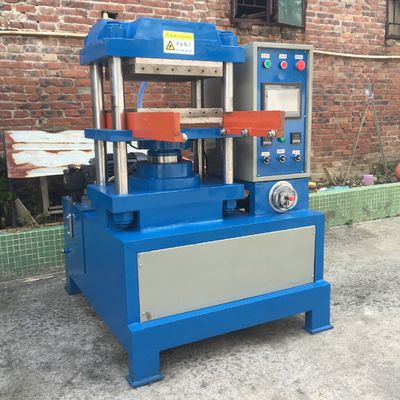

150 Ton Lab Small Silicone Mold Machine Rubber Vulcan Hot Press For Phone Case

150 Ton Lab Small Silicone Mold Machine Rubber Vulcan Hot Press For Phone Case
150 Ton Lab Small Silicone Mold Machine Rubber Vulcan Hot Press For Phone Case
video play

Large Image :  150 Ton Lab Small Silicone Mold Machine Rubber Vulcan Hot Press For Phone Case

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO, CE
Model Number: ZL-3022C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: 150 Ton Lab Silicone Heat Press Vulcanizing Equipment Rubber Mold Hydraulic Machine is packaged within wooden case.
Delivery Time: 15- 20 days
Supply Ability: 30 set per month
Detailed Product Description
Product Name: 150 Ton Lab Silicone Heat Press Vulcanizing Equipment Rubber Mold Hydraulic Machine Temperature Controller: Microcomputer High-precision LED Display, Key Setting Input, Numerical Display
Temperature Range: Normal Temperature~300℃ Timer: LED Display, Time Range 0.1S~99min~9.9hr
Oil Cylinder Stroke: Max 200mm Heater: Built-in Cylindrical Heating Mold, Scientifically Coordinated Holes, Fast Temperature Generation, Long Life, Easy Maintenance
Heating Time: About 15min At Room Temperature~170℃ Oil Cylinder Speed: 8mm/s
High Light:

150 Ton Silicone Mold Machine

,

Lab Silicone Mold Machine

,

Rubber Vulcan Hot Press Machine

150 Ton Lab Small Silicone Molds Machine Rubber Vulcan Hot Press Phone Case Equipment

Hydraulic system and principle:

After pressing the start button, the motor drives the oil pump to rotate (the direction of rotation of the pump should be consistent with the direction of the arrow), the oil filter→gear pump→overflow valve→check valve→cylinder works, and the hydraulic oil passes through the column oil filter→gear pump →Remote pressure regulating valve→One-way valve→The cylinder plug rises rapidly and the flow is reduced. The pressure of the low pressure relief valve and the remote pressure relief valve overflow system is displayed by the black needle of the electric contact pressure gauge, and the red needle of the electric contact pressure gauge is adjusted to The holding pressure is 16Mpa, and the other green needle is adjusted to 16Mpa. When the black needle and the red needle on the watch coincide, the pressure gauge sends a signal to stop the motor, which is the holding pressure. (Note: The vulcanization time and the number of venting times need to be pre-adjusted to 1-999). When the holding pressure time is up, the mold will be automatically lowered, and the hot plate will drop quickly, and the mold will be opened. A working procedure is thus completed. As the pressure drop may occur during mold clamping and vulcanization, the black needle retreats to coincide with the green needle (no pressure is maintained). At this time, the motor restarts to make the black needle coincide with the red needle again, that is, automatic pressure compensation and automatic compensation. Pressure does not affect the curing time.


Parameters:

1. Capacity 150T (Can be customized)
2. Temperature range normal temperature~300℃
3. Temperature controller microcomputer high-precision LED display, key setting input, numerical display
4. Timer LED display, time range 0.1S~99min~9.9hr
5. Temperature control method P.I.D method microcomputer control performance is stable, and temperature control is accurate.
6. Heater built-in cylindrical heating mold, scientifically coordinated holes, fast temperature generation, long life, easy maintenance
7. Heating time about 15min at room temperature~170℃
8. Hot pressing plate 450×450mm high temperature resistant steel plate, the surface is carbonized and quenched, the heat conduction is fast, the pressure is parallel and unchanged
9. Cooling temperature range normal temperature~350℃
10. Oil pressure system hydraulic flow closed loop control system, with automatic pressure compensation function. The time of the first pressurization and the second pressurization and the third pressurization can be preset, the load is strong, and the lifting is stable; automatic pressurization, pressure maintenance, Relieve pressure.
11. Oil cylinder stroke Max 200mm
12. Oil cylinder speed 8mm/s



About us
We are Zhongli Instrument Technology Co., Ltd, an instrument Expert, Headquartered in Dongguan, Guangdong, China.since 2007, specialized in manufacturing Lab testing equipments.

Throughout its more than 14 years of history, Our products have sold well in the Europe, America and Southeast Asia market and total more than 95 countries these years,especially favored by European and American countries.

In addition to standard machines, our R&D team can customize it for you. Just tell us your needs and we will make you satisfied.
150 Ton Lab Small Silicone Mold Machine Rubber Vulcan Hot Press For Phone Case 0
Advantage Service:

1. We have R&D, designing department which can not only provide technological machines but also can satisfy special customized needs of our clients.
2. Over 50 years’ manufacturing experience, advanced machine and sophisticated handcraft.
3. There are TWO laboratories in our factory: Environmental laboratory and Physical laboratory.
4. Our factory have adequate stock monthly, which can meet customers’ urgent needs.
5. Annual sales over 1,000,000USD; 30,000㎡manufacturing base, equipped with 120 technicians, we are capable to take large budget project.



Technical Support:

1. SUS Stainless plate is cut by advanced leaser machine which can ensure accuracy; All machine appearance is anti-rust electrostatic painting;
2. Imported electronic components: ABB/Siemens/Panasonic/Saginomiya/Danfoss/Emkarate/Omron/Philips and imported compressor:BOEK/TECUMSEH, which can keep the machine’s service life over 10 years.
