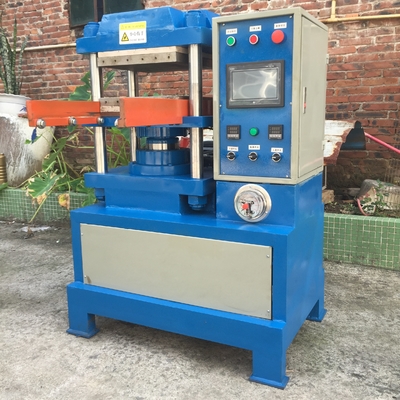

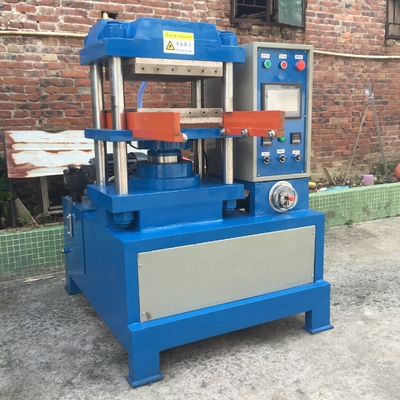

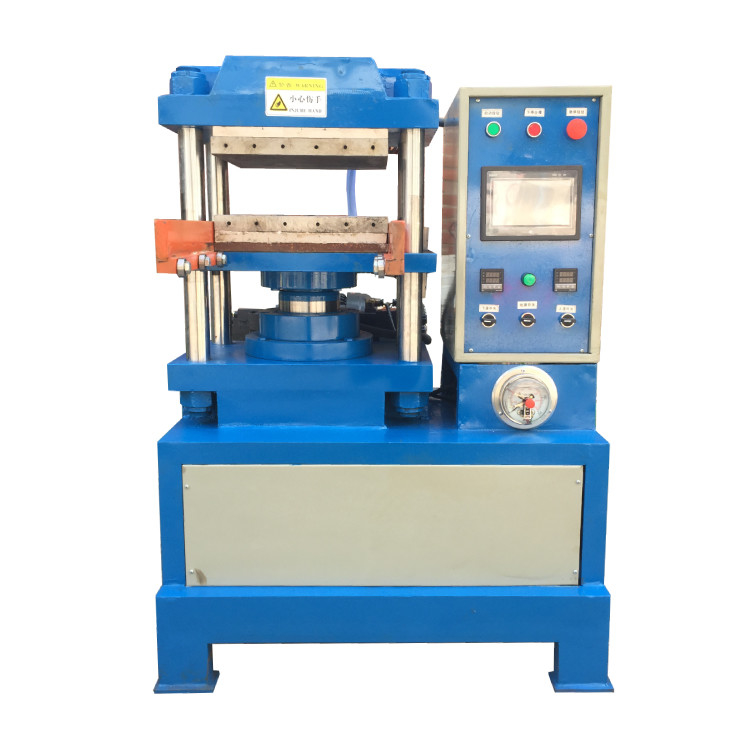

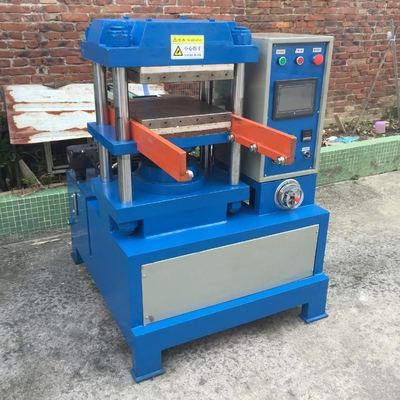

150 Ton Lab Silicone Vulcanizing Heat Press Equipment Rubber Mold Hydraulic

Large Image : 150 Ton Lab Silicone Vulcanizing Heat Press Equipment Rubber Mold Hydraulic

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO, CE
Model Number:	ZL-3022C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	150 Ton Lab Silicone Heat Press Vulcanizing Equipment Rubber Mold Hydraulic Machine is packaged within wooden case.
Delivery Time:	15- 20 days
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	150 Ton Lab Silicone Heat Press Vulcanizing Equipment Rubber Mold Hydraulic Machine	Temperature Controller:	Microcomputer High-precision LED Display, Key Setting Input, Numerical Display
Temperature Range:	Normal Temperature～300℃	Timer:	LED Display, Time Range 0.1S～99min～9.9hr
Oil Cylinder Stroke:	Max 200mm	Heater:	Built-in Cylindrical Heating Mold, Scientifically Coordinated Holes, Fast Temperature Generation, Long Life, Easy Maintenance
Heating Time:	About 15min At Room Temperature～170℃	Oil Cylinder Speed:	8mm/s
Highlight:	8mm/s Heat Press Equipment , Vulcanizing Heat Press Equipment , 150 Ton Rubber Mold Machine

150 Ton Lab Silicone Vulcanizing Heat Press Equipment Rubber Mold Hydraulic Machine

Structure And Principle

The main engine is composed of four parts: the machine body, the oil pump, the control valve, and the electrical control.

Fuselage Components: Composed of upper frame, lower frame, fuel tank, heating plate, oil cylinder, and plunger. The four uprights bear 25T tension and double as guide rails for heating plate lifting.

Oil Pump Components: Uses hydraulic oil pump imported from Taiwan to supply oil to the oil cylinder through the one-way valve control valve.

Control Valve Component: Composed of an automatic drain valve installed on the hydraulic station and a shock-resistant electric contact pressure gauge, which controls the rise and fall of the hot plate and other actions.

Technical Parameters

Parameter	Specification
Capacity	150T (Can be customized)
Temperature range	Normal temperature～300℃
Temperature controller	Microcomputer high-precision LED display, key setting input, numerical display
Timer	LED display, time range 0.1S～99min～9.9hr
Temperature control method	P.I.D method microcomputer control performance is stable, and temperature control is accurate
Heater	Built-in cylindrical heating mold, scientifically coordinated holes, fast temperature generation, long life, easy maintenance
Heating time	About 15min at room temperature～170℃
Hot pressing plate	450*450mm high temperature resistant steel plate, surface carbonized and quenched, heat conduction fast, pressure parallel and unchanged
Cooling temperature range	Normal temperature～350℃
Oil pressure system	Hydraulic flow closed loop control system with automatic pressure compensation function. Preset timing for first, second, and third pressurization. Strong load capacity, stable lifting; automatic pressurization, pressure maintenance, pressure relief
Oil cylinder stroke	Max 200mm
Oil cylinder speed	8mm/s
