Rubber Vulcanizing Press Machine Plate Vulcanizing Machine

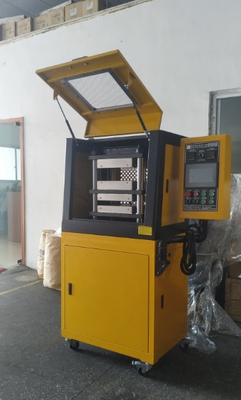

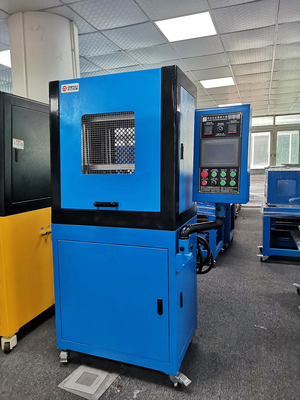

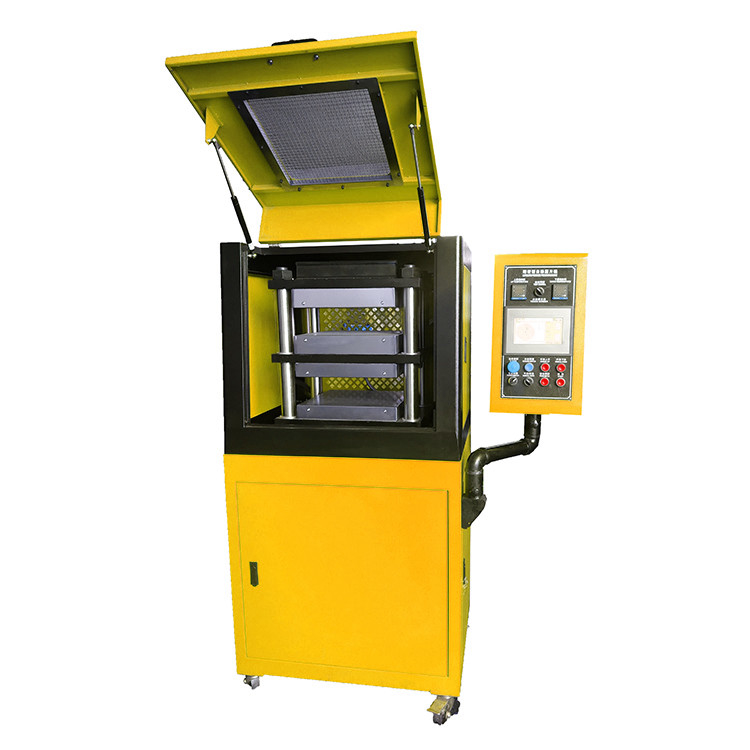

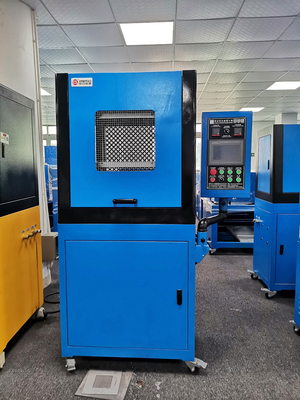

Large Image : Rubber Vulcanizing Press Machine Plate Vulcanizing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO, CE
Model Number:	ZL-3022

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Rubber Vulcanizing Press Machine Plate Vulcanizing Machine is Packaged in wooden case
Delivery Time:	15- 20 days
Payment Terms:	D/A,D/P,Western Union,MoneyGram,T/T,L/C
Supply Ability:	30 sets per month

Contact Now

Detailed Product Description

Product Name:	Rubber Vulcanizing Press Machine Plate Vulcanizing Machine	Platen Size:	350*350mm
Press Layer:	Two	Power Supply:	380V/ 440v 60hz
Heating:	Electrical	Cooling:	Water Cooling
Capacity:	30T	Key Words:	Rubber Vulcanizing Press Machine Plate Vulcanizing Machine
Highlight:	Rubber Vulcanizing Press Machine , Plate Vulcanizing Press Machine

Rubber Vulcanizing Press Machine Plate Vulcanizing Machine

Professional rubber vulcanizing press machine designed for laboratory and industrial applications with precise temperature and pressure control.

Product Documentation

Rubber Machine Catalog (PDF)
ZL-3022 Laboratory Hydraulic Press Tester Brief (PDF)

Functional Parameters

Capacity	10T/20T/30T/50T/65T/80T/100T (capacity optional)
Temperature Range	Normal temperature to 300°C (adjustable)
Temperature Controller	Microcomputer high-precision LED display, key setting input, numerical display
Timer	LED display, time range 0.1S～99min～9.9hr (adjustable)
Temperature Control Mode	P.I.D mode microcomputer control for stable performance and precise temperature control
Heater	Built-in cylindrical heating mold with scientifically matched hole positions, fast heating, long lifespan, easy maintenance
Heating Time	Approximately 15 minutes from room temperature to 170°C
Hot Pressing Plate	300*300mm high temperature resistant SKD imported steel plate, surface carbonization and quenching, fast heat conduction, parallel pressure constant type (customizable specifications)
Cold Pressing Plate	300*300mm titanium aluminum alloy, fast heat conduction, corrosion resistance (customizable specifications)
Cold Cutting System	Tap water circulation system
Cooling Temperature Range	Normal temperature - tap water
Oil Pressure System	Proportional hydraulic flow closed-loop control system, GPY oil pump drives high-performance electro-hydraulic and high-precision non-resistance oil cylinder piston for equal-rate control mode with automatic pressure compensation function

Additional Documentation

ZL-3022 Tablet Machine Equipment Control Type (PDF) Rubber Vulcanizing Press Machine Plate Vulcanizing Machine 0

Manufacturer Information

Dongguan Zhongli Instrument Technology Co., Ltd. is located in Dongguan, Guangdong, China. We are a technology company specializing in the development, research, production, and sales of test equipment.

Our company features technical support, market-oriented approach, and fundamental human resources. We maintain a highly professional, experienced, and innovative research team along with a dedicated production team. We provide the most advanced technology, stable quality, competitive pricing, and comprehensive after-sales service including installation, commissioning, professional training, and 24-hour technical support.
