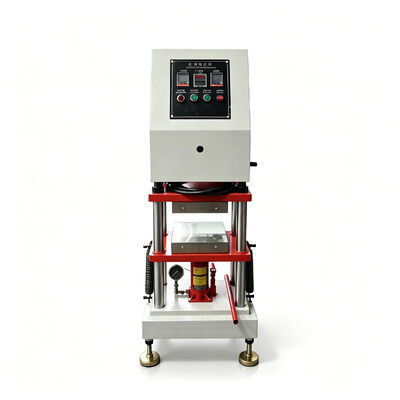

10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Platen Vulcanizing Press for Rubber Plastic Sample Compression Molding

Large Image : 10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Platen Vulcanizing Press for Rubber Plastic Sample Compression Molding

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3022B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	UDS2000-3000
Packaging Details:	wooden case packaging
Delivery Time:	5-10 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	50 sets

Contact Now

Detailed Product Description

Name:	Manual Laboratory Hot Hydraulic Platen Vulcanizing Press	Capacity:	10T/20T/30T

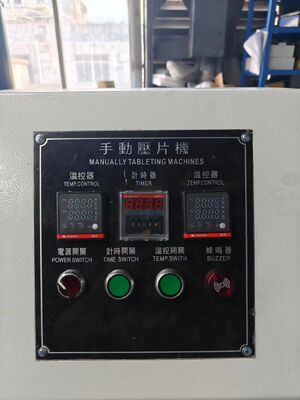

Temperature Range:	Normal Temperature To 300°C	Timer:	LED Display
High Precision Time Range:	0.1S～99min～9.9hr	Heating Time:	About 15 Minutes From Room Temperature To 170°C
Highlight:	manual hydraulic vulcanizing press , laboratory platen press for rubber , hot compression molding machine

10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Platen Vulcanizing Press for Rubber Plastic Sample Compression Molding

Tonnage Optional & Technical Features

The machine provides three mainstream tonnage options: 10Ton, 25Ton and 30Ton, covering low, medium and high pressure test ranges. Users can select the appropriate model according to material hardness, sample thickness and experimental process standards. The equipment supports constant pressure maintenance and constant temperature holding function, which can simulate actual industrial vulcanization and molding environment, providing accurate and reliable experimental data for material formula improvement, performance verification and new product development.

Application Industry

Widely used in rubber and plastic industry, automobile manufacturing, new energy industry, electronic appliances, packaging materials, universities and colleges, scientific research institutions, quality inspection laboratories and testing centers. It is the indispensable basic laboratory equipment for material physical property testing, product process development and quality control.

Product Advantages

Multiple tonnage optional: 10T/25T/30T to meet different test requirements
Manual hydraulic pressure, stable pressure output, easy operation and high safety
High-precision constant temperature control, uniform platen heating, high molding consistency
Thickened steel structure, stable operation, long service life
Small size and space-saving, specially designed for laboratory use
Support customized platen size, temperature range and voltage
Ideal for lab R&D, sample preparation and teaching experiment

10Ton 25Ton 30Ton Manual Laboratory Hot Hydraulic Platen Vulcanizing Press for Rubber Plastic Sample Compression Molding

Technical Parameters

Heater	The heating mold has a built-in cylindrical shape, the hole position is scientifically matched, the temperature is fast, the life is long, and it is easy to maintain
Heating Time	About 15 minutes from room temperature to 170°C
Hot Pressing Plate	220×220mm high temperature resistant SKD imported steel plate, surface carbonization and quenching, fast heat conduction, parallel pressure constant type
Cylinder Stroke	Max 160mm
Pressure Gauge	0～200kg/sq.cm
Volume	420×450×1200 mm(W×D×H)
Power Source	AC380V, 16A
Weight	About 260kg
