10T 20T 50T 100T Hydraulic Vulcanizing Machine - Plastic Rubber Flat Plate Press
Professional hydraulic vulcanizing machine designed for processing and forming rubber and plastic materials under high temperature and pressure conditions.
Machine Overview
The rubber tablet press is specialized equipment for processing and forming rubber materials. It operates under high temperature and high pressure to press rubber materials into specific shapes. The system includes heating devices, pressure systems, temperature control systems, feeding systems, and pressing mechanisms.
Material Preparation
Before vulcanizing, rubber materials must be properly prepared according to specific requirements. Considerations include hardness, modulus, and conductivity properties to ensure optimal results.
Vulcanizing Principle
The vulcanizing process involves heating and pressurizing rubber materials to form specific shapes. Key factors include temperature, pressure, and time control. Proper parameter settings prevent material burning, deformation, cracking, or incomplete forming while optimizing energy efficiency.
Vulcanizing Process
- Heating: Rubber materials are heated to become soft and easily deformable
- Pressing: Heated material is placed into molds and pressed into specific shapes
- Cooling: After pressing, materials are cooled to room temperature for subsequent processing
Applications
Widely used in manufacturing rubber products including seals, pipes, and plates. The resulting products offer excellent wear resistance, oil resistance, and corrosion resistance, making them suitable for automotive, marine, aerospace, power, and mechanical manufacturing industries.
Technical Specifications
| Parameter |
Specification |
| Product Name |
10Ton 50Ton Hydraulic Rubber Plastic Shop Press, Lab Hydraulic Press |
| Capacity |
10T/20T/30T/50T (Customizable) |
| Temperature Range |
Room temperature ~300℃ |
| Temperature Controller |
LED Indicator, press key set input, value indicate output |
| Timer |
LED display, time range 0.1S~99min~9.9hr |
| Heating Type |
Electrical Heating module |
| Hot Pressure Plate |
300*300mm, 350*350mm |
| Cold Pressure Plate |
300*300mm, 350*350mm |
| Distance of Pressure Plate |
100mm |
| Pressure Material |
SKD chromium-molybdenum alloy |
| Pressure Surface |
Mirror chrome plated |
| Cooling Temperature Scope |
Room temperature ~+5℃ |
| Cooling Type |
Tap water cooling/compressor cooling water (optional) |
| Oil Pressure System |
Proportion hydraulic pressure current capacity loop circuit control system, GPY oil pump driver high performance electroencephalographic matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can pre-select one, two times pressure and time |
| Oil Cylinder Stroke |
Max 200mm |
| Oil Cylinder Speed |
11mm/s |
| Pressure Gauge |
0~350kg/sq.cm |
| Power |
10.6HP |
| Dimension W*D*H |
1200*600*1500 mm |
| Power Supply |
AC380V, three phase 60hz |
| Weight |
About 750 kg |

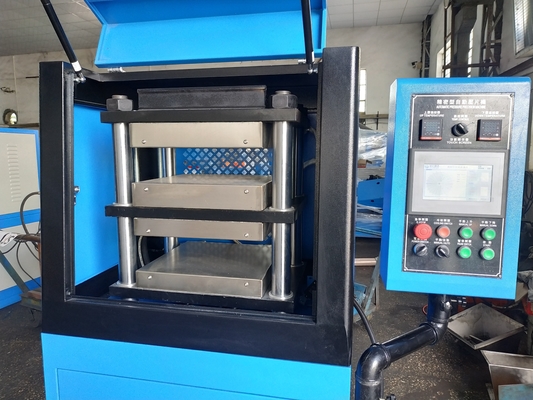

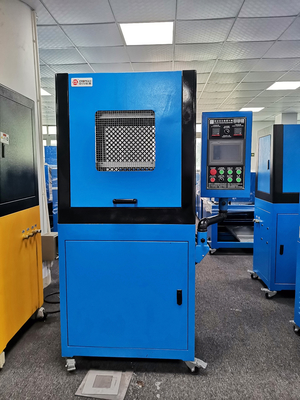

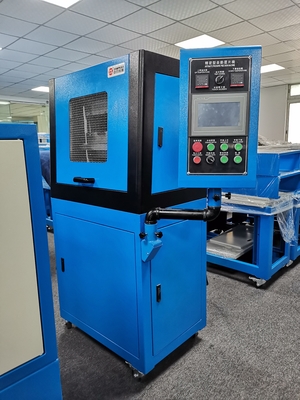

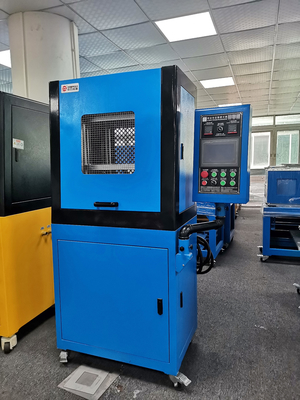

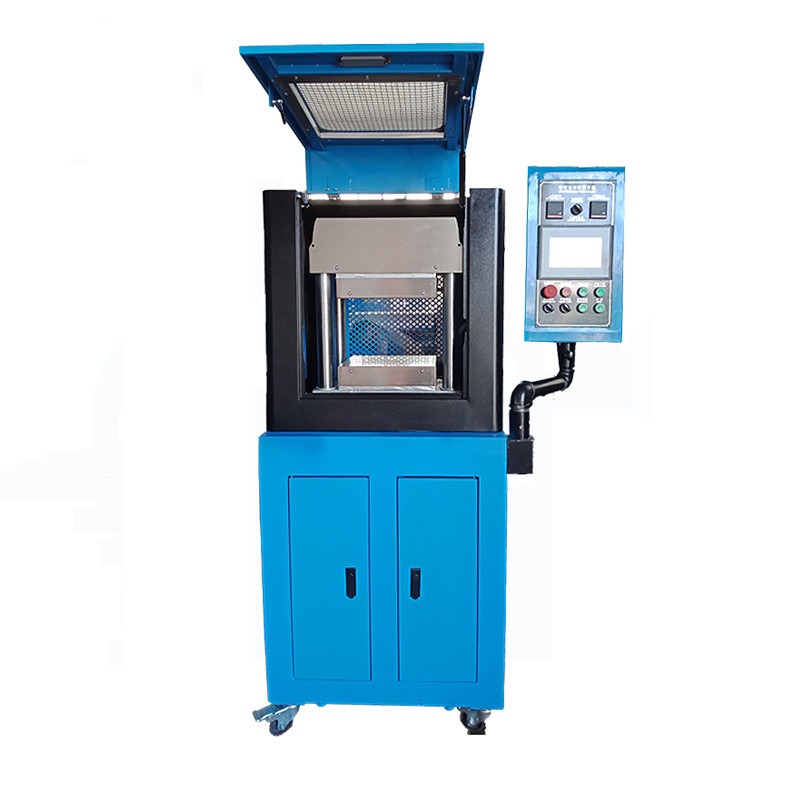

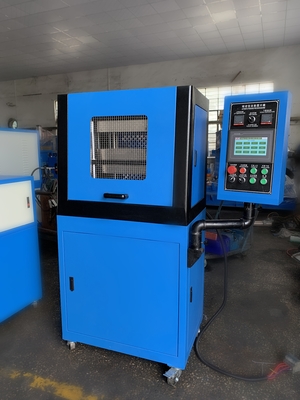

Product Gallery
Frequently Asked Questions
How to choose the most suitable Mechanical Equipment?
Our professional team will provide optimal recommendations based on your specific testing requirements and required specifications.
Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory. We will help arrange hotel accommodations and airport pickup.
What's the delivery term?
We typically maintain factory stock. For out-of-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders receive special arrangement consideration.
Do you accept customization service?
Yes, we offer both standard machines and customized solutions according to your specific requirements. Please share your needs for tailored solutions.
How about the packing for machine, is it safely protected during transportation?
All machines are packed in standard export wooden boxes to ensure safe transportation. We have extensive experience delivering testing machines worldwide by sea and air without damage.
