PVC PP PE Extrusion Line Plastic Profile Fully Automatic Plastic Extruder Machine

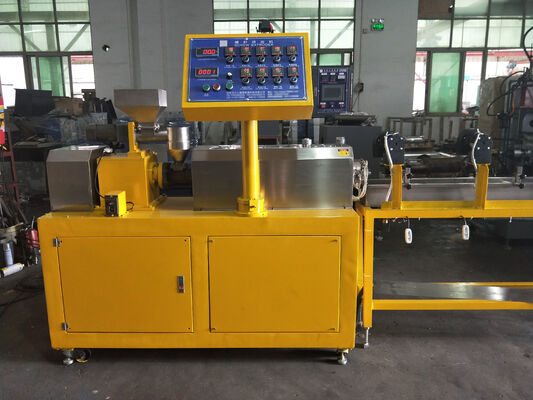

Large Image : PVC PP PE Extrusion Line Plastic Profile Fully Automatic Plastic Extruder Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3020

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	PVC PP PE Extrusion Line Plastic Profile Fully Automatic Plastic Extruder Machine is packaged in wooden case.
Delivery Time:	15-20 work days
Payment Terms:	T/T,L/C,Western Union,D/P,D/A
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	PVC PP PE Extrusion Line Plastic Profile Fully Automatic Plastic Extruder Machine	Model:	ZL-3020
Feeding Method:	Twin-screw Quantitative Feeding With Stirring Function	Hopper:	Stainless Steel, Thickness ≥ 2mm
Feeding Screw:	Material 45#, Hard Chrome Plated On The Surface	Feeding Hopper:	Made Of Stainless Steel, Thickness δ=1.5mm
Screw Diameter:	Ø21.7mm	Length-to-diameter Ratio:	L/D=40:1
Highlight:	PVC PP PE extrusion line machine , fully automatic plastic extruder , plastic profile extrusion machine

PVC PP PE Extrusion Line Plastic Profile Fully Automatic Plastic Extruder Machine

Equipment Overview

Product Introduction

During the polymer extrusion process, the twin-screw granulator performs shearing, mixing, and extrusion of conveyed solid melt polymers at controlled temperatures. This process involves physical state changes, mixing morphology and structural transformations, and determines the relationship between the final mixture and material properties.

Working Principle

Material enters through the feeding port and is kneaded into a ball that rolls forward along the screw groove under rotating screw action. Through shearing, compression, and stirring, the material undergoes further mixing and plasticization. Temperature and pressure gradually increase, creating a viscous flow state that passes through the machine head under specific pressure and temperature conditions to achieve the desired product shape.

Key Features

High-Quality Gearing: Gears manufactured from premium alloy materials with carburized and quenched tooth surfaces. Special grinding software ensures uniform tooth load distribution, high strength, low noise, and minimal vibration. Integrated减速 and torque distribution for compact structure.
Superior Screw and Barrel Design: Components made from wear-resistant materials with optimized surface finish to ensure material quality and extended machine service life.
Advanced Screw Construction: Building block structure with thread elements made from 38CrMoALA nitrided steel. High-temperature vacuum quenching heat treatment provides exceptional hardness, wear resistance, and corrosion resistance.
Efficient Heating System: Built-in heaters rapidly heat materials with precise temperature control to maintain stable physical and chemical properties while saving energy and facilitating maintenance.
Premium Enclosure: Stainless steel windshield cover provides attractive appearance and optimal heat dissipation.

Application Scope

Ideal for mixing and processing experiments involving engineering plastics, modified plastics, waste plastics, and color masterbatches. Provides homogenization, plasticizing, coloring, and filling modification capabilities.

Mixing, kneading, extrusion and granulation of general plastics, engineering plastics, elastomers and other materials
Blending modification of composite materials
Polymer filled reinforcement modification
