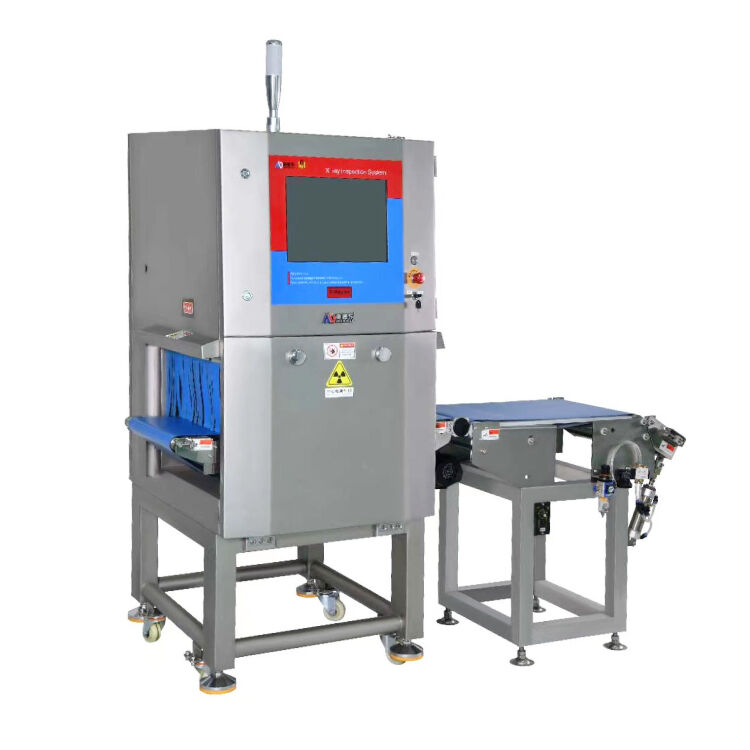

Metal Detector X Ray Machine Food Grade X Ray Inspection Machine

Large Image : Metal Detector X Ray Machine Food Grade X Ray Inspection Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-4024

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	17000-25000
Packaging Details:	Metal Detector X Ray Machine Food Grade X Ray Inspection Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Metal Detector X Ray Machine Food Grade X Ray Inspection Machine	Computer Display:	4 15" Touch Screen
Processing System:	Windows 2000 Professional	Equipment Management:	MTBF, MTTR, Danger Alarm Prompt
Product Management:	Can Be Inquired By Year/month/day And Custom Date	Bad Image Management:	Stored In The U Disk, Can Be Exported
Parameter Setting:	Automatic Setting, Operation Instructions	Key Words:	Foreign Matter
Highlight:	food grade x ray machine , metal detector inspection machine , x ray metal detector machine

Metal Detector X-Ray Machine - Food Grade X-Ray Inspection System

Product Overview

Advanced food-grade X-ray inspection machine designed for comprehensive contaminant detection in food processing environments. This system combines metal detection with X-ray technology for superior product safety and quality control.

Key Advantages

10-inch Color Touch Screen Display: Smartphone-like operation with intuitive user interface
Quick Belt Replacement System: Buckle design enables simple and convenient belt cleaning
Up to 10 Quick-access Presets: Seamless product changeover without production stoppage
Reject Product Query and Print: Comprehensive recording and reporting of non-conforming products
Production Trend Feedback Signal: Optimizes upstream packaging machinery accuracy
Core Components Utilize Imported Parts: Ensures stable and reliable equipment operation
Independent Manufacturing Facility: Competitive pricing for equivalent grade equipment
Domestically Leading Diverting Rejection Device: Maintains product integrity during sorting

Technical Specifications

Item	Specification
Aperture Size	500mm (W) * 230mm (H)
Detectable Area	400mm (W) * 180mm (H)
Conveyor Speed	0.4 m/s
Pixel Size	0.8mm
Detection Sensitivity	Clearly visible for: 0.8mm diameter metal wire, broken needle tips, foreign contaminants
X-ray Beam Direction	Bottom-up irradiation
Digital X-ray Generator	Tube Current: 0.3 ~ 1.25mA (Adjustable) Tube Voltage: 100 kV (Adjustable)
Cooling / Duty Cycle	Sealed Oil Cooling / 100%
Leakage Radiation Dose Rate	< 1µSv/h
Radiation Protection	Multi-layer, staggered, wear-resistant lead curtains and thick 2-5mm lead plates
Image Processing Features	Monochrome/Color toggle, Image Invert, Image Recall, Overall Zoom & Local Magnifier
Image Database	Export in JPEG, BMP, BITMAP formats; customizable storage path; 100,000 image storage capacity (Expandable)
Thin Object Imaging	Capable of imaging ultra-thin items
Multi-level User Management	Admin, Operator, Technician roles with tiered permissions
System Noise	≤ 55dB(A)
Duty Cycle	100%, No warm-up required
