Metal Detector for Food Processing Industry, Metal Detector for Meat Industry

Large Image : Metal Detector for Food Processing Industry, Metal Detector for Meat Industry

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-4001

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	2800-3500
Packaging Details:	Metal Detector for Food Processing Industry, Metal Detector for Meat Industry is packaged within wooden case.
Delivery Time:	7-14 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	Metal Detector For Food Processing Industry, Metal Detector For Meat Industry	Size:	100-120-150-200-250-300-350-400-customize
FE Sensitivity:	0.6-3.0-customize	Non-Fe Sensitivity:	1.2-3.5-customize
SUS Sensitivity:	1.5-4.0-customize	Speed:	10-30 M/min Optional (default Constant Speed)
Machine Weight:	About 200～250KG	Certificate:	CE
Highlight:	food processing metal detector machine , meat industry metal detector , industrial metal detector for food

Metal Detector for Food Processing Industry, Metal Detector for Meat Industry

Introduction:

Food metal detectors are primarily used in industries such as sauces, sausages, dumplings, ham, soup bases, candies, preserved foods, salted foods, fast food, food additives, starch, glucose, tobacco, fresh meat, and dairy products. They are suitable for products with strong product effects and for other industries with extremely high requirements for detection sensitivity, anti-interference capability, and waterproofing. They are designed to detect various metals such as broken needles, iron wires, lead, copper, aluminum, tin, and stainless steel that may be mixed in or lost within food, raw materials, or products.

Metal Detector:

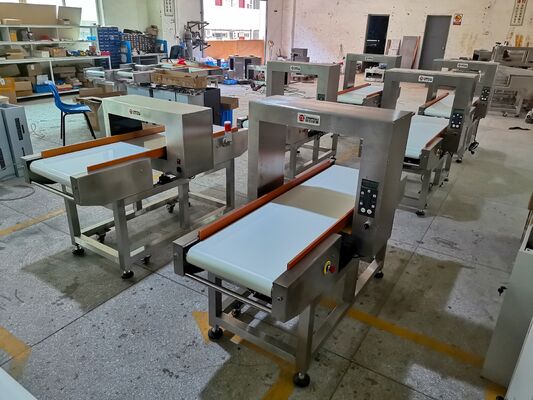

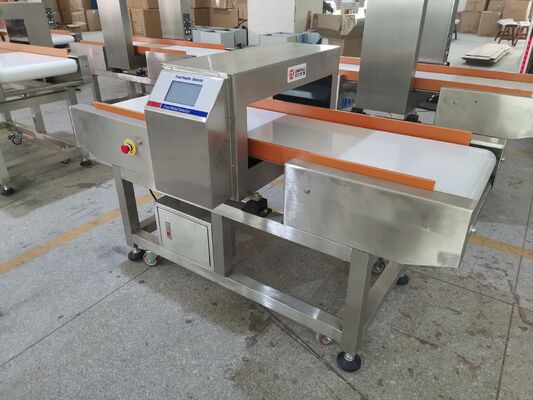

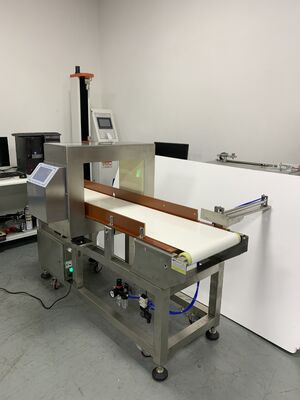

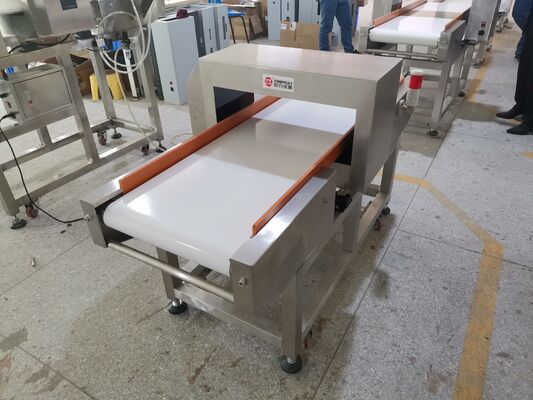

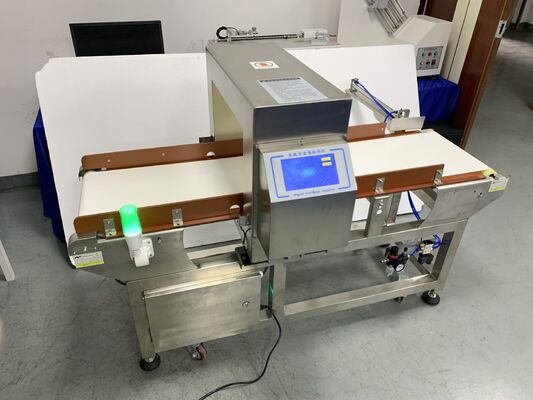

During operation, a gantry metal detector is typically used. Customers can pass the items to be inspected through the detector via a conveyor belt to complete the detection process. This type is a commonly used product, and its structure is as shown in the image of the integrated metal detector.

Metal Detector for Food Processing Industry, Metal Detector for Meat Industry 0

Machine Parameter:

SIZE		ZL-4001B
		4010	4012	4015	4020	4025	4030	4035	4040
Detection Width(mm)		400(Other widths can be customized)
Detection Height(mm)		100	120	150	200	250	300	350	400
Sensitivity	FE (Ф mm)	≥0.6	≥0.8	≥1.0	≥1.2	≥1.5	≥2.0	≥2.5	≥3.0
	Non-Fe (Ф mm)	≥1.2	≥1.2	≥1.5	≥1.8	≥2.0	≥2.5	≥3.0	≥3.5
	SUS (Ф mm)	≥1.5	≥1.8	≥2.0	≥2.3	≥2.5	≥3.0	≥3.5	≥4.0
Alarm Method		Automatically shut down when metal foreign objects are detected, and output 12V buzzer alarm sound to warn and rewind.
Machine Size		1330×720×1000(L×W×H) customized size is subject to actual size
Belt Material		Food grade PVC Belt (Food grade PU Belt (Can Contact Food) Selection)
Speed		10-30 m/min optional (default constant speed)
Machine Weight		About 200～250KG
Power		220V 50Hz , 120W(can be customized)
Load Capacity		Within 20KG (customizable)
The Height from ground to the belt		Height 700mm (other heights can be customized)
Storage Function		99 products, 990,000 data.
Optional		7-inch touch screen with USB interface, data can be exported
Optional		Rejection of duplicates, push rods, and air blows
The sensitivity parameter is the approximate value of the empty machine test, and the actual test parameter will be added or subtracted depending on the test object.

Metal Detector for Food Processing Industry, Metal Detector for Meat Industry 1
