ISO 11925-1 ISO 11925-2 Flammability Test Equipment Building Material Inflatability Testing Machine with Single Flame Source

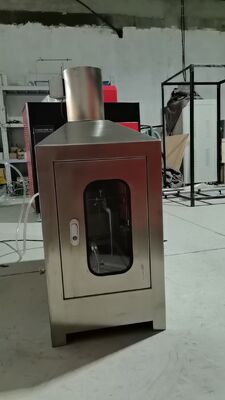

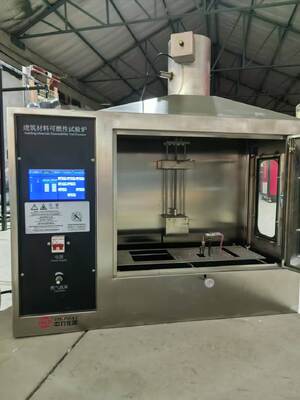

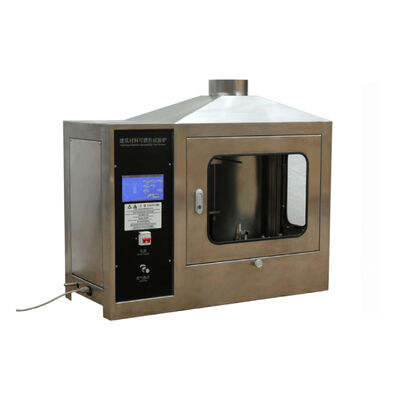

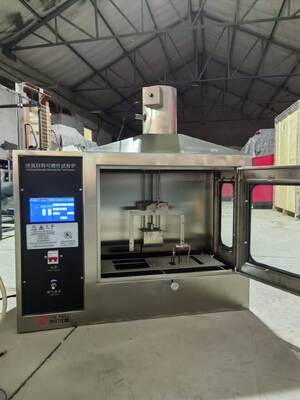

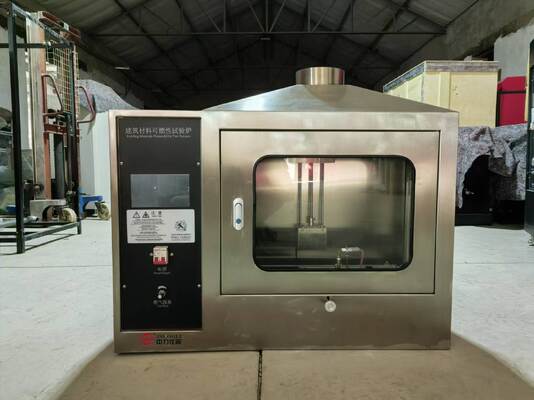

Large Image : ISO 11925-1 ISO 11925-2 Flammability Test Equipment Building Material Inflatability Testing Machine with Single Flame Source

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3060

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 1,200.00 - 1,500.00 / unit
Packaging Details:	ISO 11925-1 ISO 11925-2 Flammability Test Equipment Building Material Inflatability Testing Machine with Single Flame Source will be Packaged in wooden case （fumigation free）
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	ISO 11925-1 ISO 11925-2 Flammability Test Equipment Building Material Inflatability Testing Machine With Single Flame Source	Model:	ZL-3060
Ambient Temperature:	15 ° C ~ 25 ° C	Relative Humidity:	≤ 85%
The Burner Diameter:	Φ0.17mm	Burner Can Be Tilted:	45°
Apply Flame To The Sample:	1s-99 S ±0.5s
Highlight:	ISO 11925 flammability test equipment , building material flammability testing machine , single flame source flammability tester

ISO 11925-1 ISO 11925-2 Flammability Test Equipment Building Material Inflatability Testing Machine with Single Flame Source

Scope of use:

Touch screen control building materials flammability test furnace uses a stainless steel box, which is based on the old JCK-2 products, new touch screen control, sample controllable automatic lifting, Bunsen lights can be adjusted to upgrade, is strictly based The high-profile building materials burning grade test instrument produced by the national standard GB8626-2007. (The red part is the parameter that the third-party testing unit now accepts the mandatory requirements).

The building material flammability test furnace measures the flammability of the building product by directly impacting the vertically placed sample with a small flame in a normal combustion environment. The flammability test furnace for building materials utilizes the German Kleinbrenner principle to measure the combustion properties of Class B building materials under direct direct impact of small flames in the vertical direction (it’s for the combustion properties of building materials / flame retardant grade B Level judgment).

Applicable Standard:

ISO11925-2:2002 E Test method for flammability of building materials

Design Standards:

GB/T8626-2007 Test method for flammability of building materials

Technical Parameters:

1. Ambient Temperature	15 ° C ~ 25 ° C;
2. Relative Humidity	≤ 85%;
3. Supply Voltage And Power	220V 50HZ 100W;
4. Gas Source	commercial propane with a purity of not less than 95%. The ordinary test can also be replaced by liquefied petroleum gas (the user needs to bring their own safety).
5. Bunsen burner applies flame time to the pattern for 15s
6. Single-chip control, digital display.
7. The burner diameter is Φ0.17mm, the Bunsen burner flame length is 20mm±2mm, and the burner can be tilted 45°.
8. Apply flame (1s-99 s) ±0.5s to the sample, which can be adjusted arbitrarily with an accuracy of ±0.2s.
9. Combustible Gas Source	propane with a purity of more than 95%.

ISO 11925-1 ISO 11925-2 Flammability Test Equipment Building Material Inflatability Testing Machine with Single Flame Source 0
