Desktop Mini Plastic Extruder Lab Single Screw Extruder Lab Screw Extruder

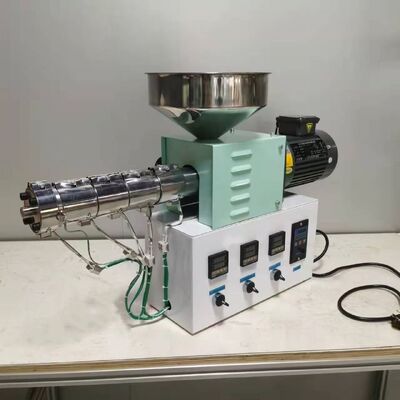

Large Image : Desktop Mini Plastic Extruder Lab Single Screw Extruder Lab Screw Extruder

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3017C-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 2,000.00 - 3,000.00 / unit
Packaging Details:	Desktop Single-Screw Extrusion And Granulation Machine is packaged in wooden case.
Delivery Time:	15-20 days
Payment Terms:	T/T, L/C, Western Union, D/P, D/A
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	Desktop Mini Plastic Extruder Lab Single Screw Extruder Lab Screw Extruder	Model:	ZL-3017C-1
Screw Diameter:	15mm (20mm Optional)	Output Capacity:	0.01–0.5 Kg/h
Machine Dimensions (L×W×H):	0.5 × 0.2 × 0.4 M	Weight (Wooden Case Packed):	24 Kg
Extrusion Center Height:	300 Mm
Highlight:	mini plastic extruder lab equipment , single screw extruder for lab , desktop plastic extruder with warranty

Desktop Mini Plastic Extruder Lab Single Screw Extruder Lab Screw Extruder

Application:

Product performance of laboratory small single-screw extruder:

Professionally manufactured screws and barrels with high processing precision and quality assurance

Brand motor drive, screw speed control is stable and reliable

The material with adjustable particle size is fully plasticized and mixed in the screw.

Application scope of laboratory small single screw extruder:

Melting, plasticizing and extruding of materials

Optimization of extrusion molding process parameters

Set up small experimental lines for films, sheets, pipes, granulation, etc.

Technical Parameters:

Screw Diameter	15mm (20mm optional)
Output Capacity	0.01–0.5 kg/h
Machine Dimensions (L×W×H)	0.5 × 0.2 × 0.4 m
Weight (Wooden Case Packed)	24 kg
Extrusion Center Height	300 mm
Extrusion Direction	Right to Left
Motor Power	200 W
Voltage	220V (or customizable)
L/D Ratio	16:1
Heating Temperature Range	Room Temperature to 300°C
Feeding Zone	Equipped with silent cooling system
Screw & Barrel Material	38CrMoAl, Nitrided

Desktop Mini Plastic Extruder Lab Single Screw Extruder Lab Screw Extruder 0
