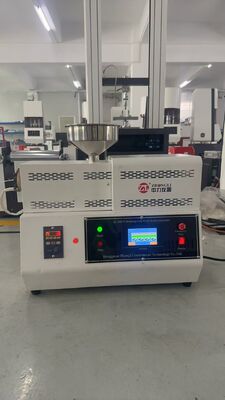

Desktop Single-Screw Extrusion And Granulation Machine

Desktop Single-Screw Extrusion And Granulation Machine
Desktop Single-Screw Extrusion And Granulation Machine Desktop Single-Screw Extrusion And Granulation Machine Desktop Single-Screw Extrusion And Granulation Machine Desktop Single-Screw Extrusion And Granulation Machine Desktop Single-Screw Extrusion And Granulation Machine Desktop Single-Screw Extrusion And Granulation Machine

Large Image :  Desktop Single-Screw Extrusion And Granulation Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-3017C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 3,000.00 - 5,000.00 / unit
Packaging Details: Desktop Single-Screw Extrusion And Granulation Machine is packaged in wooden case.
Delivery Time: 15-20 days
Payment Terms: T/T,L/C,Western Union,D/P,D/A
Supply Ability: 30 set per month
Contact Now
Detailed Product Description
Product Name: Desktop Single-Screw Extrusion And Granulation Machine Model: ZL-3017C
Screw Diameter: 25mm Design Output: 0.1-1.5KG/h
Machine Size L*W*H: 640mm * 300mm * 550mm Weight: About 90 KG
Extrusion Center Height: 300mm
Highlight:

single-screw extrusion machine for rubber

,

desktop granulation machine for rubber

,

rubber testing extrusion machine

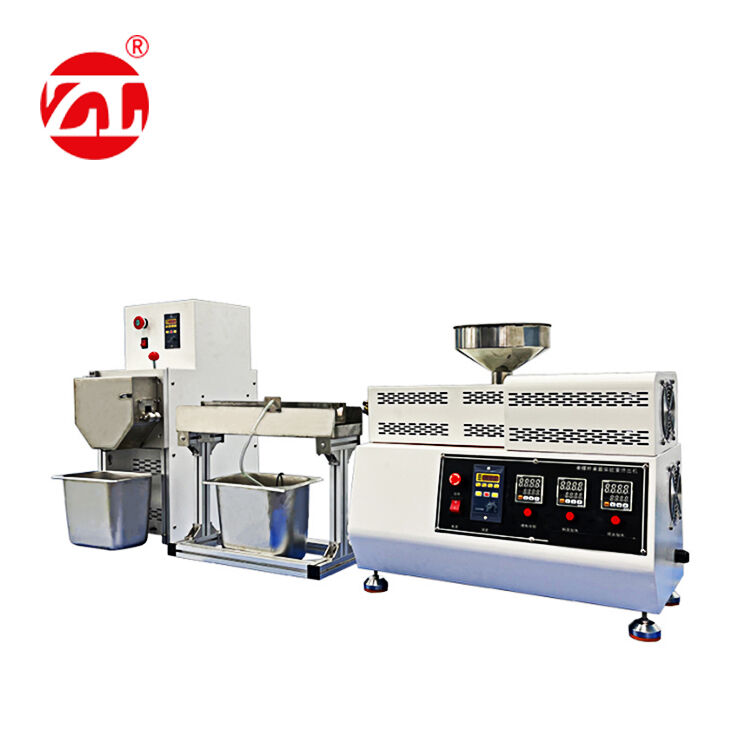

Desktop Single-Screw Extrusion And Granulation Machine
Equipment Overview and Features
Product Performance:
  • Professionally manufactured screws and barrels with high processing precision and quality assurance
  • Brand motor drive with stable and reliable screw speed control
  • Material with adjustable particle size is fully plasticized and mixed in the screw
Application Scope:
  • Melting, plasticizing and extruding of materials
  • Optimization of extrusion molding process parameters
  • Setup of small experimental lines for films, sheets, pipes, granulation, and more
Technical Specifications
Screw Diameter 25mm
Design Output 0.1-1.5 KG/h
Machine Size (L*W*H) 640mm * 300mm * 550mm
Weight Approximately 90 KG
Extrusion Center Height 300mm
Extrusion Direction Right to Left Out
Motor Power 370W
Voltage 220V 50HZ
L/D Ratio 21:1
Heating Temperature Normal Temperature - 350℃
Feeding Area With Silent Cooling Device
Screw Barrel Material 38CrmoAl, Nitrided
Temperature Zones 3

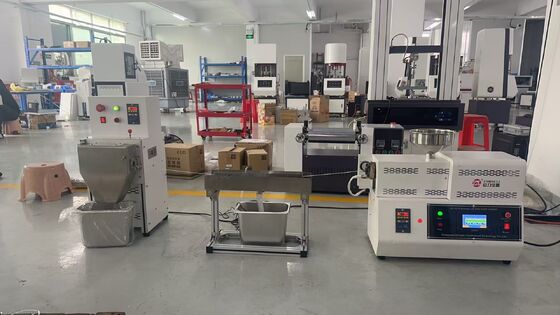

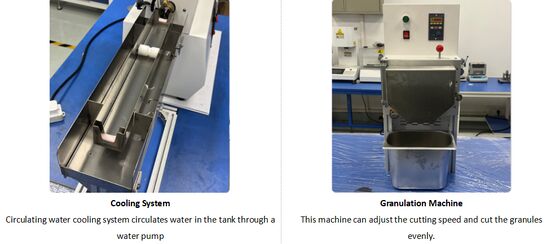

Machine Structure
Desktop Single-Screw Extrusion And Granulation Machine 0
