DSC-100 Differential Scanning Calorimeter Differential Scanning Calorimetry

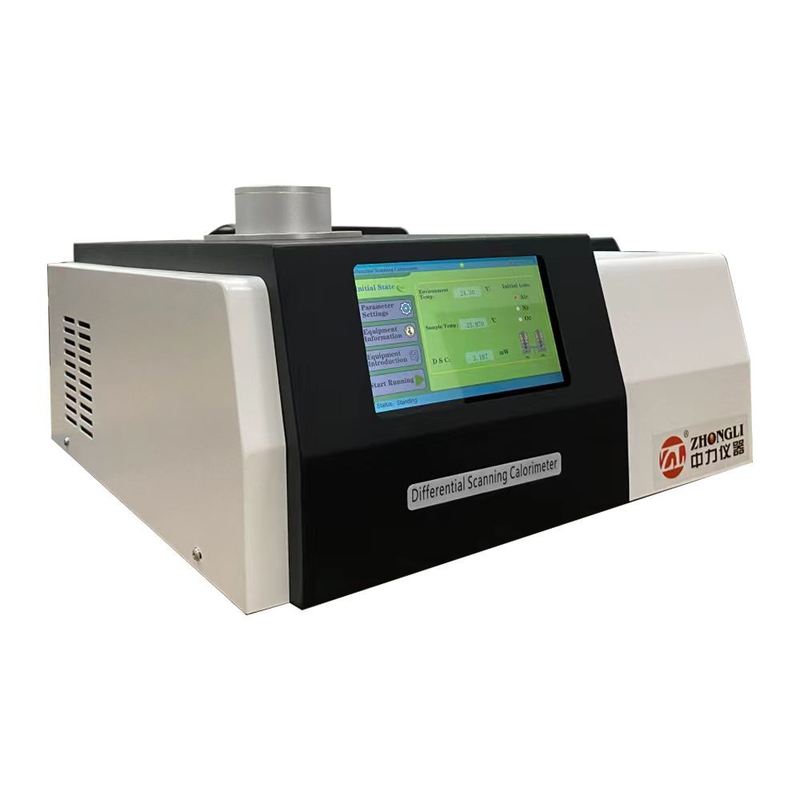

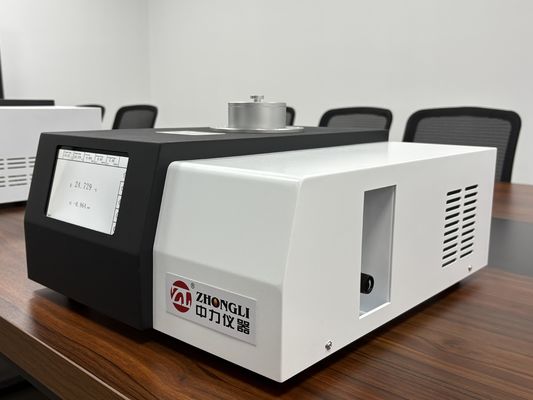

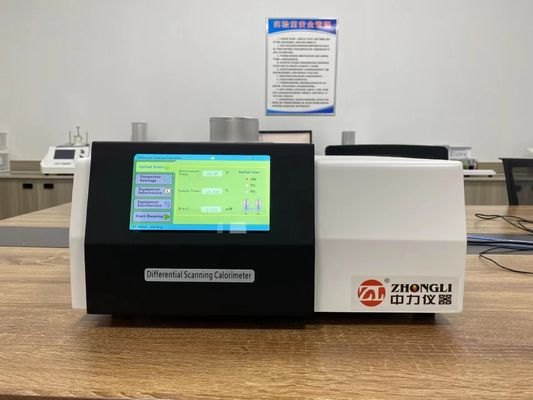

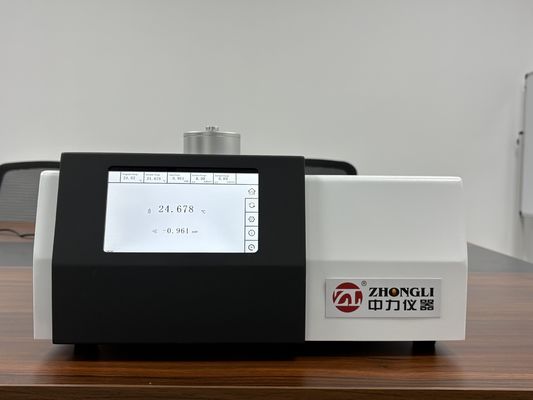

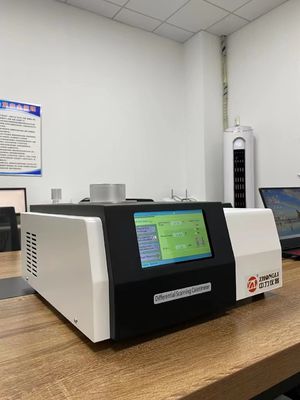

Large Image : DSC-100 Differential Scanning Calorimeter Differential Scanning Calorimetry

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3047A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO 11357 Plastics Differential Scanning Calorimetry DSC Differential Scanning Calorimeter will be Packaged in wooden case （fumigation free）
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	DSC-100 Differential Scanning Calorimeter Differential Scanning Calorimetry	Model:	ZL-3047A
Temperature Range:	Room Temperature～600℃/-40～600℃ / -170～600℃	Temperature Resolution:	0.01℃ Or 0.001℃
Temperature Fluctuation:	±0.1℃ Or ±0.001℃	Temperature Repeatability:	±0.1℃ Or ±0.01℃
Heating Rate/ Cooling Rate:	0.1～100℃ /min Or 0.1～100℃/min/0.1～40℃ /min	Customized:	Can Be Customized
Warranty Period:	2 Years
Highlight:	DSC-100 differential scanning calorimeter , differential scanning calorimetry machine , rubber testing calorimeter with warranty

DSC-100 Differential Scanning Calorimeter

The DSC-100 Differential Scanning Calorimeter is a precision instrument designed for thermal analysis of materials. This heat flow type differential scanning calorimeter offers excellent repeatability and high accuracy, making it particularly suitable for specific heat measurements.

Instrument Overview

Differential Scanning Calorimetry (DSC) is widely used as both a routine quality testing tool and research instrument. The DSC-100 measures temperature and heat flow associated with thermal transitions within materials, providing critical data for material characterization.

Key Applications

Glass transition temperature measurement of polymer materials
Cold crystallization and phase transition analysis
Melting and crystallization behavior studies
Product stability and shelf-life assessment
Curing and crosslinking reaction monitoring
Oxidation induction period determination
Polymer material curing reaction temperature and thermal effect measurement

Measurement Principle

Samples and reference materials are placed in separate crucibles within the furnace and subjected to programmed heating. When sample and reference heat capacities are identical and no thermal effects occur, the temperature difference remains near zero, producing a smooth baseline curve. Thermal effects in the sample create temperature differences, with upward peaks indicating exothermic reactions and downward peaks representing endothermic processes.

Technical Specifications

Parameter	ZL-DSC100A	ZL-DSC300	ZL-DSC300C	ZL-DSC300L
Temperature Range	Room temperature～600℃	-40～600℃	-170～600℃	-170～600℃
Temperature Resolution	0.01℃	0.001℃	0.001℃	0.001℃
Temperature Fluctuation	±0.1℃	±0.001℃	±0.01℃	±0.01℃
Temperature Repeatability	±0.1℃	±0.01℃	±0.01℃	±0.01℃
Heating/Cooling Rate	0.1～100℃/min	0.1～100℃/min	0.1～100℃/min	0.1～40℃/min
DSC Range	0~±600mW	0~±800mW	0~±600mW	0~±600mW

General Specifications

DSC Accuracy: 0.01mW
Power Supply: AC220V/50Hz or customized
Gas Flow Rate: 0～200mL/min
Gas Pressure: ≤0.5mPa
Display: 24-bit color, 7-inch LCD touch screen
Data Interface: Standard USB interface
