ISO3582 ASTMD4986 Horizontal and Vertical Burning Tester Flammability Testing Machine Flame Tester

Large Image : ISO3582 ASTMD4986 Horizontal and Vertical Burning Tester Flammability Testing Machine Flame Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3028

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO3582 ASTMD4986 Horizontal and Vertical Burning Tester Flammability Testing Machine Flame Tester will be Packaged in wooden case （fumigation free）
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	ISO3582 ASTMD4986 Horizontal And Vertical Burning Tester Flammability Testing Machine Flame Tester	Model:	ZL-3028
Inner Volume Of The Box:	≥0.5 Cubic Meters	Flame Application Time:	0 ~ 99 Minutes And 99 Seconds
Afterflame Time:	0 ~ 99 Minutes And 99 Seconds	Burning Angle:	20°, 45°, 90°(ie 0°) Adjustable
Power Supply:	AC 220V, 50Hz	Brand:	ZL
Highlight:	horizontal vertical flammability tester , ISO3582 flame testing machine , ASTMD4986 rubber flammability tester

ISO3582 ASTMD4986 Horizontal and Vertical Burning Tester Flammability Testing Machine Flame Tester

Product Overview

ISO3582 ASTMD4986 Horizontal and Vertical Burning Tester Flammability Testing Machine Flame Tester

Compliance Standards

UL94
GBT2408

Technical Description

The Horizontal Vertical Flame Tester is designed to test and assess the burning characteristics of plastic materials according to American UL94 standard and GBT2408. This instrument evaluates flammability grades including V-0, V-1, V-2, HB, 5V, HF-1, HF-2, and HBF for plastic parts used in equipment and instruments. Equipped with gas flowmeter for precise flame size adjustment, the system offers simple and safe operation.

Technical Specifications

Model	ZL-3028
Box Volume	≥0.5 cubic meters, with glass viewing door
Timer	High-precision timer, adjustable 0-99 minutes and 99 seconds, accuracy ±0.1 seconds
Control System	PLC + touch screen automatic control and manual control
Print Function	Automatic data printing
Flame Time	0-999.99 S adjustable
Residual Flame Time	0-999.99 S adjustable
Residual Burning Time	0-999.99 S adjustable
Test Gas	≥98% methane / 37MJ/m³ natural gas (customer-owned)
Burning Angle	20°, 45°, 90° (0°) adjustable
Burner Dimensions	Ø 9.5±0.3 mm inner diameter nozzle, 100±10 mm effective length, with air conditioning holes
Flame Height	20mm to 175mm adjustable according to standard requirements
Flowmeter	105ml/min standard
Additional Features	Lighting device, pumping device, gas flow regulating valve, pressure gauge, pressure regulating valve, flow meter, U-shaped pressure gauge, and sample fixture
Optional Devices	Air extraction device and combustible gas leakage alarm device
Power Supply	AC 220V±10% 50HZ

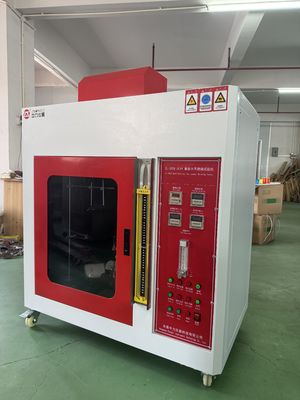

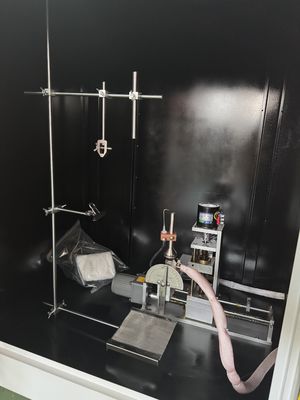

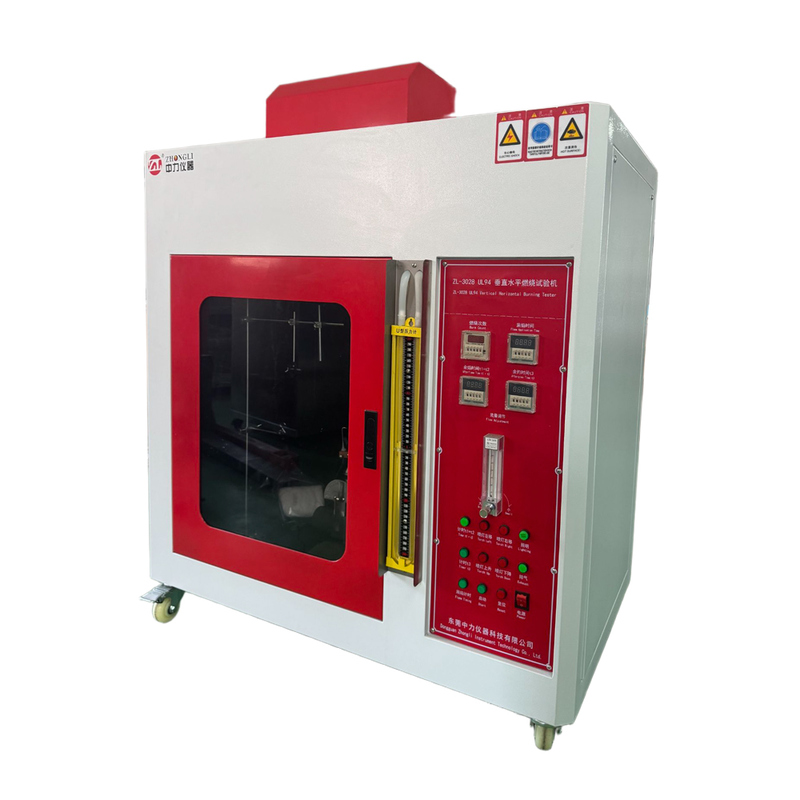

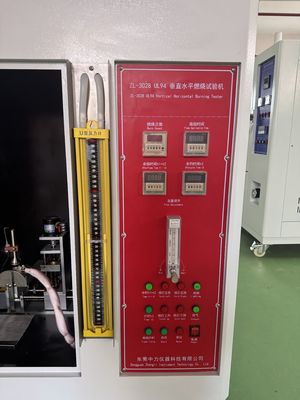

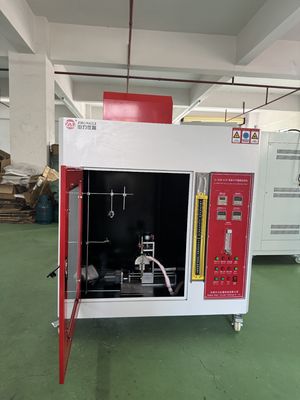

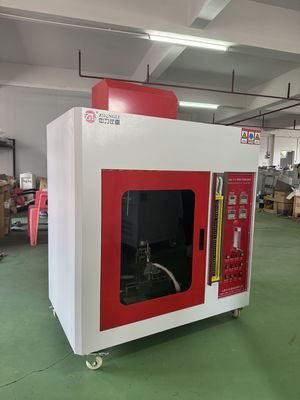

Product Image
