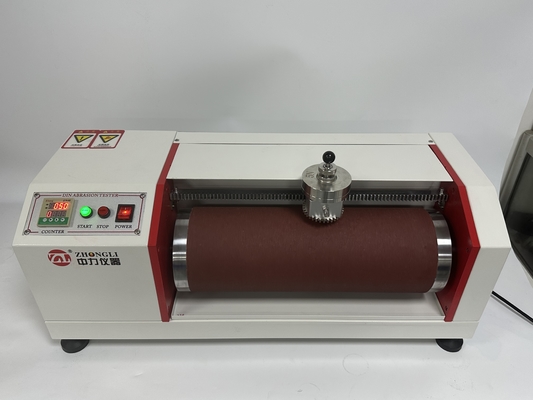

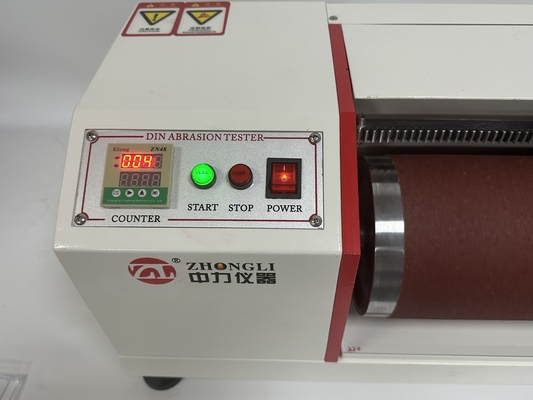

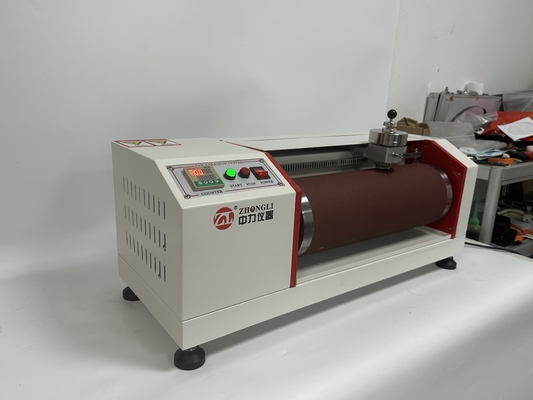

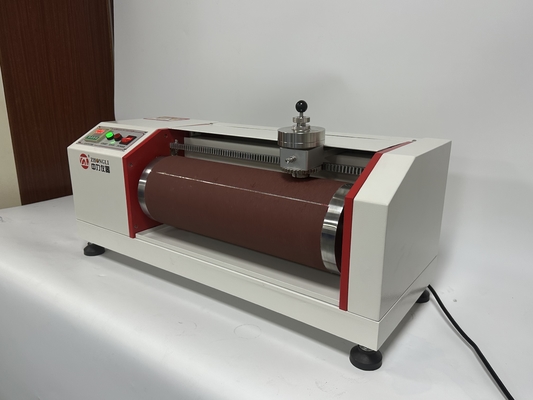

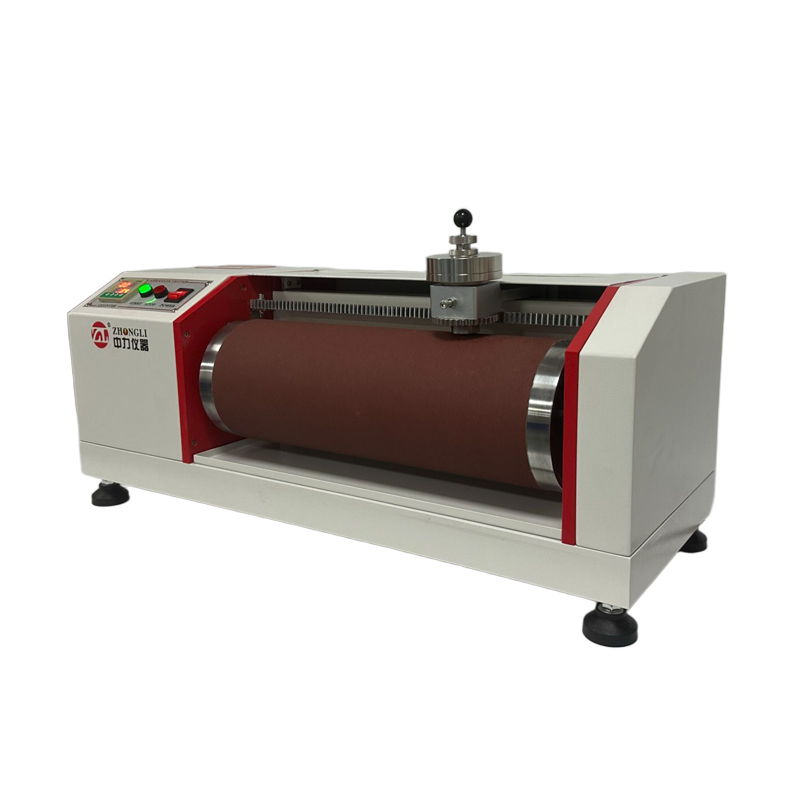

DIN 53516 ISO 4649 DIN Abrasive Tester

Large Image : DIN 53516 ISO 4649 DIN Abrasive Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO , CE
Model Number:	ZL-3004

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	DIN 53516 ISO 4649 DIN Abrasive Tester is Packaged within safety wooden case (fumigation free）
Delivery Time:	3-7 Days
Payment Terms:	T/T,Western Union,L/C
Supply Ability:	100 SET / MONTH

Contact Now

Detailed Product Description

Name:	DIN 53516 ISO 4649 DIN Abrasive Tester	Roller Diameter:	φ150mm
Roller Length:	460 Mm	Roller Speed:	40rpm
Abrasion Stroke:	40 Mm (20 Mm)	Abrasion Speed:	0.32 M/sec
Inclination:	3°	Test Piece Diameter:	φ16 Mm
Thickness:	6~15mm
Highlight:	DIN abrasive tester for rubber , ISO 4649 rubber testing machine , DIN 53516 abrasion tester

DIN 53516 ISO 4649 DIN Abrasive Tester

Equipment Overview

The DIN Abrasive Tester evaluates material wear resistance by rubbing test piece surfaces with specific sandpaper over defined distances. It measures surface wear conditions, weight loss, volume loss, wear thickness, and compares results against standard references to assess material durability.

Primary Applications

Abrasion testing of elastic materials, rubber compounds, and tires
Performance evaluation of conveyor belts and transmission belts
Testing shoe soles, soft synthetic leather, and genuine leather
Characterized by high efficiency, excellent reproducibility, and user-friendly operation

Compliance Standards

DIN-53516 | ISO-4649 | GB/T9867-88

Industry Applications

Widely used in footwear manufacturing, rubber industry, research laboratories, quality inspection arbitration, technical supervision departments, and leather product performance testing.

Technical Specifications

Roller Diameter	φ150mm
Roller Length	460 mm
Roller Speed	40rpm
Abrasion Stroke	40 mm (20 mm)
Abrasion Speed	0.32 m/sec
Inclination	3°
Test Piece Diameter	φ16 mm
Thickness	6~15mm
Test Load	5N, 10N
Fixture Lateral Displacement	4.2 mm/roller per circle
