Pneumatic Small Vertical Injection Molding Machine

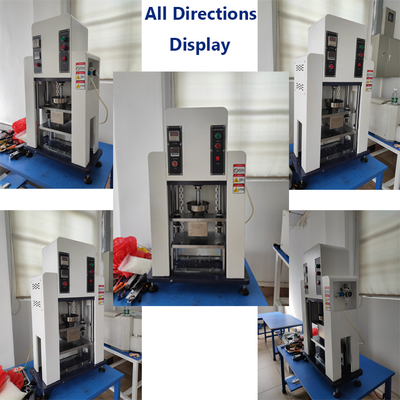

Large Image : Pneumatic Small Vertical Injection Molding Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3059D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Pneumatic Small Vertical Injection Molding Machine is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Pneumatic Small Vertical Injection Molding Machine	Temperature Range:	RT〜450℃（±3℃）【Max450℃】
Plunger Diameter [mm:	1	The Maximum Compression Stroke [About Mm:	1
Heating Chamber Size [About Mm:	1	Maximum Injection Volume [Approx.:	1
Injection Pressure:	1T,2T
Highlight:	small vertical injection molding machine , pneumatic injection molding machine , vertical rubber testing machine

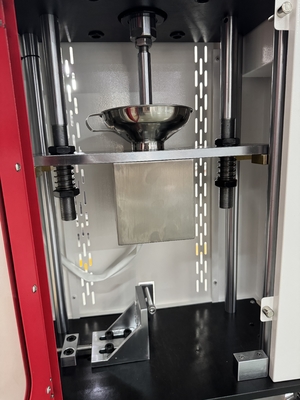

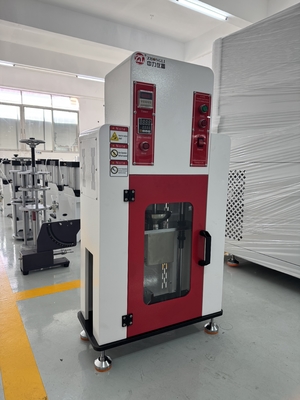

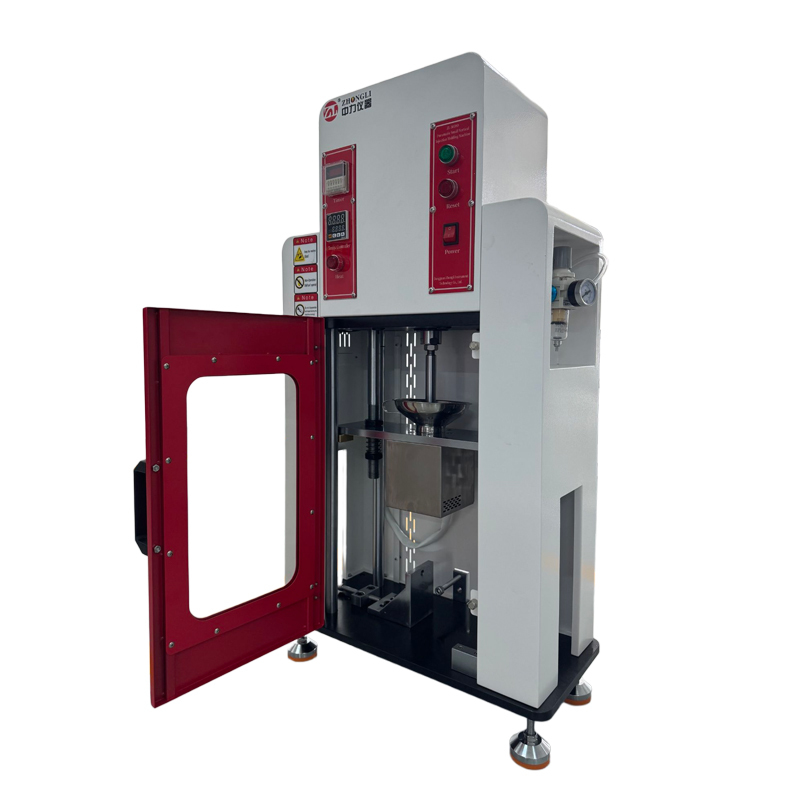

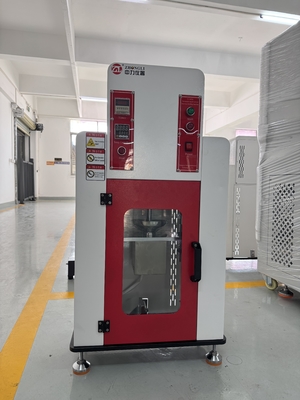

Pneumatic Small Vertical Injection Molding Machine

Professional Injection Molding Solution

This pneumatic vertical injection molding machine provides efficient and precise molding capabilities for small-scale production and prototyping applications.

Machine Overview

The injection molding machine is a comprehensive mechanical system comprising multiple integrated components including injection system, mold clamping system, pressure transmission system, electrical control system, lubrication system, heating and cooling system, and safety monitoring system.

Advanced Injection System

Featuring a sophisticated injection mechanism, this machine ensures precise plastic heating and plasticization within specified time cycles. The molten plastic is injected into mold cavities under controlled pressure and speed using advanced screw technology.

Technical Specifications

Specification	ZL-3059D-20	ZL-3059D-40	ZL-3059D-60
Temperature Range	RT-450℃ (±3℃) [Max 450℃]
Plunger Diameter [mm]	25mm	35mm	45mm
Maximum Compression Stroke [mm]	150mm
Heating Chamber Size [mm]	25 * 110	35 * 110	45 * 110
Maximum Injection Volume [g]	20g	40g	60g
Injection Pressure	1T	1T	2T
Injection Time	0-9999s [Programmable]
Maximum Mold Installation Size [mm]	200 * 160 * 210	200 * 200 * 210	210 * 200 * 210
Machine Weight [kg]	35kg	55kg	65kg
Power	800W	1000W	1200W
Voltage	220V / 60HZ
Gas Source	0.6MPa
Control Method	Pneumatic
Dimensions [mm]	550 * 600 * 1300	600 * 660 * 1400	650 * 660 * 1550

Key Features

Removable mold cavity design prevents material cross-contamination
Comprehensive safety protection with protective door system
Optional safety grating available (quotation required)
Precise temperature control with ±3℃ accuracy
Programmable injection timing for flexible operation
