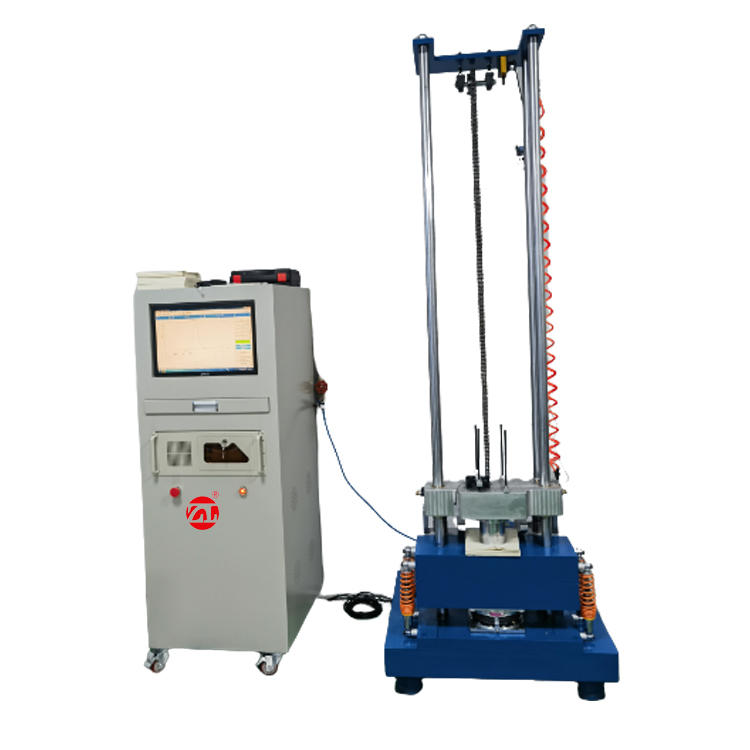

ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine

Large Image : ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2823D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine is packaged within wooden case.
Delivery Time:	30 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine	Working Platforms:	350×350 Mm
Max. Load:	30KG	Maximum Impact Height Range:	1200mm
Peak Acceleration:	20-1500g	Pulse Duration:	0.5—30ms
Voltage:	AC220V 50Hz	Power:	1.5kw
Highlight:	ISO 16750 shock testing system , accelerated shock test equipment , mechanical shock test machine

ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine

Description:

Mainly suitable for impact testing of electronic products, aerospace, ships, military, automotive components, transportation and other fields. It can be used with waveform generator for half-sine wave impact test.

Meet standards:

GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E and other test standards.

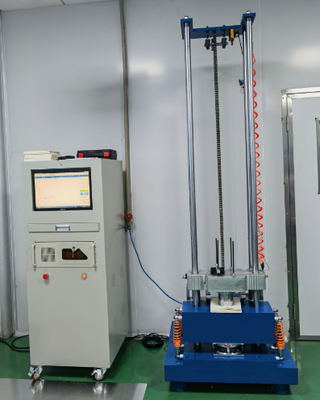

ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine 0

Technical Parameter:

Working Platforms	350×350 mm
Worktop material	High strength, high quality aluminium alloy
Max. load	30kg
Maximum impact height range	1200mm
Peak acceleration	20—1500 g
Pulse duration	0.5—30ms
Machine size	1100 × 800 × 2450mm
N.W.	About 1350 kg
Voltage	AC220V 50Hz
Power	1.5KW
Measurement systems
Input channels	2
Sampling frequency	192KHz
Input form	Voltage, charge
Voltage range	-10V--+10V
Coupling method	AC,DC,ICP
Shock waveform	Half Sine
Communication interface	USB 2.0
Standard support	National Standard, National Military Standard, US Military Standard, User Defined Standard
Operating systems	Microsoft Windows7/10
System accelerometers
Output method	Electric charge type
Sensitivity	3.93pC/g
Frequency range	0.5—12KHz
Acceleration range	±2500g
Operating environment	-40~+160℃
Other
Power supply	Single phase,220V±10％
Compressed air	0.5—0.8Mpa
Temperature	RT～40℃
Humidity	25℃＜85RH％

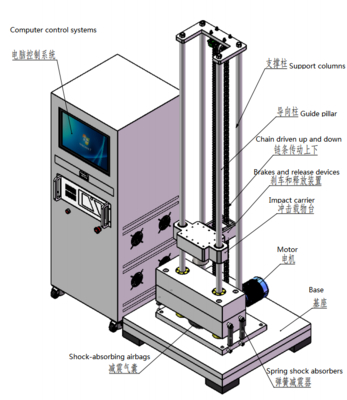

ISO 16750 Shock Testing System Accelerated Shock Test Equipment Mechanical Shock Test Machine 1

Equipment performance:

The main introduction of the impact machine

1. Working platform: High strength imported aluminium alloy working platform.

2. Lifting mechanism: motor driven ball screw lifts the working platform.

3. Lifting height control: The lifting height is measured by the photoelectric encoder assembly installed on the base, the photoelectric encoder measurement has high precision, strong anti-interference ability and high reliability, which ensures the repeatability of the impact.

4. Braking system: using pneumatic brake and strong friction brake to prevent secondary impact braking function, preventing secondary rebound

5.Buffer system: effectively reduce the impact of the impact test on the ground, the design of the self-buffer system, consisting of base, damper, air bag.
