Precision Automatic Water Drop Angle Tester Contact Angle Measuring Instrument

Large Image : Precision Automatic Water Drop Angle Tester Contact Angle Measuring Instrument

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2823D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Precision Automatic Water Drop Angle Tester Contact Angle Measuring Instrument is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Precision Automatic Water Drop Angle Tester Contact Angle Measuring Instrument	Dimension:	840mm(L)×480mm(W)×720mm(H)
Platform Size:	120mm×180mm	Maximum Specimen:	250×∞×60mm
Maximum Image:	5000(H) X 4000(V)	Maximum Frame Rate:	200fps (upgradable To Higher Frame Rates)
Focal Length:	130mm±5mm (zoom Adjustment)	Magnification:	10x
Highlight:	automatic contact angle measuring instrument , precision water drop angle tester , rubber testing machine with warranty

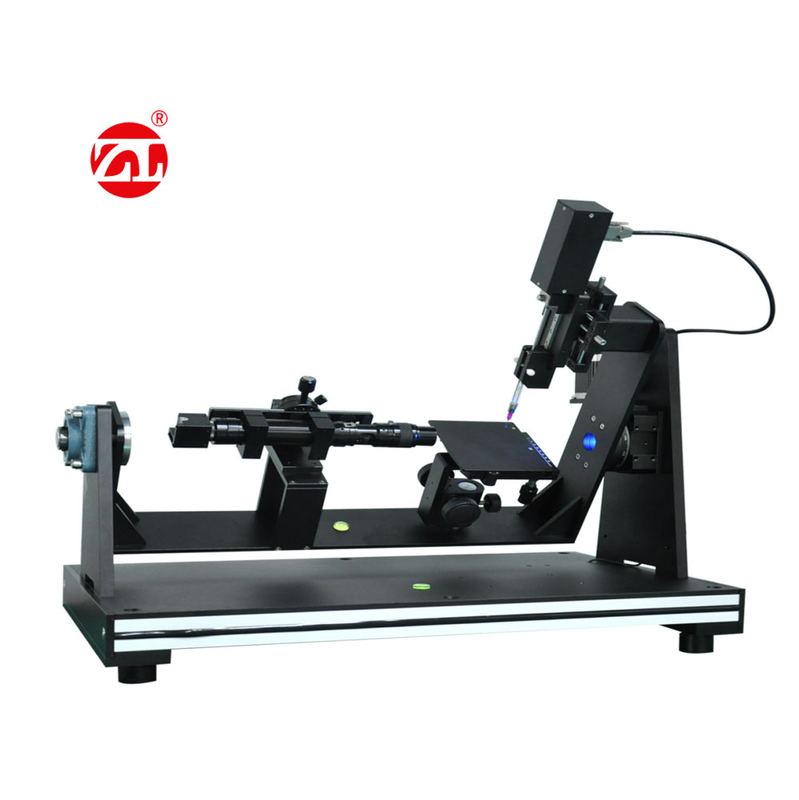

Precision Automatic Water Drop Angle Tester Contact Angle Measuring Instrument

The Precision Automatic Water Drop Angle Tester is a sophisticated contact angle measuring instrument designed for accurate measurement of liquid contact angles on solid surfaces. This equipment evaluates the wettability characteristics of various materials, providing essential data for quality control and research applications.

Applications & Industries

This contact angle measurement system serves critical roles across multiple industries including petroleum, printing and dyeing, pharmaceuticals, paints, and mineral processing. The instrument supports both scientific research and production quality control applications.

Technical Specifications

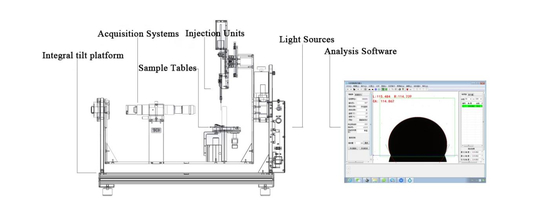

Device Host

Dimension	840mm(L)480mm(W)720mm(H)
Main Machine Weight	26KG
Adjustment Of The Whole Machine	Whole machine level test/adjustment

Power Supply

Voltage	100～240VAC
Power	150W
Frequency	50/60HZ

Working Space

Platform Size	120mm*180mm
Maximum Specimen	250∞60mm
Sample Stage Adjustment	Three-dimensional manual adjustment (can be upgraded automatically)

Front and back adjustment manually, stroke 60mm, accuracy 0.1mm
Left and right adjustment manually, stroke 35mm, precision 0.1mm
Up and down adjustment manually, travel 80mm, accuracy 0.1mm

Camera System

Maximum Image	5000(H) x 4000(V)
Maximum Frame Rate	200fps (upgradable to higher frame rates)
Sensor	SONY 1/1.8"
Spectrum	B&W/color
ROI	Custom
Display Line Width	Custom
Exposure Time	Custom
Power Supply	5 VDC USB Interface
Transmission	USB3 Vision

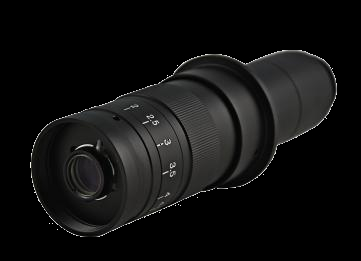

Microscope Head

Focal Length	130mm±5mm (zoom adjustment)
Magnification	10x
Angle Of View Adjustment	±10°
Resolution Scale	4~14um
Acquisition System Adjustment	Overhead/upward/horizontal view
