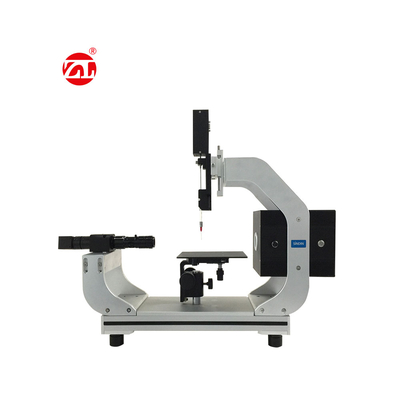

ISO 15989 ASTM D5946 Contact Angle Goniometer for Plastics Film and Sheeting Corona Treated Polymer Film

Large Image : ISO 15989 ASTM D5946 Contact Angle Goniometer for Plastics Film and Sheeting Corona Treated Polymer Film

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2823B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO 15989 ASTM D5946 Contact Angle Goniometer for Plastics Film and Sheeting Corona Treated Polymer Film is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ISO 15989 ASTM D5946 Contact Angle Goniometer For Plastics Film And Sheeting Corona Treated Polymer Film	Type:	Scientific Research Type
Size (LWH):	760200640mm	Experiment Platform:	160*200mm
Platform Movement Range:	603580mm	Lens Front And Rear Adjustment:	30mm
Lens Tilt Adjustment:	±10°	Zoom:	±3mm
Highlight:	ISO 15989 contact angle goniometer , ASTM D5946 polymer film tester , corona treated plastic film analyzer

ISO 15989 ASTM D5946 Contact Angle Goniometer for Plastics Film and Sheeting Corona Treated Polymer Film

Principle:

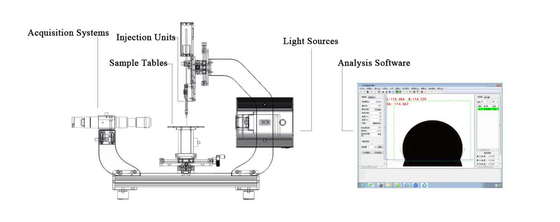

As shown above, the contact angle measuring instrument is mainly composed of five major parts: light source, injection unit, sample tables, acquisition system and analysis software, and the equipment adopts the principle of optical imaging.

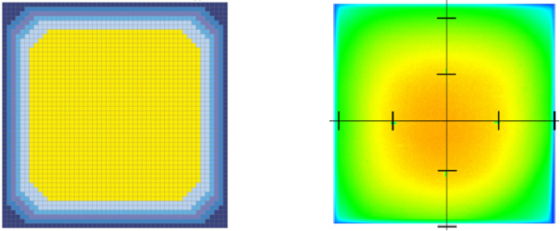

Light source adopts intensive LED cold light design, uniform luminescence, image cleaning and long life;

Injection unit adopts high-precision syringe pump for liquid feeding, controlled by software with quantitative and fixed speed, stable drops and accuracy up to 0.01 µl;

Sample tables adopts three-dimensional manual fine adjustment platform, flexible operation, accurate positioning, sample stage can be customized according to the actual sample size

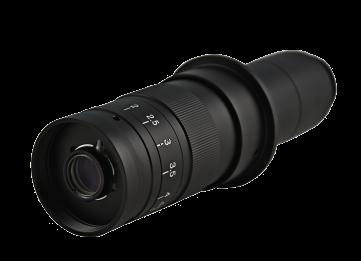

The acquisition system adopts black and white imported CCD camera, with stable shooting, clear and reliable images, the lens adopts German industrial grade imported configuration, adjustable 0.7-4.5 times magnification, imaging without distortion and distortion;

The analysis software is powerful and has the ability of one-key automatic fitting, with the most leading international fitting method, to meet the accurate fitting of various droplet forms.

Specifications:

Equipment Specifications
Equipment Mainframe
Dimension	800mm(L)×190mm(W)×640mm(H)
Weight	16KG
Adjustment of The Whole machine	Whole machine level test/adjustment
Power Supply
Voltage	100～240VAC
Power	50W
Frequency	50/60HZ
Space
Platform Size	160mm×200mm
Maximum Specimen	280×∞×60mm
Sample Table Adjustment	Three-dimensional manual adjustment (upgradeable to automatic)
Sample Table Adjustment	Front and rear adjustment Manual, 60mm travel, 0.1mm accuracy Left/right adjustment manual, 35mm travel, 0.1mm accuracy Up and down adjustment manual, 80mm travel, 0.1mm accuracy
Camera Systems
Maximum Image	5000(H) x 4000(V)
Maximum Frame rate	200fps (upgradable to higher frame rates)
Sensor	SONY 1/1.8"
Spectrum	B&W/color
ROI	Custom
Display Line Width	Custom
Exposure Time	Custom
Power Supply	5 VDC USB Interface
Transmission	USB3 Vision
Microscope Head
Focal Length	130mm±5mm (zoom adjustment)
Magnification	10x
Angle Of Vie Adjustment	±10°
Resolution Scale	4～14um
Acquisition System Adjustment	Downward/upward/level view
Light Source
Type	Single wavelength industrial LED (cold light)
Wavelength	470nm
Light Field	φ50mm
Light Point	96 grains intensive type
Lifetime	50000Hour
Injection System
Drip Method	Precision micro syringe pumps
Control Method	Software digital control
Drip Accuracy	0.01μl
Syringe	High-precision gas-tight syringe
Volume	100μl/500μl/1000μl (500μl standard)
Needle	0.51mm all stainless steel superhydrophobic needle (standard)
Speed	1μL/min ～2000μL/min
Software
Contact Angle Range	0～180°
Resolution	0.01°
Contact Angle measurement method	Fully automatic, semi-automatic, manual
Analysis Method	Hanging drop method, stop-drop method (2/3 state), bubble capture method, seat-drop method, seat-needle method, insert plate method
Analysis Method	Static analysis, automatic liquid increase and reduction dynamic analysis, wetting dynamic analysis, real-time analysis, bilateral analysis, forward and backward angle analysis
Test Method	Circle method, ellipse/slanting ellipse method, differential circle/differential ellipse method, Young-lapalace, wide-height method, tangent method, interval method

ISO 15989 ASTM D5946 Contact Angle Goniometer for Plastics Film and Sheeting Corona Treated Polymer Film 1
