LD 16 1 Twin Screw Laboratory Extrusion Pelletizer For Small Scale Production

Large Image : LD 16 1 Twin Screw Laboratory Extrusion Pelletizer For Small Scale Production

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3017D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Laboratory Mini Desktop Twin Screw Extruder Twin Screw Laboratory Extrusion Pelletizer will be packed in wooden case
Delivery Time:	15-20 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Name:	Laboratory Mini Desktop Twin Screw Extruder Twin Screw Laboratory Extrusion Pelletizer	Model:	ZL-3017D
Screw Diameter:	Taper 16*2pcs	Designed Output:	0.1-3KG/h
Extruder Size:	0.70.20.5m	Weight:	50KG
Extrusion Center Height:	300MM	Motor Power:	750W
LD:	16:1
Highlight:	LD 16 1 Laboratory Extrusion Pelletizer , Twin Screw Laboratory Extrusion Pelletizer , Small Scale Production Laboratory Extrusion Pelletizer

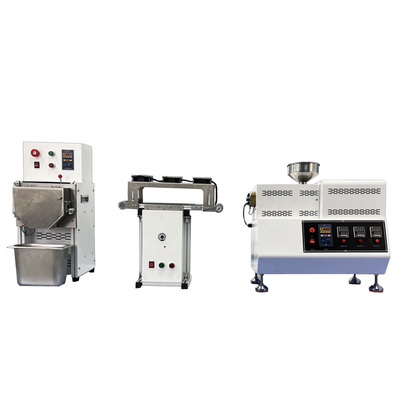

Laboratory Mini Desktop Twin Screw Extruder Twin Screw Laboratory Extrusion Pelletizer

I. Equipment overview:

Product performance of laboratory small twin-screw extruder:

*Professionally manufactured screw and barrel with high processing precision and quality assurance.

* Brand motor drive, screw speed control is stable and reliable.

* Adjustable particle size and thickness of materials in the screw to fully get plasticized and mixed.

Applications of laboratory small twin-screw extruder:

* Material melting, plasticizing extrusion

* Optimization of extrusion process parameters

* Organization of small-scale experimental lines for film, sheet, pipe, pelletizing, etc.

II. Equipment parameters:

Model	ZL-3017D
Screw diameter	Taper 16*2pcs
Designed output	0.1-3KG/h
Extruder size	0.70.20.5m
Weight	50kg
Extrusion center height	300mm
Extrusion direction	Right → out to the left
Motor power	750w
Voltage	220V 50HZ [three-plug plug]
LD	16:1
Heating temperature	Normal temperature -350℃/450℃ [quotation subject]
Warming time	Normal temperature -350 degrees/30min
Temperature control accuracy	±1℃
Temperature fluctuation	±2.5℃
Cooling method	Three-zone air-cooled active zone cooling
Applicable raw materials	PP,PC, PVCABS, PE, PA6, PS, PEI, PIMMA, POM, TPU, PTE, PEEK, etc.
Feeding area with silent cooling device [air-cooled or water-cooled optional offer subject to].
Screw barrel material	38Crmola,Nitrided treatment
Space occupied	Length 1.5mWidth 500mmHeight 500mm 【Extruder + air-cooling device + haul-off and pelletizing device】
