Summarize

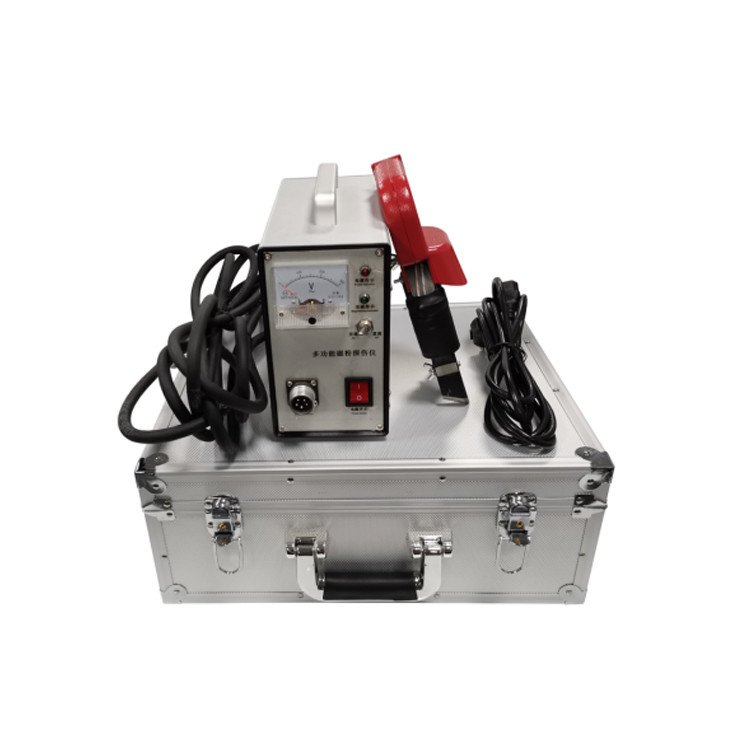

Model ZL-YW601C is a magnetic particle flaw detector that uses a magnetic yoke to magnetize ferromagnetic workpieces with AC and DC magnetization. It can magnetize various parts, including local magnetization for large parts, and can be used as an additive method of magnetic flaw detection and remanent magnetization method of magnetic flaw detection.
The instrument utilizes SCR to form a non-contact switch with low noise and long life. The instrument is small in size, light in weight, with large lifting force and adjustable joints, especially suitable for flat weld, fillet weld, pressure vessel, pipeline and the detection of complex shaped parts. The output of the instrument is low voltage, which is more suitable for the occasions where high voltage is not allowed to enter the equipment for flaw detection.
The flaw detector has AC and DC magnetization function. It can be equipped with A-type, D-type, E-type and O-type probes. The machine can be DC full-wave rectification magnetization, AC magnetization can detect deeper defects from the surface.
Technical indicators
| Item |
ZL-YW601C |
| Input Voltage |
AC 220V ± 10%V |
| Output Voltage |
AC 36V |
| Output current |
＞10A |
| Lifting force |
A type probe AC ≥ 44N (4.5kg), DC ≥ 177N (18.1 kg);
D-type probe AC ≥ 44N (4.5kg), DC ≥ 177N (18.1 kg);
Type E probe AC ≥ 118N (12 kg)
|
| Temporary load rate |
50% |
| Detection sensitivity |
A type 1 # test piece display clearly |
| Dimension of main unit |
230×160×120mm (L×H×W) |
| Weight |
5㎏ |
| Magnetizing Pole Pitch |
A type probe, for 0～200mm, adjustable;
- type probe, 150mm for fixed type,
- 0～240mm adjustable with live joint;
E-type probe two adjacent probe core center distance is
95×100mm;
O-type probe inner diameter of φ150mm
|
| Magnetization mode |
Two types of magnetization: AC and DC |
Structural Characteristics:
The instrument adopts silicon controlled switch, low voltage output is safe and reliable, the probe adopts fixed and plus adjustable two kinds, adjustable probe can be adjusted according to the shape of different parts of the pole shoe spacing, and have good contact.
Operational Use:
Insert the round plug of the power cable into the three-core power socket of the instrument, and insert the single-phase plug of the cable into the socket of the power grid distribution board, (there must be a solid grounding wire) turn on the power switch of the instrument, and the indicator light will be on to show that the circuit has been connected to the power supply.
Insert the aviation plugs at both ends of the cable into the instrument socket and the probe socket respectively.
So that the probe and the surface of the workpiece to be explored contact good, press the magnetization button on the probe, magnetization indicator light, indicating that the workpiece has been magnetized.
Turn off the instrument power switch and the main switch on the grid distribution board when you stop using it.
Cautions:
When using the instrument, the probe and the workpiece being probed must be in good contact before pressing the magnetizing button, otherwise the current in the coil will increase and burn out the fuse, or even damage the SCR.
If you need to adjust the magnetic pole spacing, loosen the butterfly nut on the adjustable joint to change the magnetic pole spacing, and then tighten the nut to work.
