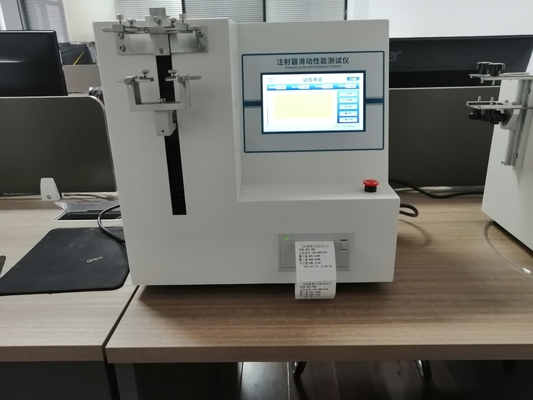

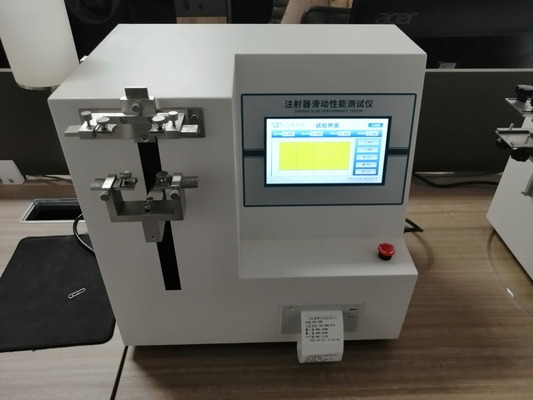

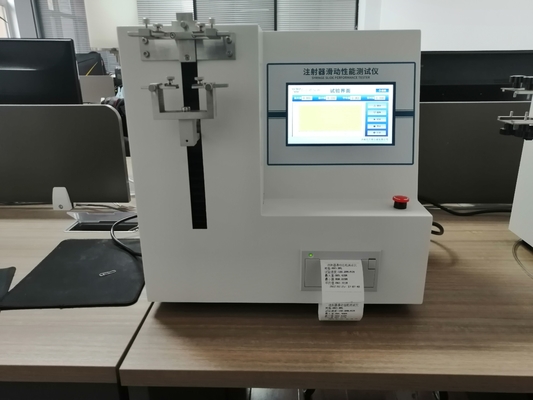

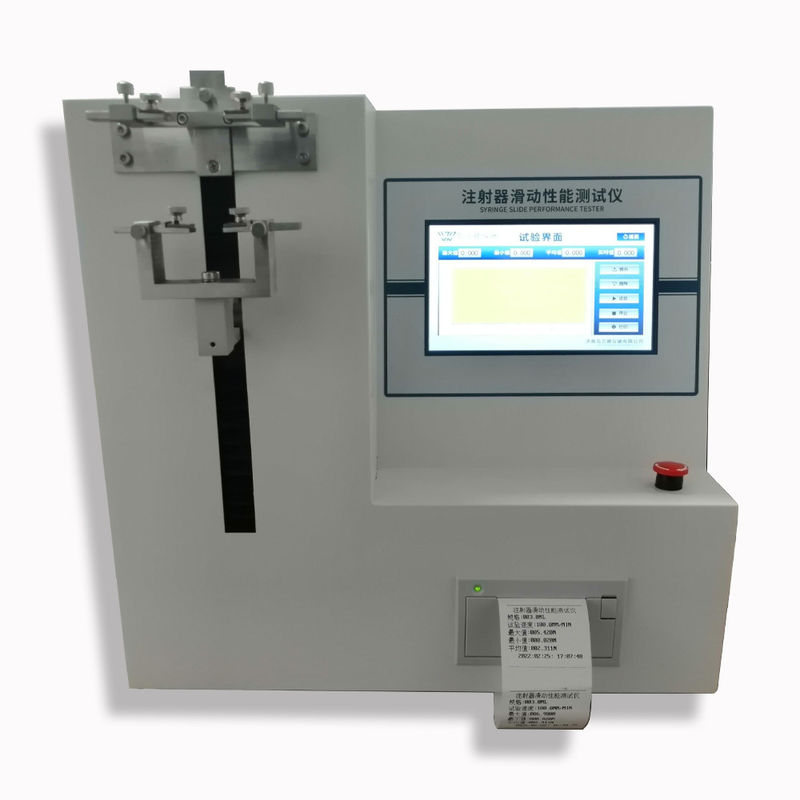

ISO 7886 Professional Colour Touch Screen Medical Syringe Slide Performance Tester

Large Image : ISO 7886 Professional Colour Touch Screen Medical Syringe Slide Performance Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3066

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO 7886 Professional Colour Touch Screen Medical Syringe Slide Performance Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	ISO 7886 Professional Colour Touch Screen Medical Syringe Slide Performance Tester	Force Range:	0N~100N
Accuracy:	Error ±1% Of Full Scale Value	Test Speed:	5~1000mm/min
Capacity:	0.1mL~100mL Any Choice	Test Time:	30±1s
Dimensions:	400mm(L)×290mm(W)×275mm(H)	NW:	15KG
Highlight:	ISO 7886 Slide Performance Tester , Medical Syringe Slide Performance Tester

ISO 7886 Professional Colour Touch Screen Medical Syringe Slide Performance Tester

●Feature:

◆7" professional colour touch screen.

◆English menu display: real time display of start force, average force, push back maximum force, push back minimum force and record graph of mandrel movement and force.

◆Selection of the nominal capacity of the syringe by the intelligent controller, automatic judgement of the test results and printing out of the test results by micro-printer.

●Testing Principle:

Fix the body of the syringe, apply a force to one end of the mandrel and test the test pull and test thrust of the mandrel against the body of the syringe at a certain speed.

●Testing Standards:

Conform to GB 15810-2019, ISO 7886-1, ISO8537-2016, YY0497-2018, YB00112004, etc.

●Application:

Suitable for determining the sliding properties of various syringes.

●Parameter:

Force Range	0N~100N
Accuracy	Error ±1% of full scale value
Test Speed	5~1000mm/min
Capacity	0.1mL~100mL any choice
Test Time	30±1s (waiting time from the end of pull test to the start of thrust test)
Dimensions	400mm(L)×290mm(W)×275mm(H)
NW	15kg

ISO 7886 Professional Colour Touch Screen Medical Syringe Slide Performance Tester 0
