Lab 3 Layer Co Extrusion Plastic Film Blowing Machinery For Pvc Pe Pp Aba

Large Image : Lab 3 Layer Co Extrusion Plastic Film Blowing Machinery For Pvc Pe Pp Aba

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3065

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Lab 3 Layer Co-Extrusion Plastic Film Blowing Machinery for Pvc Pe Pp Aba is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Lab 3 Layer Co-Extrusion Plastic Film Blowing Machinery For Pvc Pe Pp Aba	Classification:	Blown Film
The Overall Dimensions (LWH):	21006501900mm	Weight:	270KG (net Weight)
Electric Resource:	220V, 1PHASE, 50HZ	Plastic Raw Materials:	PE(except The Special Material)
Bowing Width:	100-150mm
Highlight:	Lab Film Blowing Machinery , 3 Layer Film Blowing Machinery , Aba Plastic Film Blowing Machinery

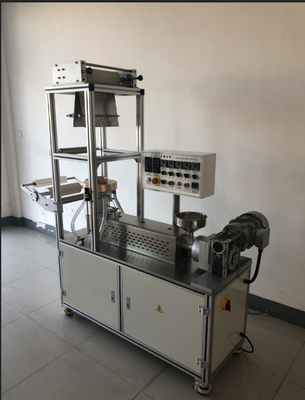

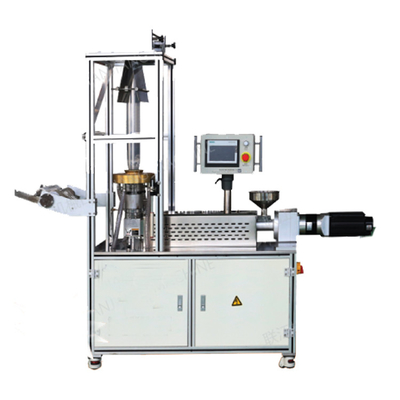

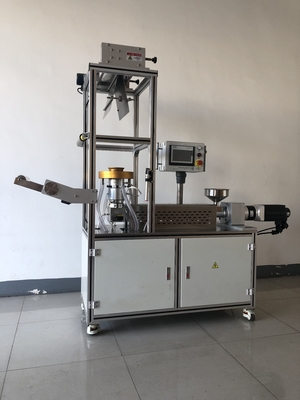

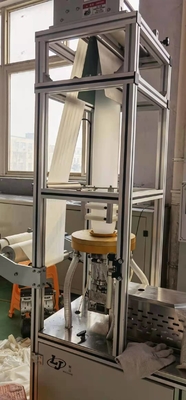

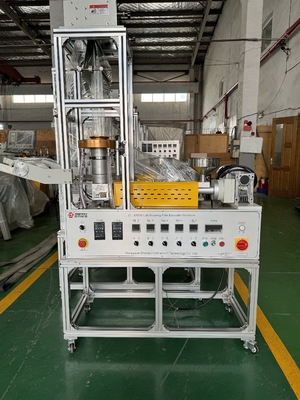

Lab 3 Layer Co-Extrusion Plastic Film Blowing Machinery for Pvc Pe Pp Aba

Description:

The national patented small laboratory blown film machine is suitable for the development of various new materials, the measurement of the dispersibility of color masterbatch, the optimization of production process parameters, and the study of the blown film forming properties of various materials. It is a scientific research, teaching demonstration, and production enterprise experiment. room use.

■Mould
Blown Film Type	Die up
Die Caliber	Φ30mm
Mould Structure	Spiral structure
Runner Processing	Internal and external electroplating-polishing treatment
Heating Method	Electric heating
■Blowing Machine
Blowing Width	100--150mm
Traction Roller Diameter	Φ 85mm
Traction Roller Length	300mm
Active Roller	Chrome roller
Passive Roller	Anti-static roller
Traction Roller Drive	Independent drive
Traction Motor	JSCC (German brand)
Frequency Converter	JSCC (German brand)
Traction Gearbox	High-precision gearbox--JSCC(German brand)

Lab 3 Layer Co Extrusion Plastic Film Blowing Machinery For Pvc Pe Pp Aba 0
