5 Layers Co Extrusion Blown PE Film Production Line Multi Layers Plastic Film Blowing Machine

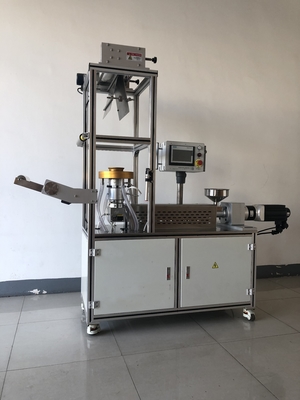

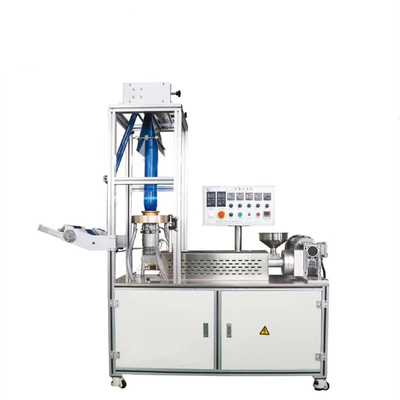

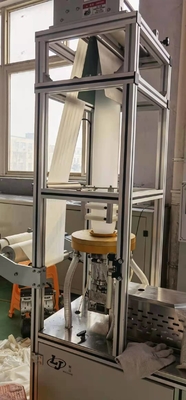

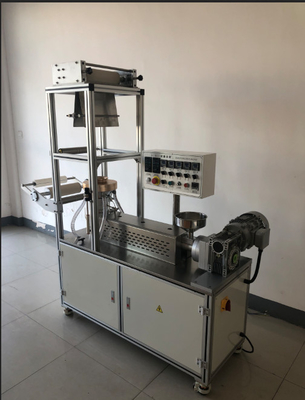

Large Image : 5 Layers Co Extrusion Blown PE Film Production Line Multi Layers Plastic Film Blowing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3065

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	5 Layers Co-Extrusion Blown PE Film Production Line Multi Layers Plastic Film Blowing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	5 Layers Co-Extrusion Blown PE Film Production Line Multi Layers Plastic Film Blowing Machine	Classification:	Blown Film
The Overall Dimensions (LWH):	21006501900mm	Weight:	270KG (net Weight)
Electric Resource:	220V, 1PHASE, 50HZ	Plastic Raw Materials:	PE(except The Special Material)
Bowing Width:	100-150mm
Highlight:	Co Extrusion Plastic Film Blowing Machine , 5 Layers Plastic Film Blowing Machine , Multi Layers Plastic Film Blowing Machine

5 Layers Co-Extrusion Blown PE Film Production Line

Multi-layer plastic film blowing machine designed for research, development, and production testing applications.

Product Overview

This nationally patented small laboratory blown film machine is engineered for developing new materials, measuring color masterbatch dispersibility, optimizing production process parameters, and studying the blown film forming properties of various materials. Ideal for scientific research, teaching demonstrations, and production enterprise laboratory use.

Operating Conditions

Electric Resource	220V, 1PHASE, 50HZ
Plastic Raw Materials	PE (except special materials)
Blowing Width	100-150mm
Capacity (Theoretical Value)	0.5-2.0kg/h
Minimum Single Usage	200g
Blowing Thickness	0.01-0.10mm
Whole Machine Control Method	PLC
Move Method	Fuma Wheel F60

Main Components Specification

SJ25/30 Single Screw Extruder

Barrel Screw Diameter	Φ25mm
Screw Length To Diameter Ratio	30:1
Barrel Screw Material	38CrMoAlA
Nitriding Depth	0.4~0.7mm
Surface Hardness	HV940~1050
Screw Surface Treatment	Hard chrome plated on the surface
Screw Structure	Double-pass mixing section - special screw structure to enhance plasticization
Barrel Heating Way	Electric heating
Screw Speed	10 ~ 60rpm
Motor Form	Dedicated servo motor
Motor Power	2300W
Speed Mode	Servo governor
Gearbox	Planetary gearbox
Speed Control	High precision 0.01RPM - digital input
Temperature Control	SSR
Way To Control	PI control
Barrel Temperature Control Area	3 Zone

Tag:

Contact Person: Ms. Fiona Zhong

Tel: +86 135 3248 7540

Fax: 86-0769-3365-7986
