Laboratory Plastic Film Blowing Machine Plastic Film Extruder Blown Film Extruder

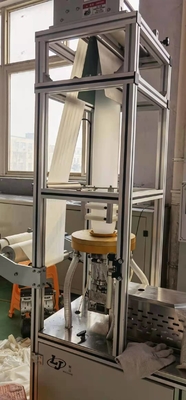

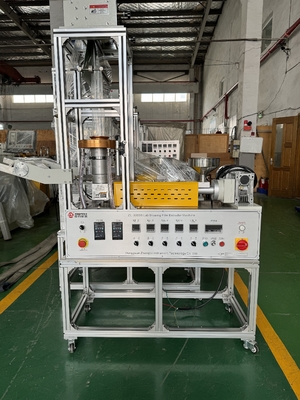

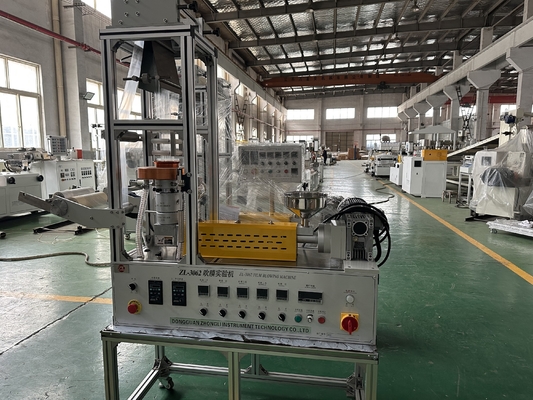

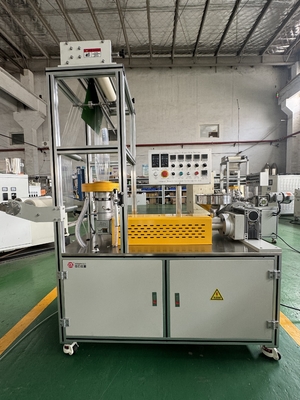

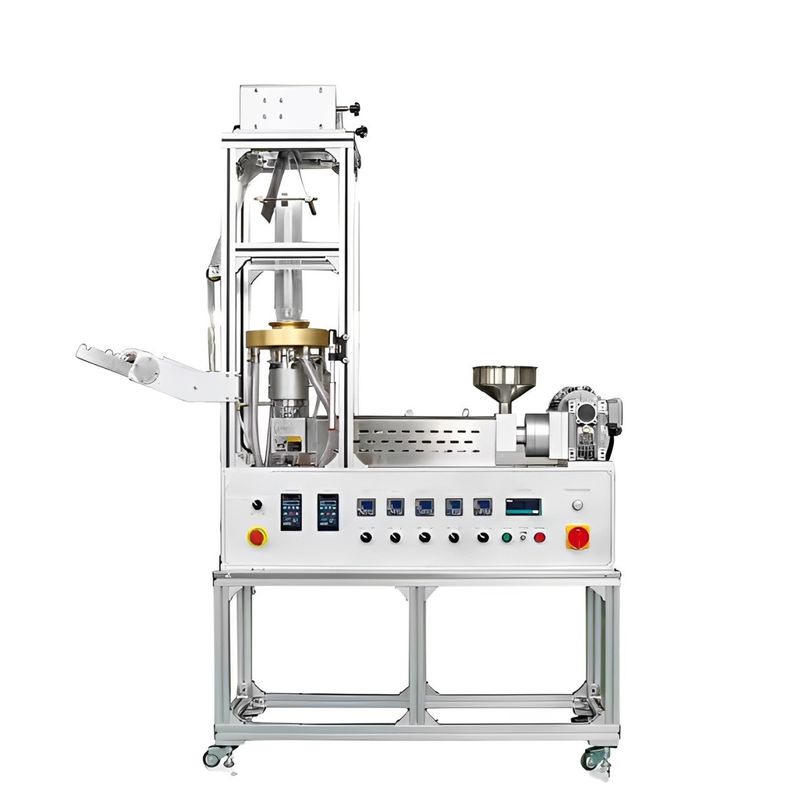

Large Image : Laboratory Plastic Film Blowing Machine Plastic Film Extruder Blown Film Extruder

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3065

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Laboratory Plastic Film Blowing Machine Plastic Film Extruder Blown Film Extruder is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Name:	Falling Weight Tube Type Powder Coating Paint Film Impact Tester	Classification:	Blown Film
The Overall Dimensions (LWH):	21006501900mm	Weight:	270KG (net Weight)
Electric Resource:	220V, 1PHASE, 50HZ	Plastic Raw Materials:	PE(except The Special Material)
Bowing Width:	100-150mm
Highlight:	Laboratory Film Blowing Machine , Plastic Film Blowing Machine , Laboratory Plastic Film Blowing Machine

Laboratory Plastic Film Blowing Machine

The national patented small laboratory blown film machine is designed for research and development applications, including new material development, color masterbatch dispersibility measurement, production process optimization, and blown film forming properties study.

Application Scope

Ideal for scientific research, teaching demonstrations, and production enterprise laboratory use.

Device Specifications

Specification	Details
Name	Laboratory film blowing machine
Model	ZL SCM25-PLC
Classification	Blown film
Overall Dimensions (LWH)	21006501900mm
Weight	270KG (net weight)
Total Power	8.0KW (approximately 5.0KW in actual use)
Patent Number	ZL2015 2 025 1205.7

Operating Conditions

Parameter	Specification
Electric Resource	220V, 1PHASE, 50HZ
Plastic Raw Materials	PE (except special materials)
Blowing Width	100-150mm
Capacity (Theoretical value)	0.5-2.0kg/h
Minimum Single Usage	200g
Blowing Thickness	0.01-0.10mm
Whole Machine Control Method	PLC
Move Method	Fuma Wheel F60
