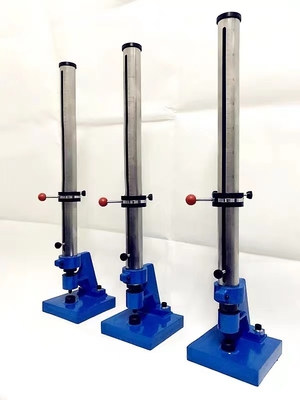

Falling Weight Tube Type Powder Coating Paint Film Impact Tester

Falling Weight Tube Type Powder Coating Paint Film Impact Tester
Falling Weight Tube Type Powder Coating Paint Film Impact Tester Falling Weight Tube Type Powder Coating Paint Film Impact Tester

Large Image :  Falling Weight Tube Type Powder Coating Paint Film Impact Tester

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3064
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Falling Weight Tube Type Powder Coating Paint Film Impact Tester is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Name: Falling Weight Tube Type Powder Coating Paint Film Impact Tester Maximum Impact Height: 50cm/100cm Optional; The Graduation Value Is 1cm
Weight Of Heavy Hammer: 1000g ± 1g Punch (Steel Ball) Diameter: 8mm
Impact Mold Seat Inner Hole Diameter: 15mm ± 0.3mm Curvature Radius Of Mold Base Edge: 2.5mm~3.0mm
Impact Depth: 2mm ± 0.1mm
Highlight:

Falling Weight Tube Type Impact Tester

,

Powder Coating Paint Film Impact Tester

Falling Weight Tube Type Powder Coating Paint Film Impact Tester





●Equipment Overview:

This is a simple, economical, and practical paint film impactor suitable for coating on tinplate with a thickness of less than 0.3mm or thin steel plate with a thickness of less than 0.55mm. It is designed according to GB/T 1732 and includes a special process oxidized graduated aluminum conduit (never rusts or fades), an 8mm diameter punch, a 1KG heavy hammer, and a base. The punch adopts a special process design, which will not fall off even under high intensity usage frequency.



●Main Technical Parameters:



Maximum Impact Height

50cm/100cm optional;

The graduation value is 1cm
Weight Of Heavy Hammer 1000g ± 1g
Punch (Steel Ball) Diameter 8mm
Impact Mold Seat Inner Hole Diameter 15mm ± 0.3mm
Curvature Radius Of Mold Base Edge 2.5mm~3.0mm
Impact Depth 2mm ± 0.1mm



Falling Weight Tube Type Powder Coating Paint Film Impact Tester 0
