250mm Film Width Laboratory Sheet Extrusion Machine With Adjustable Screw Rotation

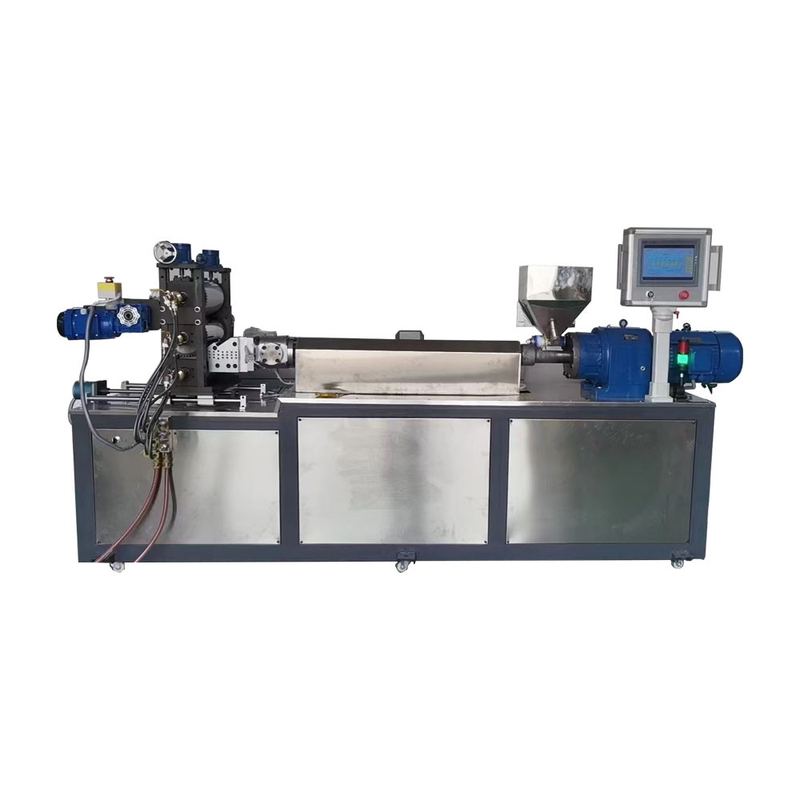

Large Image : 250mm Film Width Laboratory Sheet Extrusion Machine With Adjustable Screw Rotation

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3063

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Laboratory Sheet Extrusion Machine is packaged within wooden case.
Delivery Time:	20 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Laboratory Sheet Extrusion Machine	Applicable Materials:	PP PE PVC PS PET Etc.
Screw Diameters:	25mm Or Customized	Screw Rotating Speed:	0-95rpm (adjustable)
Temperature Range:	Room Temperature-300℃	Film Thickness:	0.03-0.5mm
Film Width:	250mm	Key Words:	Cast Film
Highlight:	Laboratory Sheet Extrusion Machine , 250mm Laboratory Sheet Extrusion Machine , Adjustable Laboratory Sheet Extrusion Machine

●Technical Parameters:

Main motor	2.2KW (with helical hard gear high torque click)
Traction motor:	0.75kw
Main motor inverter	2.2KW
Traction motor inverter	0.75KW
Voltage	380V
Screw diameter	¢30 (after deep nitriding, plating treatment)
Screw L/D ratio	1:32
Mode of screen changing	top plug type screen changing (standard)
Width of mold opening	180mm
Number and type of roll surface	3 mirror grade plating
Cooling method of roll surface	water can be passed through (leaving external interface, customers can directly external)
Drawing method	separate motor drawing
Total power	9KW
Machine size	L2260 * W650 * H1400 (unit:MM)

●Production parameters:
◆ Extrude the thickest:1.0-1.3mm (according to the density of the material, there will be differences)

◆ Extrusion thinnest: 0.2mm

◆ Extrusion width: 170-180mm (under the condition that the shrinkage rate of die mouth is within 10 percent)

◆ Applicable materials: PET PE PP PS ABS PC PLA TPO TPE similar material (If there are other special requirements, please communicate).

◆ Extruding amount per minute: 68.5 grams (Note: the test conditions for the material LDPE 4 motor 50HZ )
