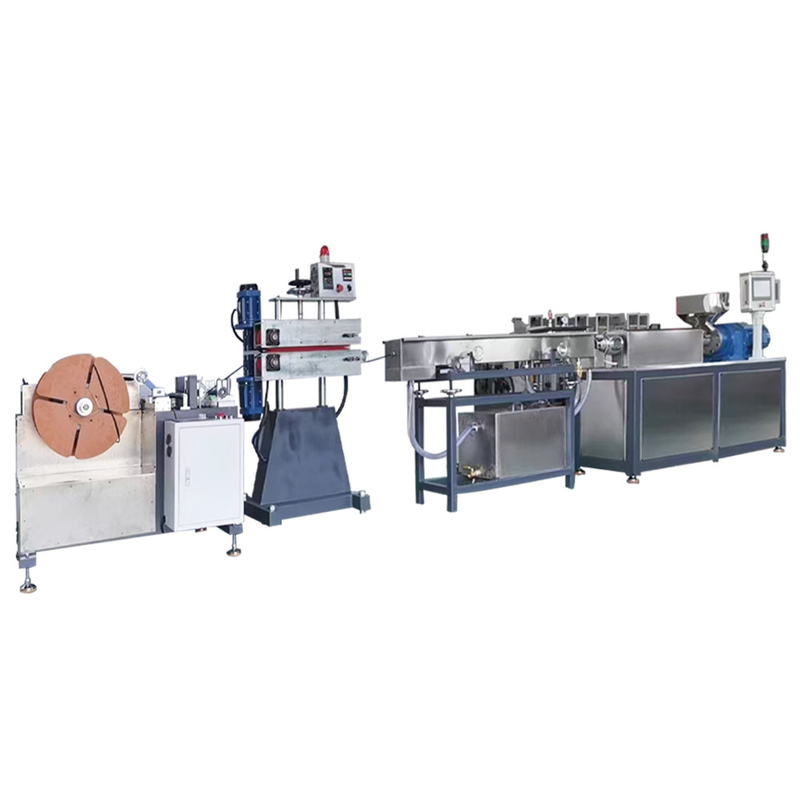

Lab Cast Stretch Film Manufacturing Machine Cast Film Machine

1,Bottom with pulleys to realize free movement

2,Adopt high and low design method

1,Quantity:1

2,Motor power: 7.5KW

3,Motor ratio speed: 1:27

4,Applied connection method: direct connection type

1,Quantity:1

2,Material: 38CrMoAIA

3,Tempering treatment HB230-250

4,Nitriding treatment :Hardness HV850-950 Depth 0.4-0.7mm

5,Structural mode:Using gradual separation type structure

6, adapt to the material: the current scale of production of degradation of material and similar material properties of the material

7,Screw diameter: ¢ 45

1,Materials: 38CrMoAIA

2,Tempering treatment HB230-250

3,Nitriding treatment :Hardness HV850-950

4,Outer diameter: ¢ 80

5,Cooling method: with external water jacket

1,Vacuum method Blower method dual-purpose mold design, to adapt to the versatility of the material

2,Block type structure way, replace the mold is convenient and fast

3,Molds can achieve a variety of specifications for the size of the tube, the machine according to the diameter of 12 to design

4,With vacuum pipe washing set
