Portable Thermal Conductivity Tester Transient Plane Heat Source Method

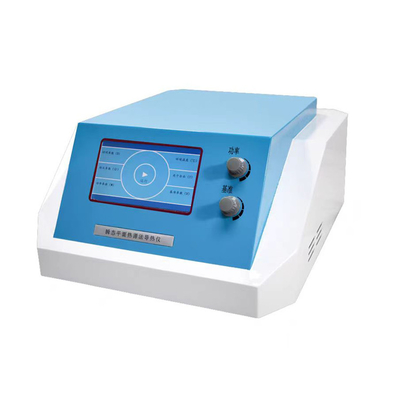

Large Image : Portable Thermal Conductivity Tester Transient Plane Heat Source Method

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3044C
Document:	rubber machine.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Thermal Conductivity Tester Transient Plane Heat Source Method is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	Thermal Conductivity Tester Transient Plane Heat Source Method	Brand:	ZL
Model:	ZL-3044C	Test Range:	0.005-300 W / (m * K)
Temperature Range:	Room Temperature - 130 ℃	Accuracy:	± 3%
Repeatability Error:	≤ 3%	Warranty:	1 Year
Highlight:	Plane Heat Source Thermal Conductivity Tester , Thermal Conductivity Meters , Thermal conductivity portable meters

Thermal Conductivity Tester Transient Plane Heat Source Method

●Introduction:

ZL-3044C is a thermal conductivity tester developed by using transient plane heat source technology (TPS), which can be used to test the thermal conductivity of different types of materials. Transient plane heat source method is one of the latest methods to study heat conduction performance, which makes the measurement technology reach a new level. The thermal conductivity can be measured quickly and accurately when studying materials, which provides great convenience for enterprise quality control, material production and laboratory research. The instrument is easy to operate and easy to understand. It will not damage the sample.

●Main Technical Parameters:

Test range	0.005-300 w / (m * k)
Temperature range	room temperature - 130 ℃
Probe diameter	No.1 probe 7.5mm
	No.2 probe 15mm
	No.3 probe 30mm
Accuracy	± 3%
Repeatability error	≤ 3%
Measurement time	5 ~ 160 seconds
Power supply	AC 220 V
Overall power	< 500W
Sample temperature rise	< 15 ℃
Test sample power P	No.1 probe:0 < p < 1W
	No.2 probe:0 < p < 14W
	No.3 probe:0 < p < 14W
Sample specification	Single sample measured by No.1 probe (15 * 15 * 3.75mm)
	Single sample measured by No.2 probe (30 * 30 * 7.5mm)
	Single sample measured by No.3 probe (60 * 60 * 20mm)

Note: Probe No. 1 measures thinner low-conductivity materials, Probe No. 2 is a conventional general-purpose probe, and Probe No. 3 measures higher-conductivity materials with a larger thermal conductivity. If the surface of the sample to be measured is smooth and sticky, the samples can be stacked.

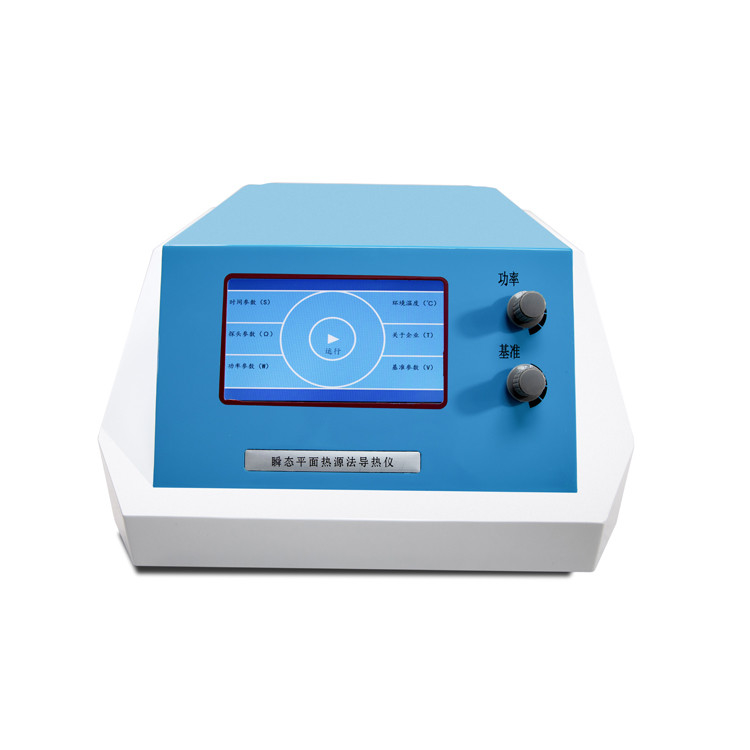

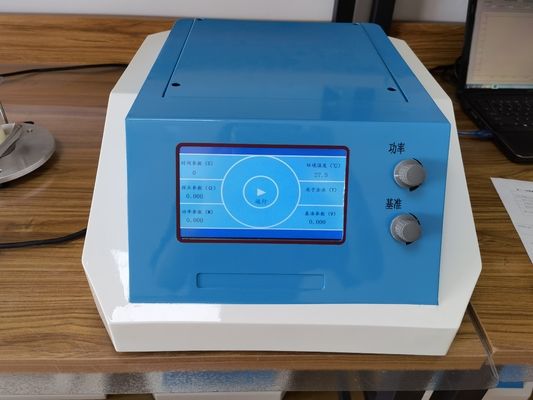

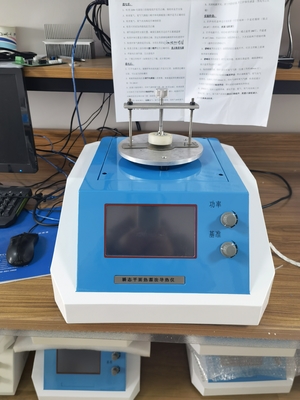

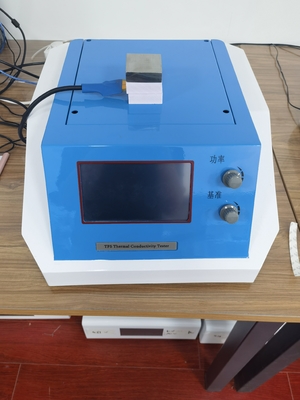

Portable Thermal Conductivity Tester Transient Plane Heat Source Method 0
