High-Precision Material Thermal Conductivity Tester Flat Plate Heat Flow Meter Method

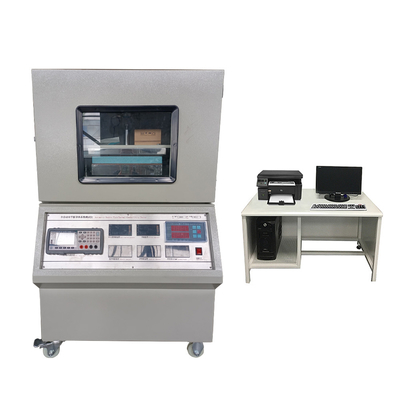

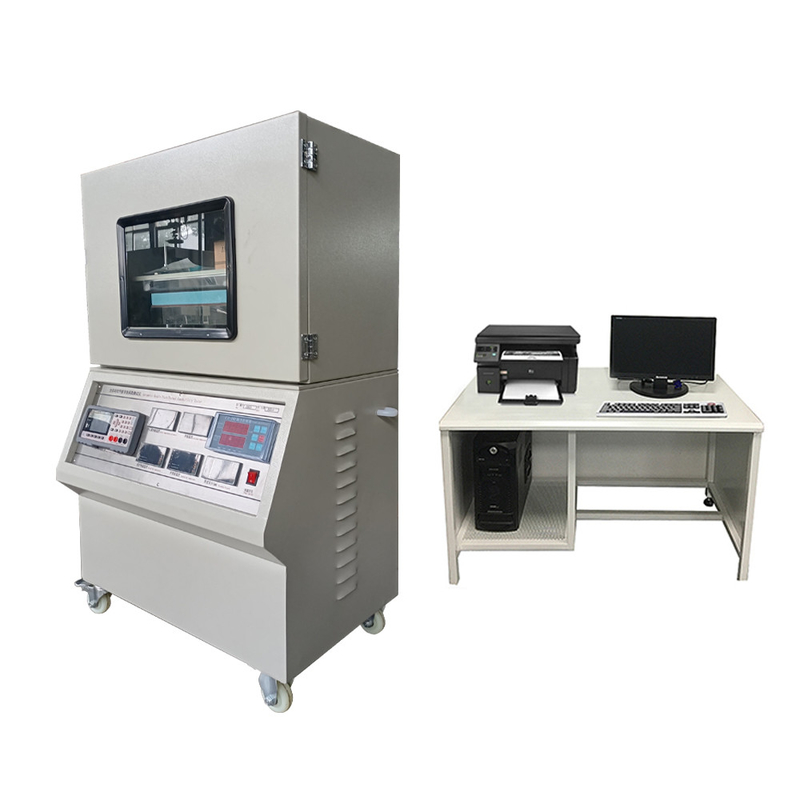

Large Image : High-Precision Material Thermal Conductivity Tester Flat Plate Heat Flow Meter Method

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3044B

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	High-Precision Material Thermal Conductivity Tester Flat Plate Heat Flow Meter Method is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	High-Precision Material Thermal Conductivity Tester Flat Plate Heat Flow Meter Method	Brand:	ZL
Range And Accuracy Of Thermal Conductivity:	0.00001～3W/mk, Can Be Measured Up To 0.1mw/mk.0.001～300W/mk	Measurement Accuracy:	1%
Sample Size:	50×50～300×300 (mm). Special Sizes Can Be Customized.	The Measuring Time:	15-20min
Model:	ZL-3044B	Warranty:	1 Year
Highlight:	High Precision Thermal Conductivity Tester , Material Thermal Conductivity Tester , Flat Plate Heat Flow Meter

High-Precision Material Thermal Conductivity Tester Flat Plate Heat Flow Meter Method

●Overview:

Adopt the internationally popular heat flow meter to detect thermal conductivity and thermal resistance, and use a computer to realize automatic detection and generate experimental reports. The instrument uses a stable hot surface temperature on one side of the sample, the heat is transferred to the cold surface through the sample, and the heat flow is measured to calculate the thermal conductivity and thermal resistance. Using imported sensors and computer technology, it has the characteristics of good measurement accuracy, high reliability and good repeatability. Especially suitable for the measurement of low thermal conductivity (accurate to 0.1mw). It can be used for testing plastics, rubber, insulation materials, etc., and is widely used in colleges and universities, scientific research institutes, quality inspection, factories and mines. Reference standards: GB/T10295-2008 (Determination of steady-state thermal resistance and related properties of thermal insulation materials by heat flow meter method) and ASTM C518-04 Test method for measuring steady-state heat flux and heat transfer characteristics by heat flow meter method.

●Main Technical Parameters:

Range and Accuracy of Thermal Conductivity	0.00001～3W/mk, can be measured up to 0.1mw/mk.0.001～300W/mk
Measurement Accuracy	1%
Sample Size	50×50～300×300 (mm). Special sizes can be customized.
It can test solid materials and powder materials.
The Measuring Time	15-20min.
Hot Surface Temperature and Control	Room Temperature -199.9°C (standard configuration), Room Temperature -499.9°C, higher temperature can be determined according to user requirements. Flat plate heater, bidirectional thyristor control, temperature control accuracy 0.1 ℃.
Cold Surface Temperature and Control	0-99.9°C (standard configuration), -10-99.9°C, lower temperature can be determined according to user requirements. The cold surface is cooled by water to ensure the temperature stability of the cold surface (precision constant temperature water tank, temperature adjustable), and the temperature control accuracy is 0.1°C.
The sample is precisely clamped by computer, the pressure range is 0-1000N, and the resolution is 0.1N
Automatic measurement of sample thickness, 0-50mm, resolution 1um.
Imported heat flow meter is adopted, with stable and reliable performance
The whole process adopts computer automatic test and saves, prints and stores experimental data
