Efficient ISO 20344 EN 388 Gloves Cutting Machine

Efficient ISO 20344 EN 388 Gloves Cutting Machine
Efficient ISO 20344 EN 388 Gloves Cutting Machine Efficient ISO 20344 EN 388 Gloves Cutting Machine Efficient ISO 20344 EN 388 Gloves Cutting Machine Efficient ISO 20344 EN 388 Gloves Cutting Machine Efficient ISO 20344 EN 388 Gloves Cutting Machine Efficient ISO 20344 EN 388 Gloves Cutting Machine

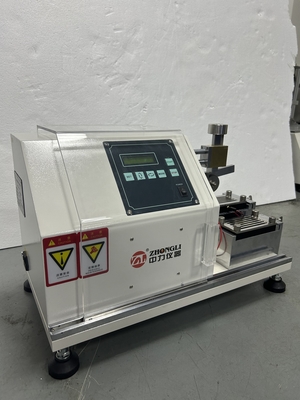

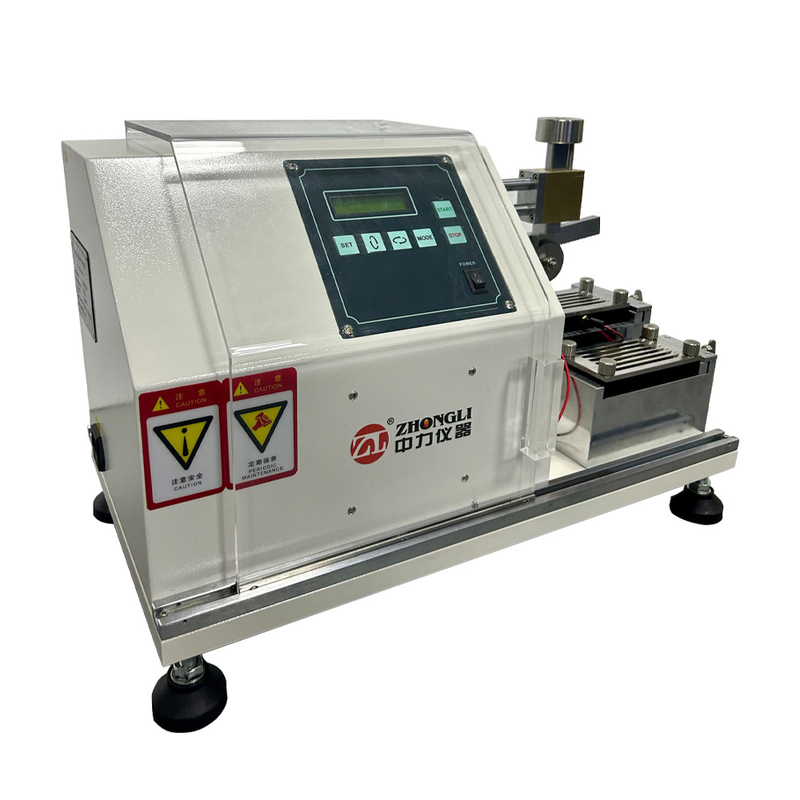

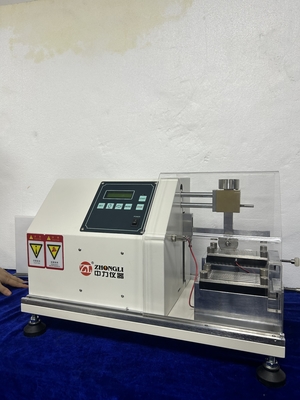

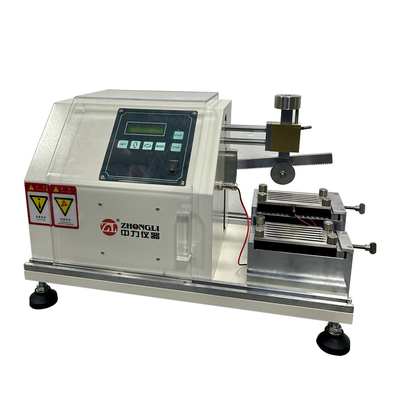

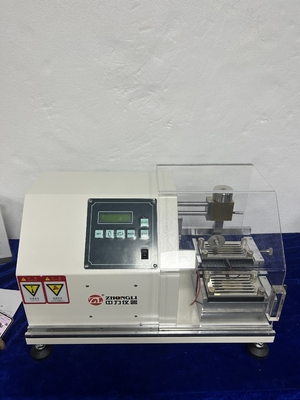

Large Image :  Efficient ISO 20344 EN 388 Gloves Cutting Machine

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-3043
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: ISO 20344 EN 388 Gloves Cutting Machine will be packaged within wooden case
Delivery Time: 7-10 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Name: ISO 20344 EN 388 Gloves Cutting Machine Number Of Test Samples: 1 Group
Horizontal Movement Displacement: 50mm Blade Rotation Direction: Opposite To The Direction Of Movement
Blade Cutting Speed: 10cm/s Load On The Blade: 5±0.05 N
Total Cutting Angle: 30°-35° Dimensions: 550×400×250mm (L×W×H)
Model: ZL-3043 Brand: ZL
Highlight:

Efficient Gloves Cutting Machine

,

EN 388 Gloves Cutting Machine

,

ISO 20344 Gloves Cutting Machine

Efficient ISO 20344 EN 388 Gloves Cutting Machine
Product Overview
This specialized testing machine evaluates the cutting resistance strength of shoe uppers, protective gloves, leather, and various materials. Designed for knife cut resistance testing in protective safety gloves, it is not suitable for gloves made from extremely hard materials.
Working Principle

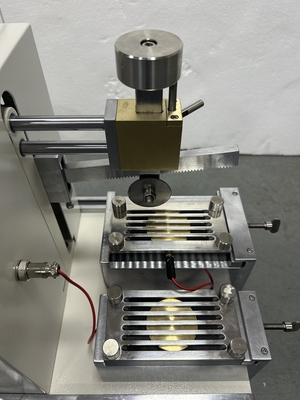

A rotating circular blade cuts samples placed on a specialized sample device. The blade reciprocates under specified load conditions, automatically counts cycles, and stops when testing is complete. Comparative analysis of pre- and post-test conditions provides accurate test results.
Technical Specifications
Parameter Specification
Number of Test Samples 1 group
Horizontal Movement Displacement 50mm
Blade Rotation Direction Opposite to direction of movement
Blade Cutting Speed 10cm/s
Load on the Blade 5±0.05 N
Round Blade Specifications Diameter 45±0.5mm, Thickness 3±0.3mm
Total Cutting Angle 30°-35°
Blade Material Hard tungsten steel with hardness of 740-800HV
Dimensions (L*W*H) 550*400*250mm
Compliance Standards
EN ISO 20344, GB/T 20991, EN 388, EN 340
Efficient ISO 20344 EN 388 Gloves Cutting Machine 0 Efficient ISO 20344 EN 388 Gloves Cutting Machine 1
