Adjustable Speed 90 Degree Peel Strength Testing Machine Precise

Large Image : Adjustable Speed 90 Degree Peel Strength Testing Machine Precise

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3041

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	90 Degree Peel Strength Testing Machine will be packaged within safety wooden case （fumigation free）
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	90 Degree Peel Strength Testing Machine	Pull Force Range:	0~20kg
Peeling Angle:	90 Degrees	Speed:	10~50mm/Min Adjustable
Push-Pull Gauge:	Digital Display Push-pull Gauge	Force Display Mode:	Direct Reading Push-pull Gauge
Body Size:	625mm (length) * 285mm (width) * 700mm (height)	Weight:	About 38kg
Power Supply:	AC 220V 50Hz.	Model:	ZL-3041
Brand:	ZL
Highlight:	Precise Peel Strength Testing Machine , 90 Degree Peel Strength Testing Machine , Adjustable Speed Peel Strength Testing Machine

Adjustable Speed 90 Degree Peel Strength Testing Machine Precise

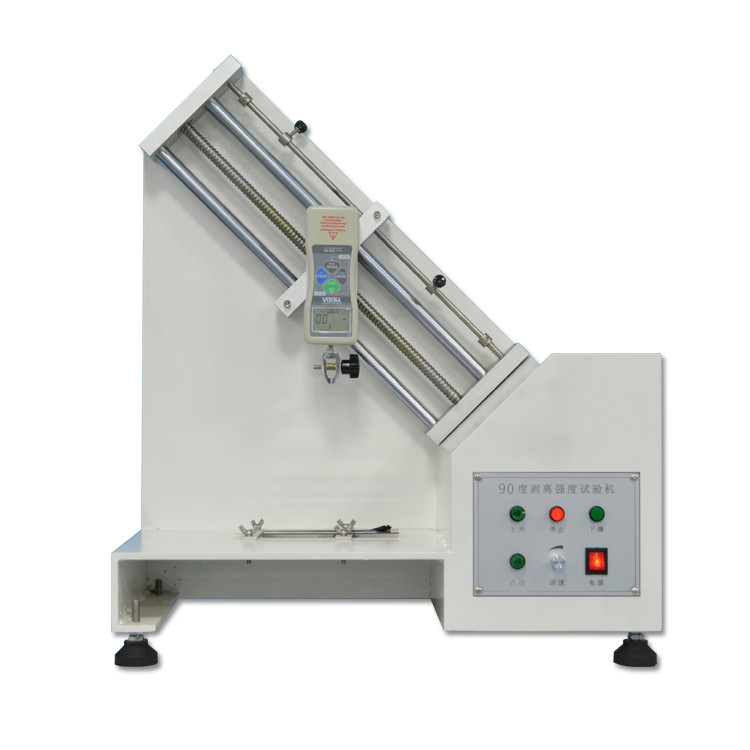

90 Degree Peel Strength Testing Machine

ZL-3041 90 Degrees Stripping Tester PDF Documentation

This testing machine is equipped with different push-pull gauges and is specifically designed to test the adhesion of copper foil circuits on PC boards, as well as the fastness of tin foil, aluminum foil, adhesive tape, and other materials to various surfaces. During testing, samples are peeled off at a vertical 90-degree angle to measure actual peel strength. The transmission mechanism utilizes noiseless gears and operates at constant speed for reliable, consistent results.

Technical Specifications

Pull Force Range	0~20kg
Peeling Angle	90 degrees
Speed	10~50mm/Min adjustable
Movement Function	With left and right movement capability
Push-Pull Gauge	Digital display push-pull gauge
Force Display Mode	Direct reading push-pull gauge
Body Size	625mm (length) * 285mm (width) * 700mm (height)
Weight	Approximately 38kg
Power Supply	AC 220V 50Hz

Key Features

Precise 90-degree peel strength measurement
Adjustable speed from 10-50mm/min
Digital display push-pull gauge for accurate readings
Noiseless gear transmission system
Constant speed operation for consistent results
Left and right movement functionality
