ISO 11501 ASTM D2732 Film Heat Force Shrink Plastic Film Thermal Shrinkage Tester

Large Image : ISO 11501 ASTM D2732 Film Heat Force Shrink Plastic Film Thermal Shrinkage Tester

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3039

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	ISO 11501 ASTM D2732 Film Heat Force Shrink Plastic Film Thermal Shrinkage Tester will be packaged within wooden case.
Delivery Time:	3-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	ISO 11501 ASTM D2732 Film Heat Force Shrink Plastic Film Thermal Shrinkage Tester	Specifications:	Plastic Films Shrinkage Tester
Specimen Size:	≤140 Mm X 140 Mm	Temperature Range:	Room Temperature ~ 200°C
Accuracy:	±0.3°C	Net Weight:	24 Kg
Standards:	ASTM D2732	Test Application:	Testing The Heat Shrinkage Performance Of Various Films In Liquid Media At Various Temperatures
Model:	ZL-3039
Highlight:	Shrink Plastic Film Thermal Shrinkage Tester , ISO 11501 Film Heat Force Shrink Tester , Plastic Film Heat Force Shrink Tester

ISO 11501 ASTM D2732 Film Heat Force Shrink Plastic Film Thermal Shrinkage Tester

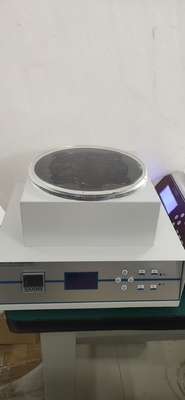

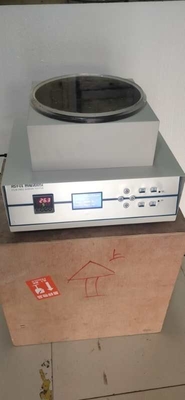

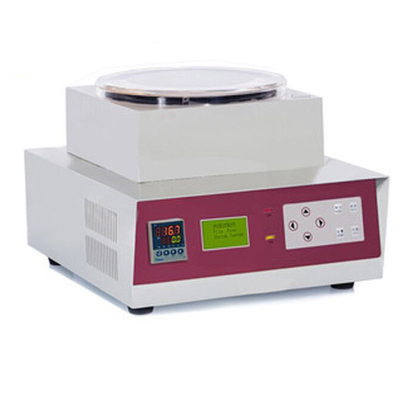

The heat shrinkage tester is professionally designed for testing the heat shrinkage performance and dimensional stability of various films, heat shrinkable tubes, pharmaceutical PVC hard sheets, back sheets, and other materials in liquid media at various temperatures.

Professional Technology Features

Digital P.I.D temperature control and monitoring technology ensures rapid heating to set temperatures while effectively preventing temperature fluctuations
Liquid medium heating provides a stable and uniform test environment
Automatic time counting system ensures precise test data accuracy
Microcomputer control with LCD display and PVC operation panel featuring intuitive menu interface for quick user operation

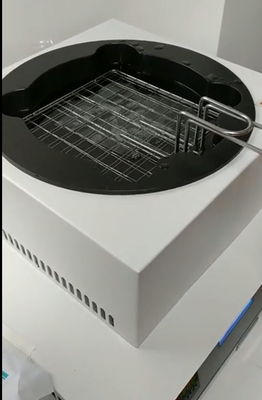

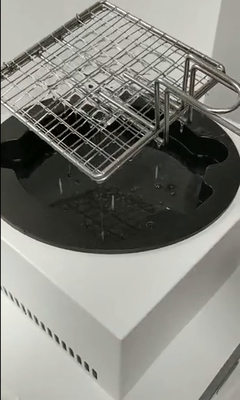

Equipped with standard sample clamping film grid to ensure smooth test progression

Compliance Standards

The instrument meets various national and international standards including ASTM D2732

Test Applications

Designed for testing heat shrinkage performance of various films in liquid media at different temperatures. Applications include PE heat shrinkable film for collective packaging of wine, cans, mineral water, and various beverages, as well as PVC, POF, OPS, PET and other shrink films suitable for diverse packaging requirements.

Technical Specifications

Parameter	Specification
Sample Size	≤140 mm * 140 mm
Temperature Range	Room temperature to 200°C
Temperature Control Accuracy	120±2℃
Power Supply	AC 220V 50Hz
Dimensions	440 mm (L) * 370 mm (W) * 310 mm (H)
Net Weight	24 kg
