ISO48 Digital Display International Rubber IRHD Hardness Tester

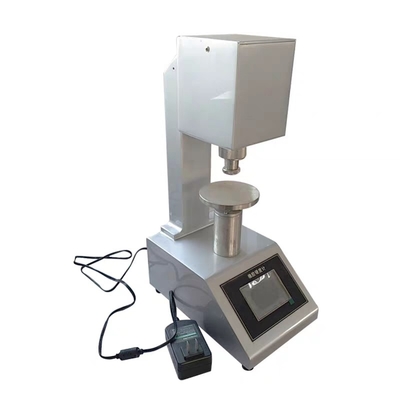

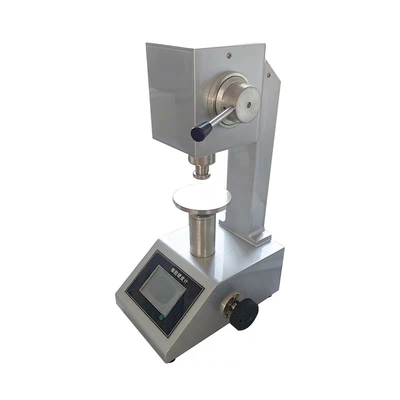

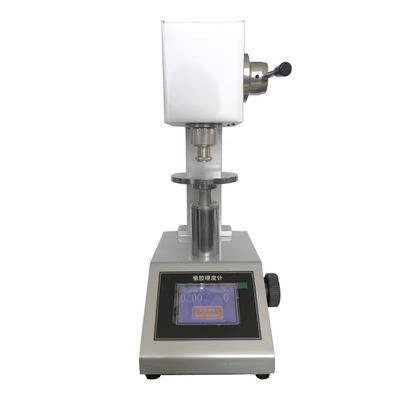

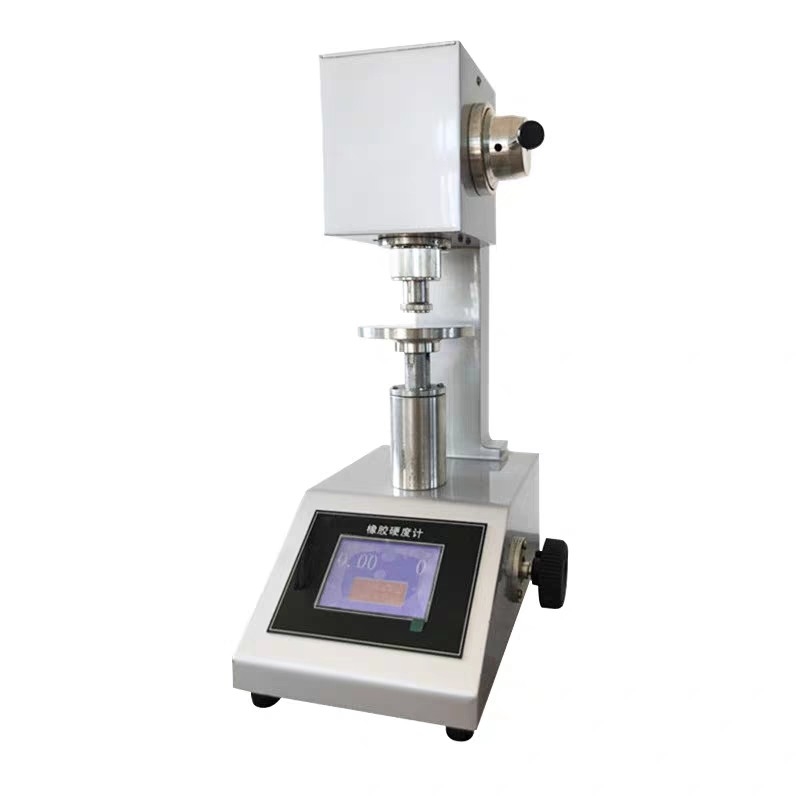

Large Image : ISO48 Digital Display International Rubber IRHD Hardness Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3033

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO48 Digital Display International Rubber Hardness Tester IRHD Hardness Tester will be Packaged in wooden case （fumigation free）
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	ISO48 Digital Display International Rubber Hardness Tester IRHD Hardness Tester	Model:	ZL-3033
Contact Force:	0.3±0.02N	Indentation Force:	5.40±0.01N
Total Force:	5.70±0.03N	Force On The Presser Foot:	8.30±1.50N
Foot Pressure:	∮20±1mm	Presser Foot Hole:	∮6±1mm
Needle Ball Diameter:	2.50±0.01mm
Highlight:	International Rubber IRHD Hardness Tester , ISO48 Rubber IRHD Hardness Tester , Digital Display IRHD Hardness Tester

ISO48 Digital Display International Rubber Hardness Tester IRHD Hardness Tester

I. Overview: the implementation of GB/T6031-N "vulcanized rubber hardness (30-85IRHD) determination - routine test" standard device. Measurement of rubber and similar rubber materials specimens and test pieces of conventional hardness.

II. Features: the use of high-precision sensing system liquid crystal display, in addition to measuring the hardness of standard rubber specimens, but also on the rubber roller finished parts of the determination of apparent hardness.

III. Scope of application: finished rubber and plastic products and raw materials.

IV. Technical parameters:

Contact force	0.3±0.02N
Indentation force	5.40±0.01N
Total force	5.70±0.03N
Force on the presser foot	8.30±1.50N
Foot pressure	∮20±1mm
Presser foot hole	∮6±1mm
Needle ball diameter	2.50±0.01mm
Specimen* small thickness of 4mm
Alternating current	220V±10% 50Hz

ISO48 Digital Display International Rubber IRHD Hardness Tester 0
