ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials

Large Image : ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3030

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged in wooden case （fumigation free）
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	ISO379 ASTM D5132 Combustion Test Machine For Automotive Interior Materials	Burner:	Φ9.5mm±0.3mm Long About 100mm Bunsen Burner
Test Inclination:	The Bunsen Burner Is 90°	Flame Height:	Adjustable From 20mm±2mm To 100mm±2mm
Flame Application Time:	0-999.9s±0.1s Adjustable (generally Choose 15s)	Combustion Gas:	Liquefied Petroleum Gas Or Coal Gas
Temperature Range:	0~200°C	Test Process:	Manual Control Of The Test Program
Standard:	ISO379 ASTM D5132
Highlight:	ISO379 Combustion Test Machine , ASTM D5132 Combustion Test Machine , Automotive Interior Materials Combustion Test Machine

ISO379 ASTM D5132 Combustion Test Machine for Automotive Interior Materials

This combustion test machine evaluates the flammability and fire hazard characteristics of automotive interior materials according to international standards GB8410-2006 and FMVSS 571.302.

Testing Principle

The equipment utilizes a specified Bunsen burner with controlled flame height and angle to apply flames horizontally to automotive interior material samples. The testing process measures ignition time, burning duration, and combustion length to assess material flammability and fire safety performance.

Applications

Qualitative evaluation of automotive interior material flammability
Research, production, and quality control for automotive material manufacturers
Testing of insulation materials, engineering plastics, and other solid combustible materials

Technical Specifications

Burner Type	Φ9.5mm±0.3mm Bunsen burner, approximately 100mm long
Test Inclination	90° vertical Bunsen burner facing horizontally placed sample
Flame Height	Adjustable from 20mm±2mm to 100mm±2mm (typically set to 38mm)
Flame Application Time	0-999.9s±0.1s adjustable (typically 15s)
Combustion Gas	Liquefied petroleum gas or coal gas
Temperature Range	0~200°C (displays internal studio temperature during testing)
Test Process	Manual control of test program
Reference Standards	GB8410-2006, FMVSS 571.302
Studio Volume	385mm * 204mm * 360mm (WDH, approximately 0.03m³)
Equipment Dimensions	550mm wide * 210mm deep * 550mm high

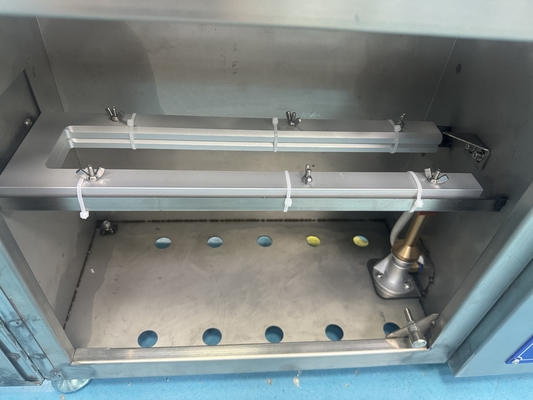

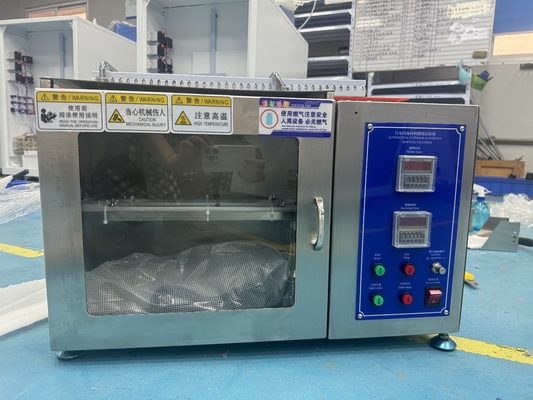

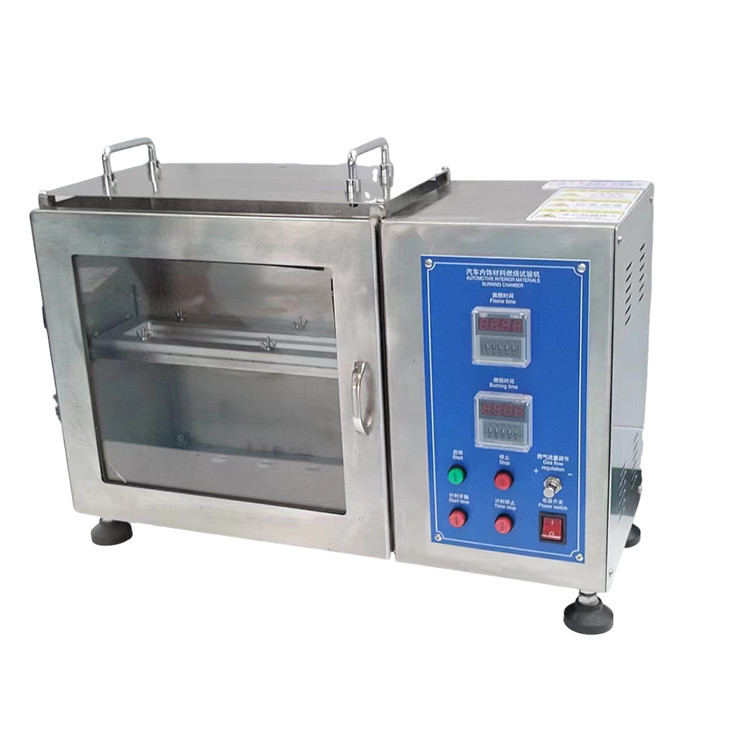

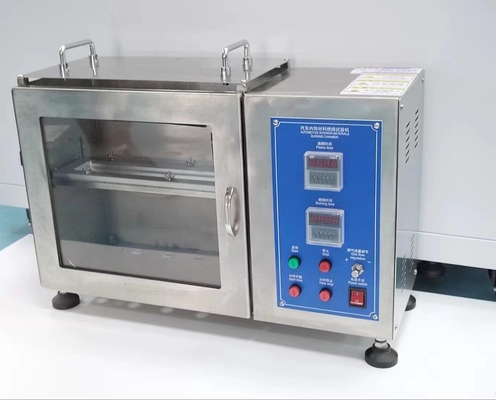

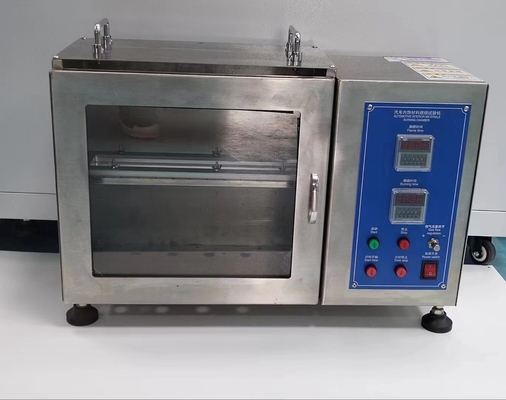

Equipment Images
