IEC60695 Glow Wire Flammability Tester Cable Combustion Testing Machine

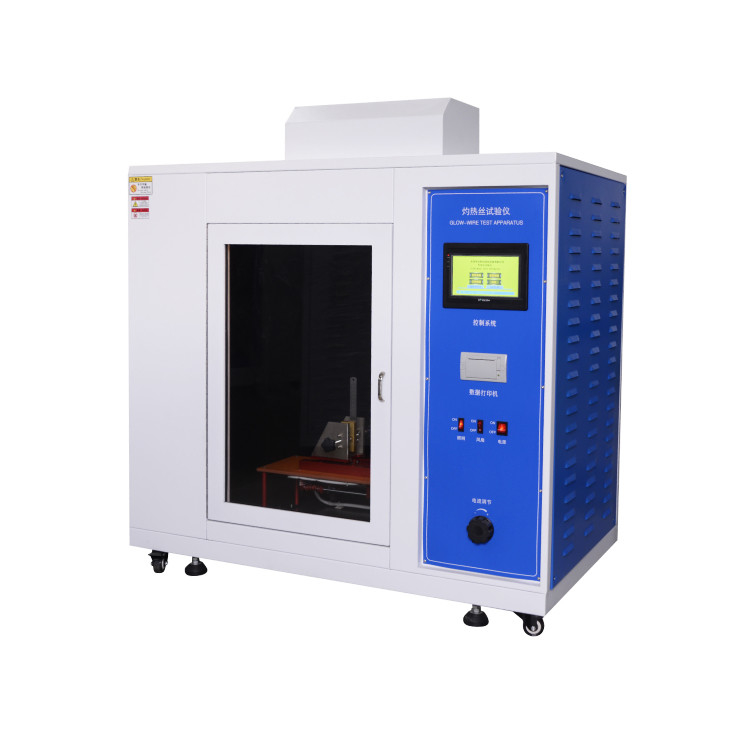

Large Image : IEC60695 Glow Wire Flammability Tester Cable Combustion Testing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3029

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	IEC60695 Glow Wire Flammability Tester Cable Combustion Testing Machine will be packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	Negotiable

Contact Now

Detailed Product Description

Name:	IEC60695 Glow Wire Flammability Tester Cable Combustion Testing Machine	Model:	ZL-3029
Working Power Supply:	AC220V, 50Hz, ≤ 500W	Heating Temperature:	500-1000° ≤ Continuously Adjustable
Temperature Measurement Accuracy:	±10°C	Burning Time:	0.1-999.9s
Ignition Time:	0.1-999.9s	Brand:	ZL
Standard:	IEC60695
Highlight:	Glow Wire Flammability Tester , IEC60695 Glow Wire Flammability Tester , Cable Combustion Testing Machine

IEC60695 Glow Wire Flammability Tester Cable Combustion Testing Machine

This glow wire flammability tester is designed for comprehensive fire hazard testing of electrical and electronic products, household appliances, and their materials. The equipment simulates thermal stress from heat sources or ignition sources like burning components or overload resistors.

Application Scope

Manufactured according to IEC60695-2-10:2000, GB/T5169.10-2006, GB/T5169.13-2006 and GB4706.1 standards, this testing machine evaluates fire hazards in electrical and electronic products, household appliances, and their component materials.

Technical Specifications

Working Power Supply	AC220V, 50Hz, ≤ 500W
Heating Temperature	500-1000°C continuously adjustable, Temperature Measurement Accuracy ±10°C
Burning Time	0.1-999.9s, ±0.1s (time range adjustable)
Ignition Time	0.1-999.9s, automatic recording
Flame Extinguishing Time	0.1-999.9s, automatic recording
Pressure on Sample	1±0.2N (with weights), pressure limit depth 7mm

Key Components & Features

Glow wire made of φ4 nickel (80%) and chromium (20%) to specified dimensions
Thermocouple: φ0.5 armored nickel-chromium/nickel-aluminum wire, K graduation, UK imported, insulated to ground
Automatic detachment from glowing wire after specified burning time
Combustion box dimensions: 1100 x 550 x 1150 mm (internal volume >0.5 cubic meters, customizable to 0.75 or 1 cubic meters)
Black inner walls with illuminance <20lx, constructed from 1.2mm thick 304 stainless steel
Integrated combustion and control box design
Adjustable distance between glowing wire and pine board
Includes one tray, five silk paper pieces, and one pine board

Premium Instrumentation & Components

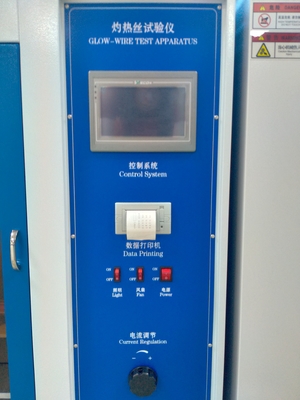

Timer and temperature control table utilize imported Autonics instruments for precise measurement. Key components include Omron relays, Korean Autonics digital displays, Schneider circuit breakers, and high-quality controls from Shanghai manufacturers. The enclosure is constructed from 1.2mm thick 304 stainless steel plate with surface finishing.

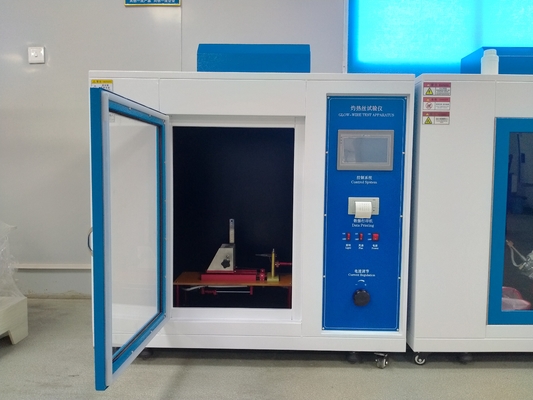

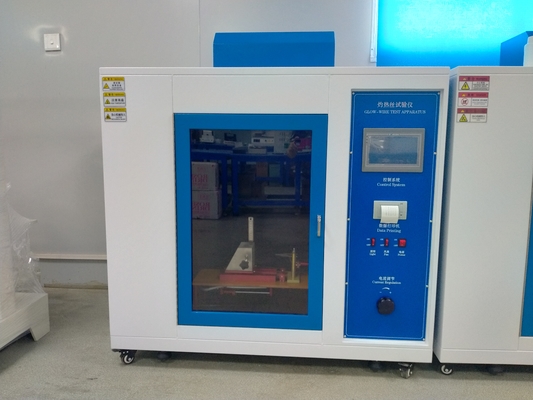

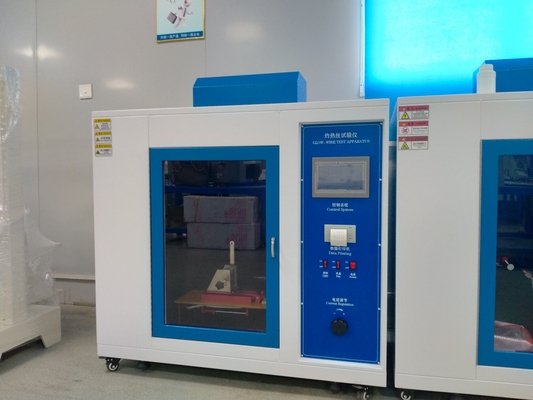

Machine Image
