Electric UL94 Flame Retardant Test Chamber Durable

Large Image : Electric UL94 Flame Retardant Test Chamber Durable

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3028

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	UL94 Flame Retardant Test Chamber will be Packaged in wooden case （fumigation free）
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	UL94 Flame Retardant Test Chamber	Model:	ZL-3028
Inner Volume Of The Box:	≥0.5 Cubic Meters	Flame Application Time:	0 ~ 99 Minutes And 99 Seconds
Afterflame Time:	0 ~ 99 Minutes And 99 Seconds	Burning Angle:	20°, 45°, 90°(ie 0°) Adjustable
Power Supply:	AC 220V, 50Hz	Brand:	ZL
Highlight:	Electric UL94 Flame Retardant Test Chamber , Electric Flame Retardant Test Chamber , Durable Flame Retardant Test Chamber

UL94 Flame Retardant Test Chamber

●Standard:

UL94, GBT2408

●Technical Description:

This tester is suitable for inspecting and evaluating the combustion characteristics of plastic materials. It is designed and manufactured according to the relevant provisions stipulated in the US UL94 standard and GBT2408 standard "Flammability Test of Plastic Materials for Equipment and Appliance Parts". Carry out horizontal and vertical flammability tests, and is equipped with a gas flow meter to adjust the size of the flame, and the operation is simple and safe. This instrument can evaluate the flammability of materials or foam plastics, such as: V-0, V-1, V-2, HB, 5V, HF-1, HF-2, HBF levels.

●Basic Specifications:

Inner Volume of the Box	≥0.5 cubic meters, with a glass observation door
Flame Application Time	0 ~ 99 minutes and 99 seconds can be set
Afterflame Time	0 ~ 99 minutes and 99 seconds can be set
Afterburn Time	0 ~ 99 minutes and 99 seconds can be set
Burning Angle	20°, 45°, 90°(ie 0°) adjustable
Dimensional Parameters of the Burner	inner diameter of nozzle Ø9.5mm, effective length of nozzle 100mm, with air conditioning hole
Flame Height	can be adjusted from 20mm to 175mm according to standard requirements
Alignment Method	the spline is aligned front, rear, left, and right driven by the motor
Product Features	It is also equipped with lighting devices, air extraction devices, gas flow regulating valves, gas pressure gauges, gas pressure regulating valves, gas flow meters, gas U-shaped pressure gauges and sample fixtures
Power Supply	AC 220V, 50Hz

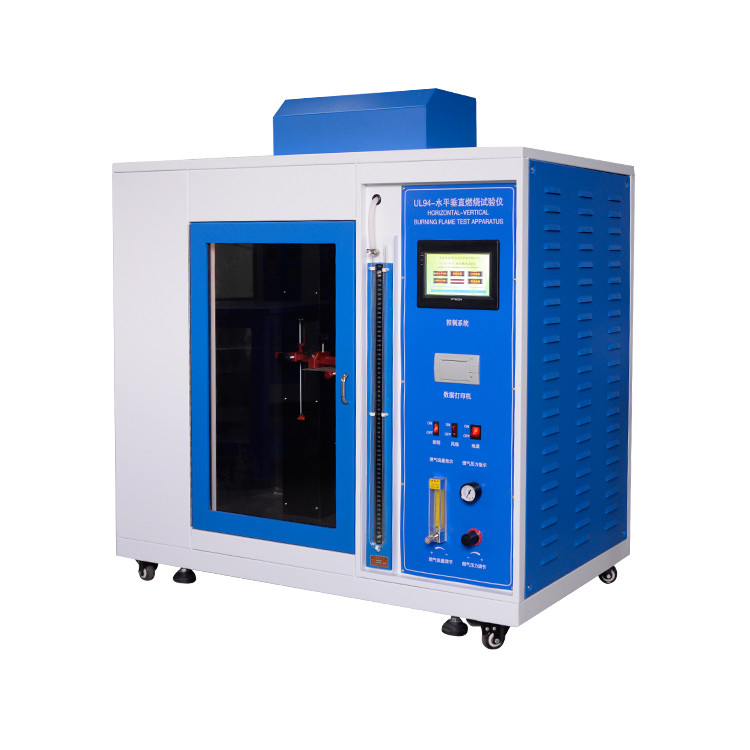

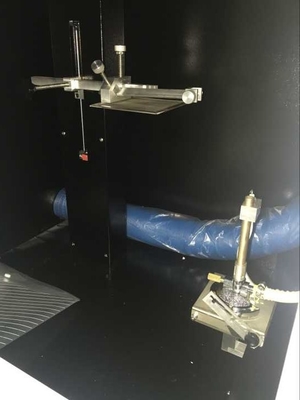

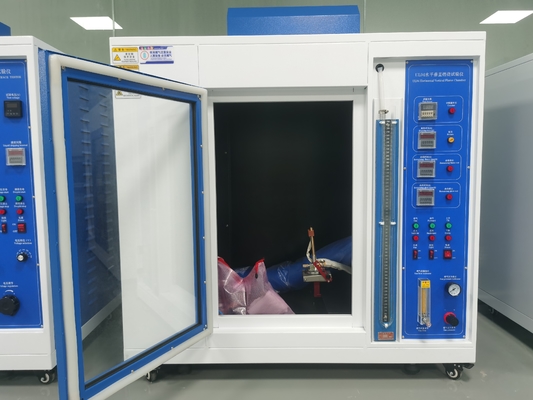

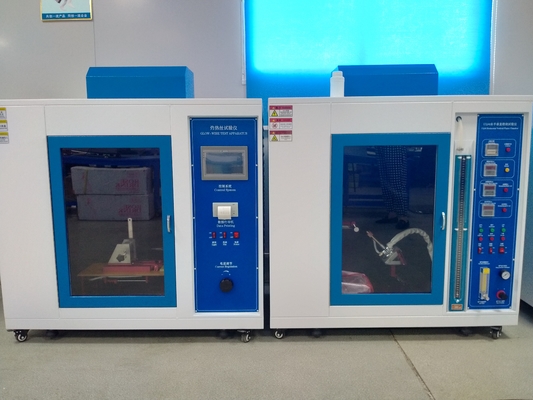

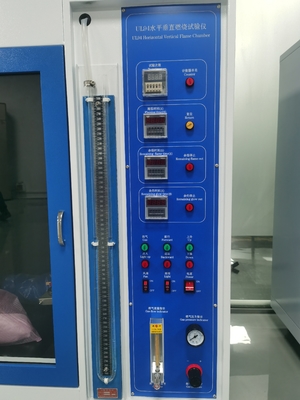

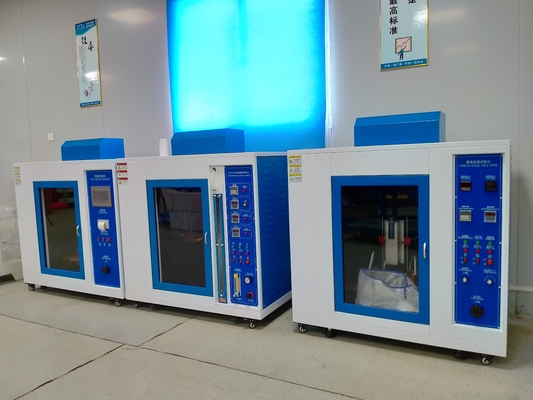

●Machine Picture:

Electric UL94 Flame Retardant Test Chamber Durable 0
