304 Stainless Steel Permanent Compression Distortion Tester With ASTM-D395 ASTM 3574 Standard

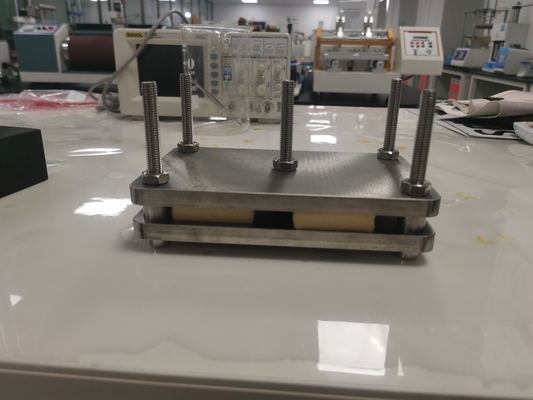

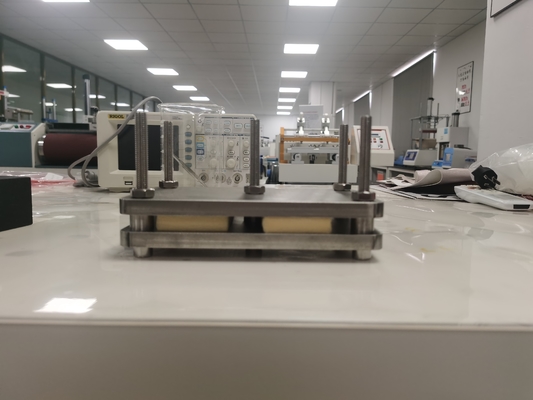

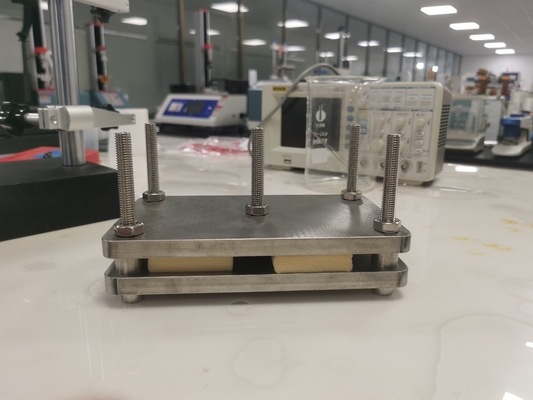

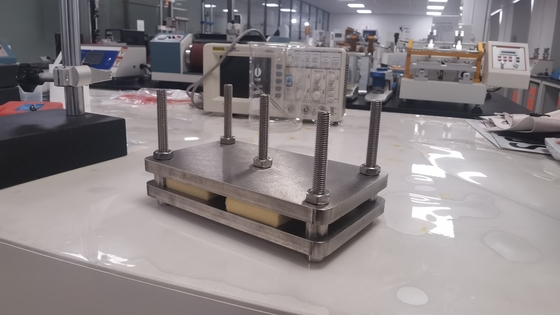

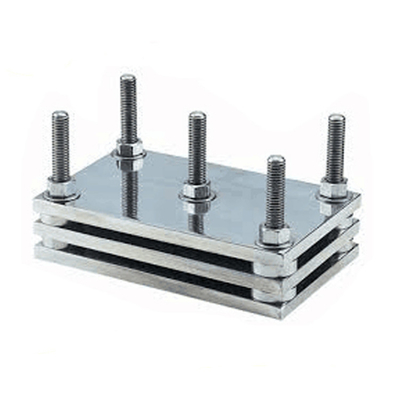

Large Image : 304 Stainless Steel Permanent Compression Distortion Tester With ASTM-D395 ASTM 3574 Standard

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3027A

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	304 Stainless Steel Permanent Compression Distortion Tester With ASTM-D395 ASTM 3574 Standard will be Packaged within wooden case.
Delivery Time:	4-7 work day
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 sets / month

Contact Now

Detailed Product Description

Product Name:	304 Stainless Steel Permanent Compression Distortion Tester	Material:	304 # Stainless Steel
Foamed Plastic:	50 × 50 × 25mm	Specimen:	Foam Plastic 50 × 50 × 25mm
Volume:	20 × 12 × 10cm	Weight:	About 11kg
Model:	ZL-3027A	Warranty Period:	1 Year
Certificate:	CE
Highlight:	Stainless Steel Permanent Compression Distortion Tester , ASTM-D395 Permanent Compression Distortion Tester , ASTM 3574 Permanent Compression Distortion Tester

304 Stainless Steel Permanent Compression Distortion Tester

This precision testing equipment complies with ASTM-D395, ASTM 3574, GB-7759, and JIS-K6262 standards for evaluating compression set properties in rubber and foam materials.

Equipment Documentation

Equipment Overview

This testing machine measures the rebound performance of rubber products after exposure to specific time and pressure conditions. Standard test pieces are placed flat on the test plate, compressed between the unit's plates for predetermined durations, then removed and cooled before measuring final center thickness to calculate compression set percentage.

Compliance Standards

ASTM-D395
ASTM 3574
GB-7759
JIS-K6262

Application

Static compression testing for rubber materials and components.

Key Features

Constructed from durable 304 stainless steel for long-term reliability
Precision compression testing capabilities
Standard-compliant measurement accuracy

Testing Principle

Standard test specimens are compressed between parallel plates to a specified percentage using screw rotation. The assembly can be placed in an oven at controlled temperatures (optional), removed after predetermined time, allowed to cool for 30 minutes, then measured for thickness to calculate permanent set using standard formulas.

Sampling Requirements

Material Type	Specimen Dimensions	Measurement Method
Foamed Plastic	50 * 50 * 25mm	Thickness measurement for compression set calculation

Technical Parameters

Parameter	Specification
Specimen Type	Foam plastic 50 * 50 * 25mm
Unit Dimensions	20 * 12 * 10cm
Unit Weight	Approximately 11kg
