Rubber Compression Rebound Tester 500kgf

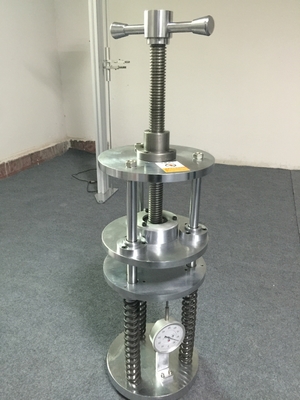

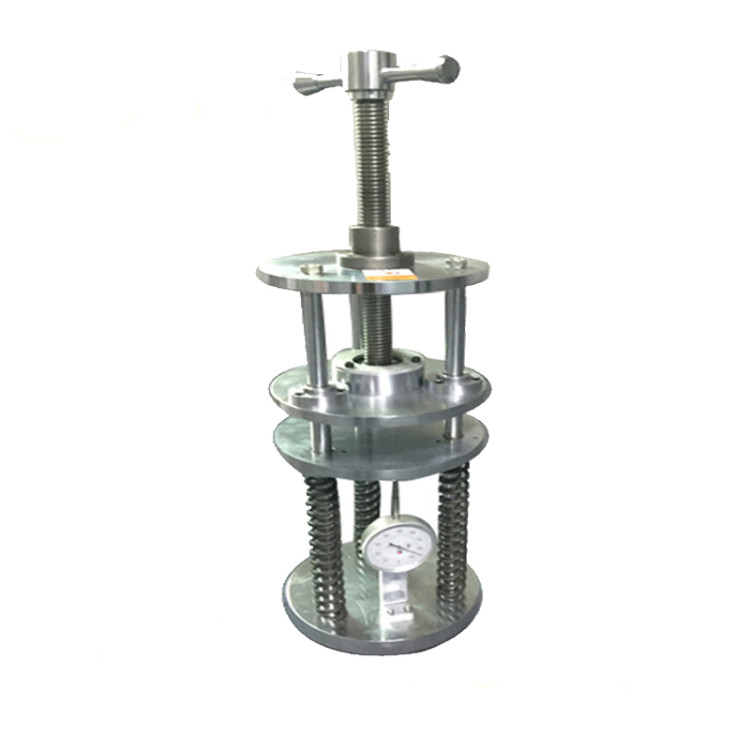

Large Image : Rubber Compression Rebound Tester 500kgf

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3026

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Rubber Compression Rebound Tester will be packaged within safety wooden case （fumigation free）
Delivery Time:	3-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	500 set per monnth

Contact Now

Detailed Product Description

Name:	Rubber Compression Rebound Tester	Model:	ZL-3026
Number Of Test Pieces:	3~27	Maximum Capacity:	500kgf
Percentage Indicator:	50mm	Measure The Thickness Of The Test Piece As:	9.52mm (accurate To 0.01mm,)
Test Methods:	After Testing The Standard For 24 Hours At Room Temperature, Take Out The Test Piece And Spread It On The Table For 1 Hour	Volume:	Ø23cm, H65cm
Warranty Period:	1 Year
Highlight:	Rubber rebound tester , Compression rebound tester , 500kgf rebound tester

Rubber Compression Rebound Tester

Rubber Test Machine:

rubber machine.pdf

●Equipment Overview:

This machine is used to test the rebound performance of rubber products after a certain time and pressure. Take the standard test pieces, lay them flat on the test plate, sandwich them between the two plates of this unit, take them out after the specified time, release the test pieces and cool them down, measure the final center thickness of the test pieces respectively, and substitute into the formula to find the compression rebound rate.

●Standard:

FIA304, SATRA-PM64 and other standard requirements.

●Parameters:

Model	ZL-3026
Number of Test Pieces	3~27
Maximum Capacity	500kgf
Percentage Indicator	50mm
Measure the Thickness Of The Test Piece As	9.52mm (accurate to 0.01mm,)
Test Methods	After testing the standard for 24 hours at room temperature, take out the test piece and spread it on the table for 1 hour
Test Piece Size (1)	Method 1: foamed material Ø29.0 mm, non-foamed material Ø14.5 mm
Test Piece Size (2)	Method 2: foamed material 25.4 × 25.4 mm; non-foamed material Ø12.7 mm
Volume	Ø23cm, H65cm
Weight	40kg

●Result judgment:

◆Calculation and Judgment:

Elastic recovery rate (elastic loss rate or compression ratio) = (T1-T2)/T1*100%. Among them, T1 is the original thickness of the test piece, and T2 is the pressed thickness of the test piece).

The compression of the insole is ﹤45%.
