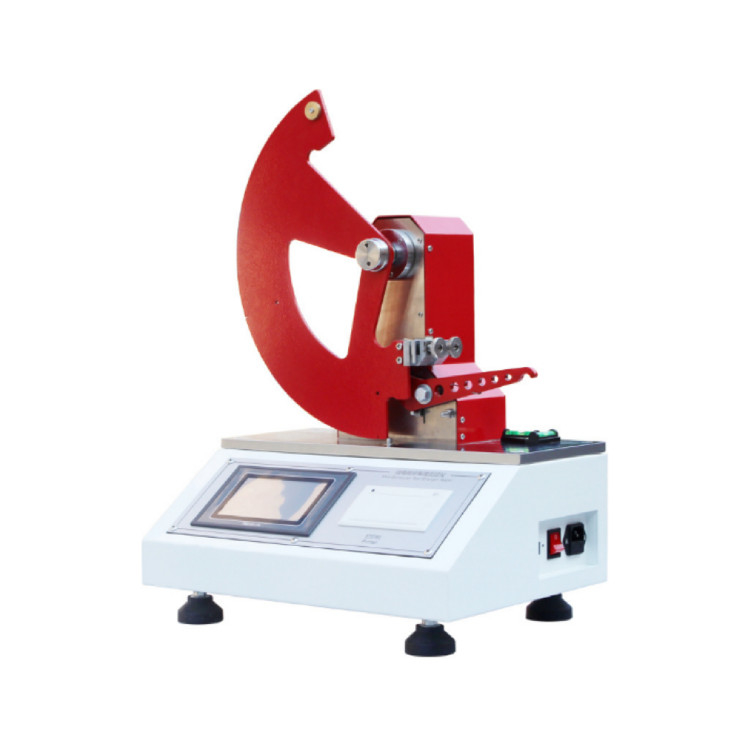

ISO 6383 Plastic Film Elmendorf Tear Strength Tester

Large Image : ISO 6383 Plastic Film Elmendorf Tear Strength Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3025

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO 6383 Plastic Film Elemendorf Tear Strength Tester will be Packaged in wooden case （fumigation free）
Delivery Time:	3-5 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	ISO 6383 Plastic Film Elemendorf Tear Strength Tester	Model:	ZL-3025
Measuring Range:	10mN ~16000mN (A File 8000mN; B File 16000mN)	Resolution:	0.1mN
Accuracy:	±1.0%	Tear Arm:	104 Mm ±1mm
Tear Initial Angle:	27.5°±0.5°	Distance Between Clippers:	2.8 Mm ±0.3mm
Sample Cut Length:	20 Mm ± 0.5mm	Tear Distance:	43±0.5mm
Highlight:	Elmendorf Tear Strength Tester , ISO 6383 Tear Strength Tester , Plastic Film Tear Strength Tester

ISO 6383 Plastic Film Elemendorf Tear Strength Tester

The automatic intelligent tear strength tester is a fully automatic testing instrument specially developed and produced to adapt to automation technology. It is an instrument for testing the tear resistance of materials. This testing instrument is suitable for testing paper tear strength, film tear Strength, tear strength of textiles, tear strength of plastic rubber sheet materials, etc. The instrument is an indispensable measurement tool for paper production enterprises, paper chemical enterprises, packaging production enterprises, etc. and quality inspection departments.

●Test Standards:

ISO6383/2-1983,GB11999-89 ,ISO1974,TAPPI414,GB455

●Technical Parameter:

Measuring Range	10mN ~16000mN (A file 8000mN; B file 16000mN)
Resolution	0.1mN
Accuracy	±1.0%
Tear Arm	104 mm ±1mm
Tear Initial Angle	27.5°±0.5°
Distance Between Clippers	2.8 mm ±0.3mm
Sample Cut Length	20 mm ± 0.5mm
Tear Distance	43±0.5mm
Size of paper Clip	25*15mm
Fixtures	standard manual optional pneumatic clamps
Man-Machine Interface	3.2in liquid crystal display, real-time display of test data
Printout	Thermal printer
Working Environment Temperature	(0~35) ℃, humidity <85%
Dimensions	510400365mm
Working Environment	Temperature (20±10) ℃, Humidity <85%
Power Supply	AC220V 50Hz

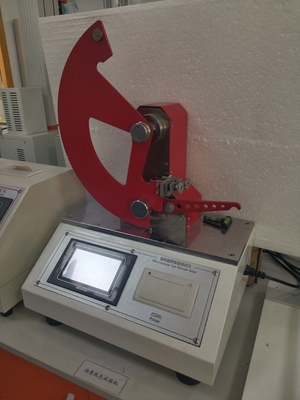

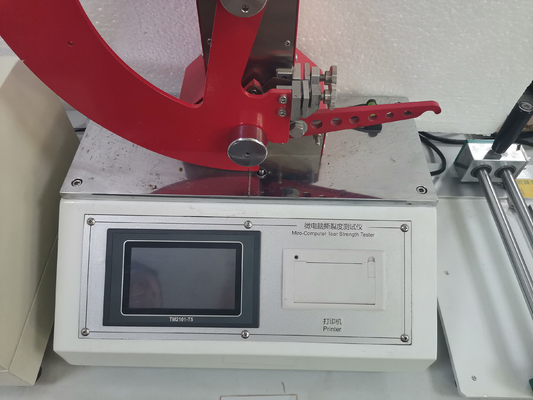

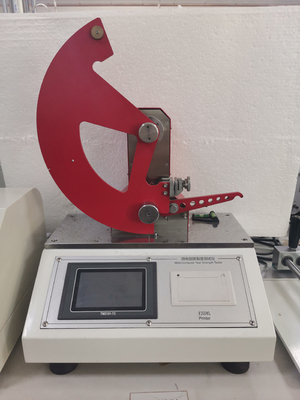

ISO 6383 Plastic Film Elmendorf Tear Strength Tester 0
