Pipe Hydraulic Pressure Burst Testing Machine Electric control

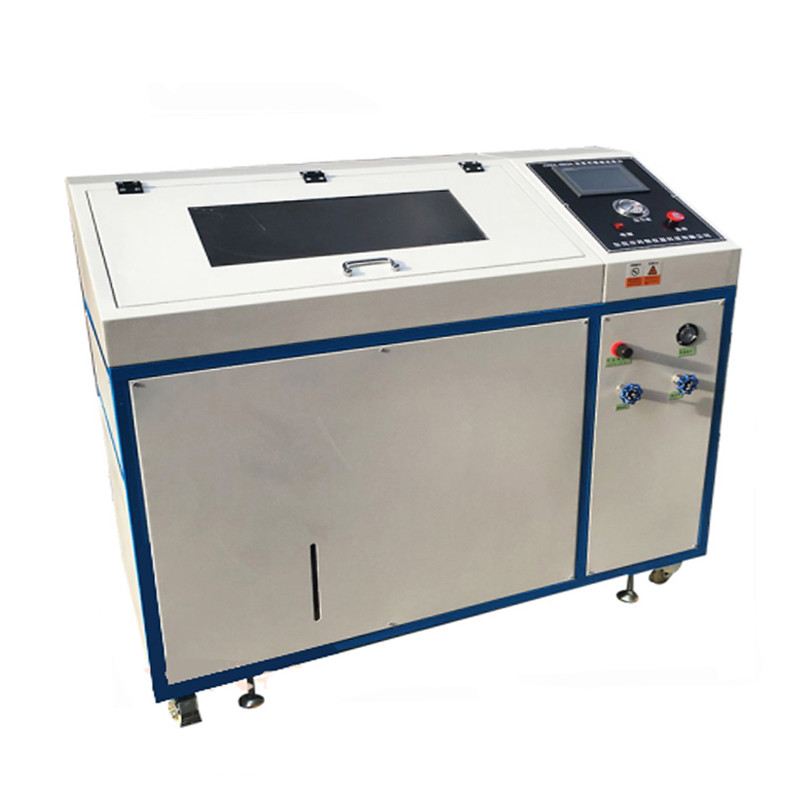

Large Image : Pipe Hydraulic Pressure Burst Testing Machine Electric control

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3021C

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Pipe Hydraulic PressureBurst Testing Machine is packaged within wooden case
Delivery Time:	4-7 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	Pipe Hydraulic Pressure Burst Testing Machine	Model:	ZL-3021C
Test Pressure:	0-10MPA (pressure Optional)	Pressure Control Accuracy:	+2% Of The Upper Limit Of The Test Pressure Value, -1% Of The Lower Limit
Pressure Value Resolution:	0.01MPa	Pressure Sensor:	Test Pressure Sampling Frequency 0.1 Milliseconds
Test Medium:	Water Or Hydraulic Oil	Operation Method:	Electric Control
Host Size:	1800mmX650mmX1650mm (LWH)	Scope Of Application:	Hydraulic Hoses And Hose Assemblies
Warranty Period:	1 Year
Highlight:	Hydraulic Pressure Burst Testing Machine , Pipe Burst Testing Machine , Electric control Burst Testing Machine

Pipe Hydraulic Pressure Burst Testing Machine Electric Control

The Pipe Hydraulic Pressure Burst Testing Machine is designed for testing the pressure resistance and bursting performance of various automotive hoses, rubber hoses, air-conditioning hoses, automotive assemblies, and other pipe components.

Technical Documentation

Download Rubber Machine Technical Specifications (PDF)

Scope of Application

This testing machine is suitable for burst pressure determination and pressure resistance time testing of various pipe fittings. It is widely used in quality inspection units, auto parts manufacturing facilities, product quality inspection stations, and scientific research institutions for hose production, development, and research applications.

Compliance Standards

Manufactured in accordance with EN ISO1402-1996/NF T47202-1996 "Hydrostatic Test of Rubber and Plastic Hose Components" and GB/T5563 Hydraulic Hose Assembly Test Standard. Installation and testing methods comply with the requirements specified in these international standards.

Key Features

Gas-driven automatic booster pump enables easily adjustable and controllable output pressure
Advanced technology with rational structure design for compact size, light weight, and aesthetic appearance
All pressure-bearing components use international brand standard parts with no welding connections
Easy disassembly, high safety factor, long service life, and simple maintenance

Technical Parameters

Parameter	Specification
Product Name	Pipe Hydraulic Pressure Burst Testing Machine
Product Number	ZL-3021C
Test Pressure	0-10 MPA (pressure optional)
Pressure Control Accuracy	+2% of upper limit, -1% of lower limit
Pressure Value Resolution	0.01 MPa
Pressure Sensor	Test pressure sampling frequency 0.1 milliseconds
Test Medium	Water or hydraulic oil
Pressure Control Method	Pneumatic drive
Operation Method	Electric control
Sample Quantity	1 way control (number of ways optional)
Sample Installation Method	Manual
Host Size	1800mm * 650mm * 1650mm (LWH)
Structure and Composition	Power system, circulatory system, pressure control system, workpiece mounting device, manual control
Scope of Application	Hydraulic Hoses and Hose Assemblies

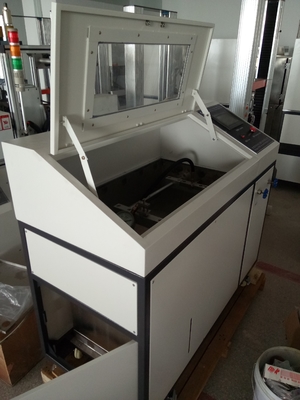

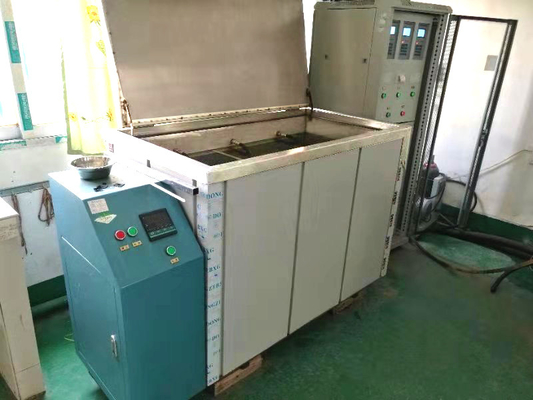

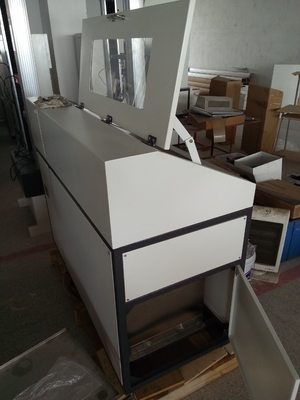

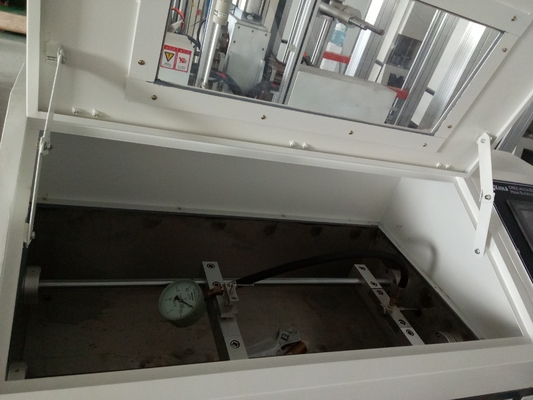

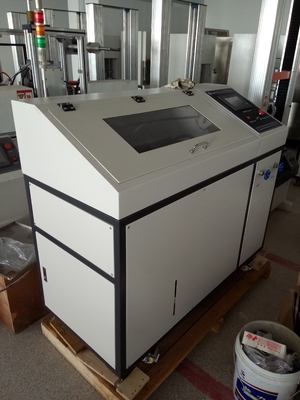

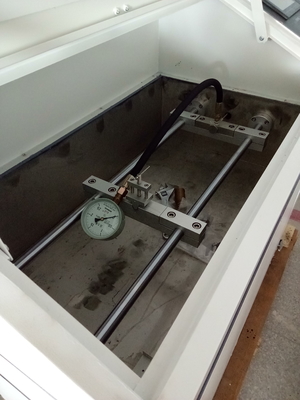

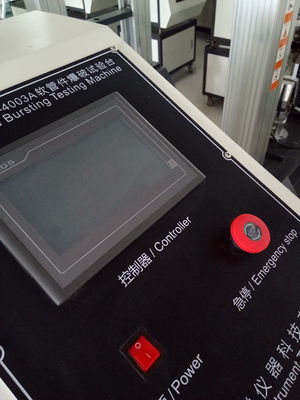

Product Image
