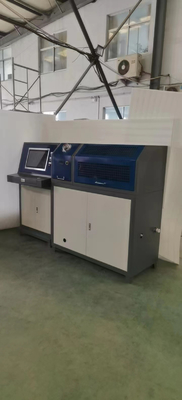

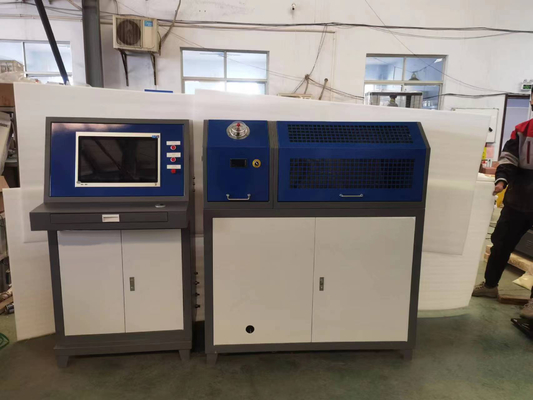

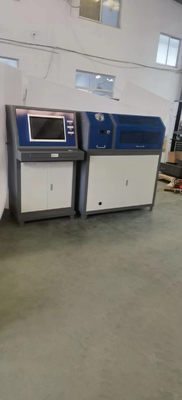

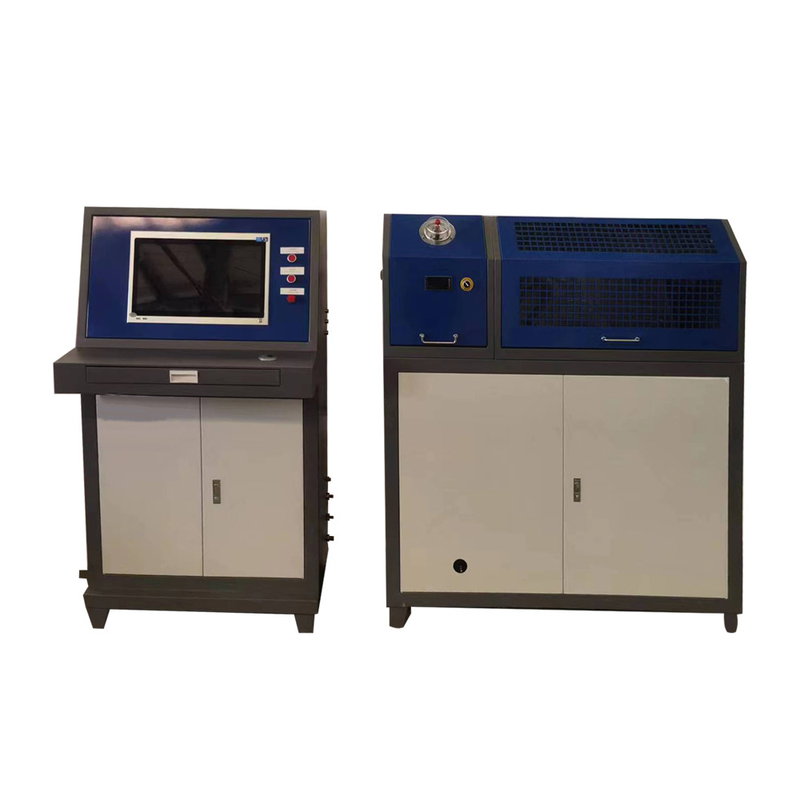

Pipe Hydraulic PressureBurst Testing Machine
Rubber Test Machine:
rubber machine.pdf
●Features:
◆The core pressurization equipment adopts Siming ultra-high pressure plunger pump, which can easily realize the adjustable and controllable output pressure.
◆Advanced technology and reasonable structure design. It has the characteristics of small size, light weight and beautiful appearance.
◆All pressure-bearing parts are standard parts of international famous brands, without any welding connection, easy to disassemble, high safety factor, long life and easy maintenance.
◆Driving air source: 0.3~0.8MPa, displacement 0.8m³/min.
◆The pressure control accuracy is 0.5%FS.
◆Pressure test range: 0~10 MPa (0~16MPa and 0~20MPa need special order)
◆The boost rate can be controlled by computer, the pressure curve can be displayed in real time, and the test report can be printed after the test is completed.
◆The test pressure can be realized in stages.
◆The software can set different boosting rates in stages.
◆The test time can be automatically counted down during the stage-by-stage pressure-holding process, and the end of the time will be reminded.
◆It can automatically stop supercharging in stages to a certain pressure.
◆After the test, the test report in Chinese and English can be printed, and the excel form data can be saved.
◆The medium temperature control accuracy is ±2°, (the equipment is equipped with a temperature sensor device).
●Technical Parameters:
| Product Name |
Pipe Hydraulic PressureBurst Testing Machine |
| Product Number |
ZL-3021B |
| Fundamental |
According to the different pressures of the samples, the booster pump outputs high pressure, and one end of the pipe is connected to the testbench, and the other end is connected to the exhaust valve, so as to
complete the calibration of the samples.
|
|
Technical Parameters
|
Test Pressure |
0~10MPa |
| Pressure Control Accuracy |
+2% of the upper limit of the test pressure value, -1% of the lower limit |
| Test Medium |
Liquid, water, oil-water mixture. |
| pressure Control Method |
Computer control/manual |
| Operation Method |
Computer operation/manual |
| Sample Quantity |
1 way detection. |
| Medium Temperature Control |
Medium temperature chamber for
accurate reading of pressure.
|
|
Structure and
Composition
|
Circulation system, pressure control system, temperature system. |
| Scope Of Application |
Water pressure resistance testing of water supply hoses, |
