Twin Screw Extrusion Granulator Fully Automatic PLC Program Control

Large Image : Twin Screw Extrusion Granulator Fully Automatic PLC Program Control

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3020

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Twin-Screw Extrusion Granulator is packaged in wooden case.
Delivery Time:	15-20 days
Payment Terms:	T/T,L/C,Western Union,D/P,D/A
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	Twin-Screw Extrusion Granulator	Inverter:	Inverter Speed Regulation 5.5KW
Program Control System:	Fully Automatic PLC Program Control Can Directly Display Temperature, Screw Speed, Traction, Winding Speed, Etc. All Parameters Can Be Set And Controlled Arbitrarily	PLC Touch Screen Size:	10 Inches
Screw Diameter:	Ø21.7mm	Length-to-diameter Ratio:	L/D=40:1
Screw Combination:	Building Block Type	Heating Power:	5KW
Warranty Period:	2 Years	Model:	ZL-3020
Highlight:	Twin Screw extrusion granulator , Fully Automatic extrusion granulator , PLC Program Control extrusion granulator

Twin Screw Extrusion Granulator - Fully Automatic PLC Program Control

This fully automatic twin-screw extrusion granulator features advanced PLC program control for precise operation and monitoring of all critical parameters including temperature, screw speed, traction, and winding speed.

Technical Documentation

Download Rubber Machine Technical Specifications (PDF)

System Components & Specifications

Main Feed System

Feeding Motor: 0.37KW * 1 unit
Feeding Method: Twin-screw quantitative feeding with integrated stirring function
Hopper Construction: Stainless steel, thickness ≥ 2mm
Feeding Screw: Material 45#, surface hard chrome plated
Feeding Hopper: Stainless steel construction, thickness δ=1.5mm

20-Type Twin-Screw Extruder

Main Motor: 5.5KW power rating
Speed Control: 5.5KW inverter with speed regulation
Frame Construction: Section steel welded frame, annealed for stress elimination, providing high rigidity and deformation resistance

Program Control System

Fully automatic PLC program control with real-time display of temperature, screw speed, traction, and winding speed. All operational parameters are fully configurable and controllable.

PLC Touch Screen: 10-inch display interface

Barrel and Screw Assembly

Screw Diameter: Ø21.7mm
Length-to-Diameter Ratio: L/D=40:1
Screw Configuration: Building block type combination
Screw Hardness: HRC65~72
Screw Material: High-quality nitrided steel 38CrMoALA with high temperature vacuum desalination treatment
Barrel Construction: No. 45 steel outer jacket with double alloy bushing, wear-resistant alloy a-101 (Fe-Cr-Ni-B+Carbide)
Mandrel Component: High-quality 40CrNiMoA steel with involute line connection for high strength, large load capacity, and easy disassembly
Screw Rotation: Same direction rotation

Heating System

Temperature Range: Room temperature to 300℃
Heating Zones: 5-zone cast aluminum heater in barrel + electric heating tube at discharge port
External Protection: Stainless steel safety windshield
Heating Power: Approximately 5KW

Vacuum System

Vacuum Pump: 150W capacity
Drive Motor: 150W power
Deoxygenation System: Water cycle vacuum deoxygenation device with vacuum pump, vacuum gauge, and regulating valve components
Ventilation: Non-blocking ventilation and exhaust system
Cooling Method: Whole barrel cooling via soft water circulation

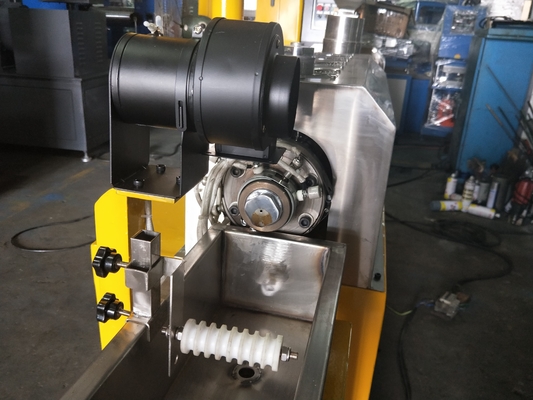

Extrusion Die Head: 3-hole quick-change die head, discharge diameter Ø3mm

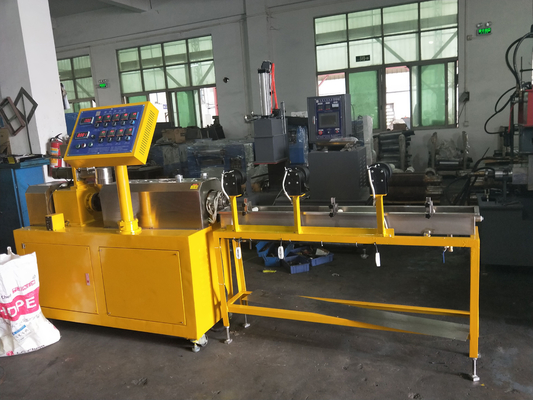

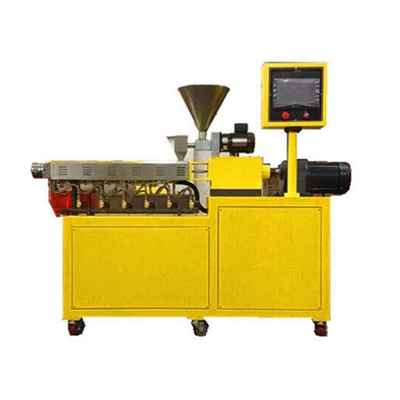

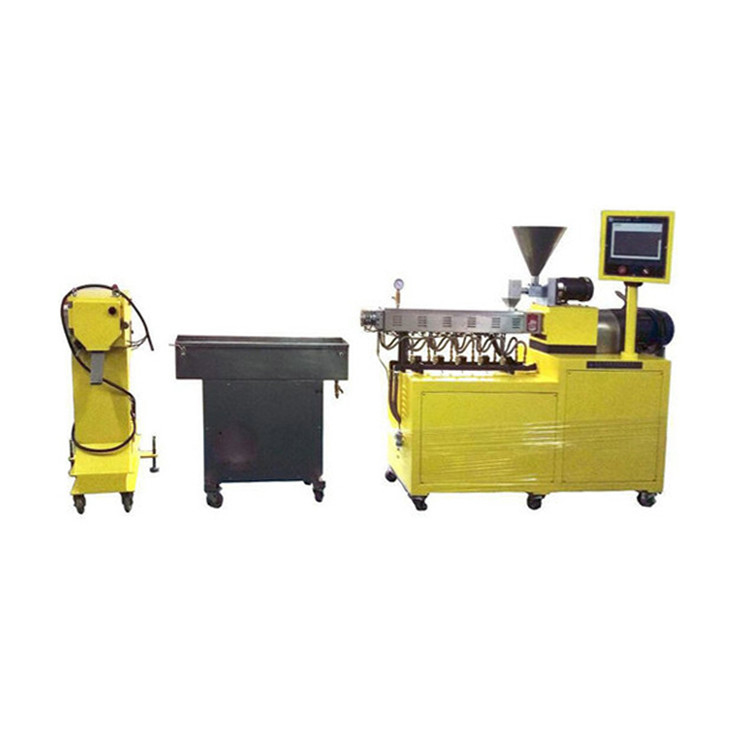

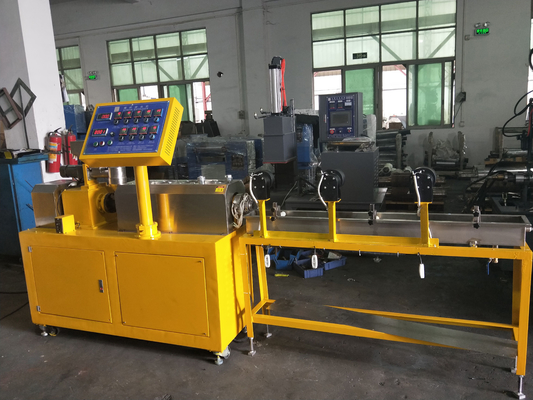

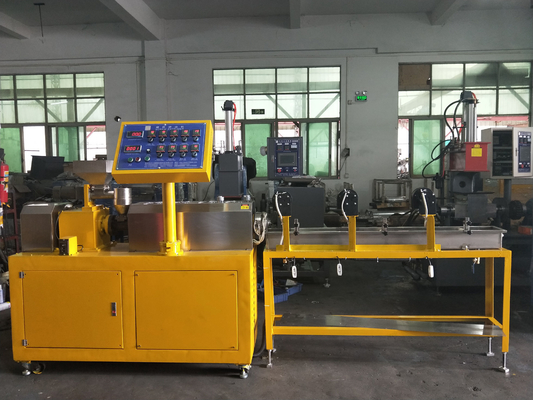

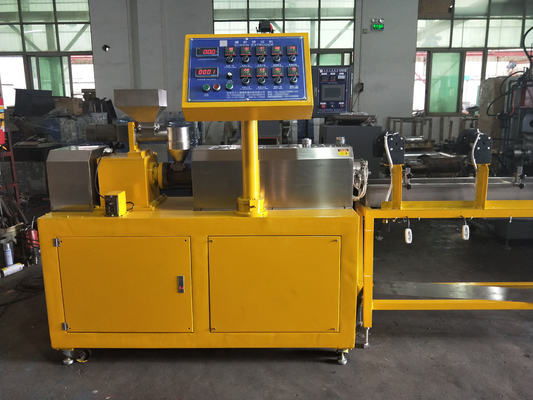

Product Visualization
