Air Cooled Twin Screw Laboratory Extrusion Pelletizer

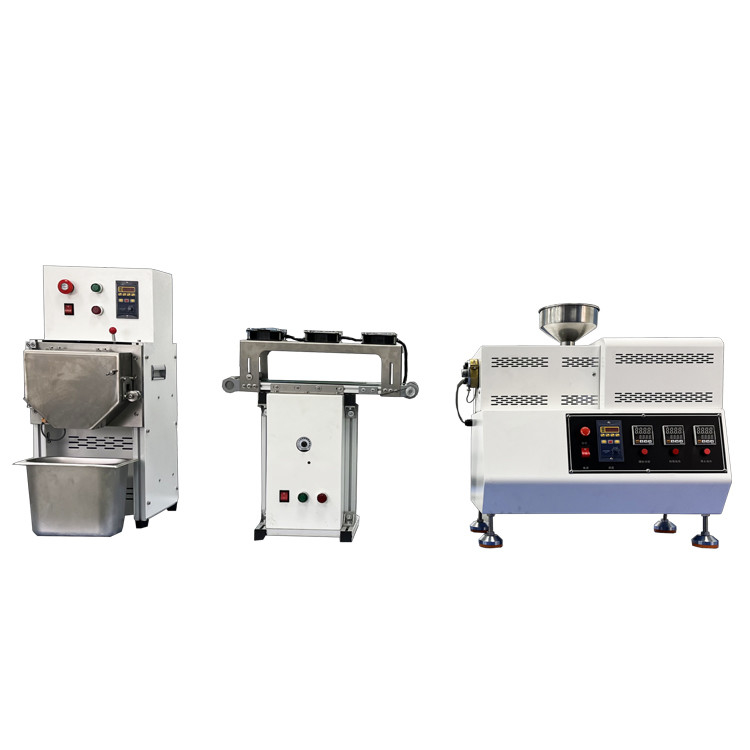

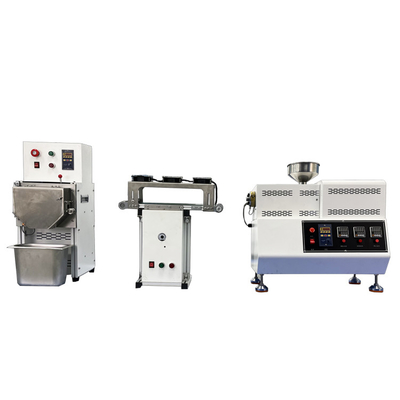

Large Image : Air Cooled Twin Screw Laboratory Extrusion Pelletizer

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3017D

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Air-Cooled Twin Screw Laboratory Extrusion Pelletizer will be packaged in wooden case.
Delivery Time:	15-20 days
Payment Terms:	T/T,L/C,Western Union,D/P,D/A
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	Air-Cooled Twin Screw Laboratory Extrusion Pelletizer	Model:	ZL-3017D
Screw Diameter:	Taper 16*2pcs	Designed Output:	0.1-3KG/h
Extruder Size:	0.70.20.5m	Weight:	50kg
Extrusion Center Height:	300mm	Motor Power:	750W
Warranty Period:	1 Year
Highlight:	Air Cooled extrusion pelletizer , Twin Screw extrusion pelletizer , Laboratory extrusion pelletizer

Air Cooled Twin Screw Laboratory Extrusion Pelletizer

Technical Documentation

Download Rubber Machine PDF Documentation

Equipment Overview

Product Performance Features

Professionally manufactured screw and barrel with high processing precision and quality assurance
Brand motor drive with stable and reliable screw speed control
Adjustable particle size and material thickness for complete plasticization and mixing

Applications

Material melting and plasticizing extrusion
Optimization of extrusion process parameters
Small-scale experimental lines for film, sheet, pipe, and pelletizing applications

Technical Specifications

Model	ZL-3017D
Screw Diameter	Taper 16*2pcs
Designed Output	0.1-3 KG/h
Extruder Size	0.70.20.5m
Weight	50kg
Extrusion Center Height	300mm
Extrusion Direction	Right → out to the left
Motor Power	750W
Voltage	220V 50HZ [three-plug plug]
L/D Ratio	16:1
Heating Temperature	Normal temperature - 350℃/450℃ [quotation subject]
Warming Time	Normal temperature - 350 degrees/30min
Temperature Control Accuracy	±1℃
Temperature Fluctuation	±2.5℃
Cooling Method	Three-zone air-cooled active zone cooling
Applicable Raw Materials	PP, PC, PVC, ABS, PE, PA6, PS, PEI, PIMMA, POM, TPU, PTE, PEEK, etc.
Screw Barrel Material	38Crmola, Nitrided treatment
Space Occupied	Length 1.5m * Width 500mm * Height 500mm [Extruder + air-cooling device + haul-off and pelletizing device]

Additional Features

Feeding area with silent cooling device [air-cooled or water-cooled optional offer subject to]
