Desktop Single Screw Extrusion And Granulation Machine

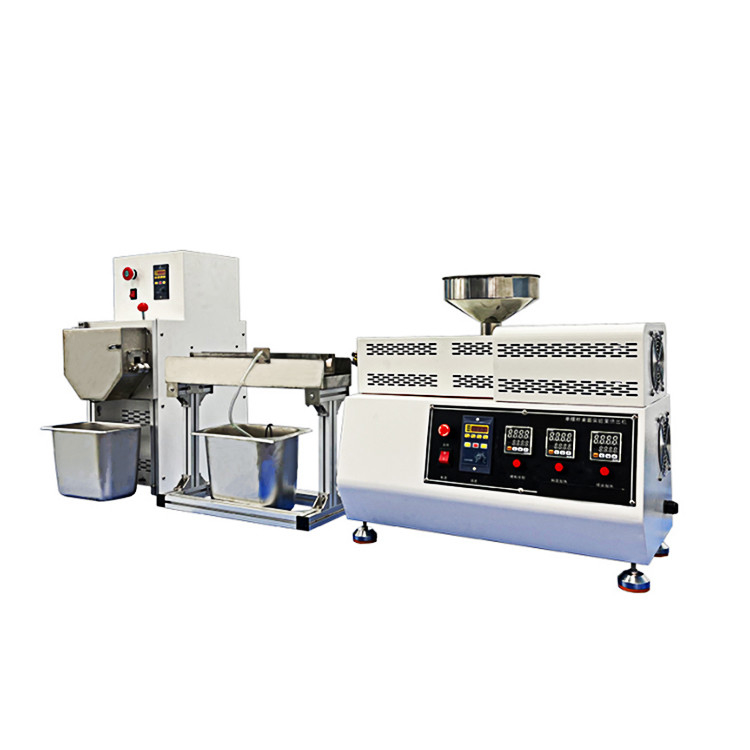

Large Image : Desktop Single Screw Extrusion And Granulation Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-3017C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Desktop Single-Screw Extrusion And Granulation Machine will be packaged in wooden case.
Delivery Time:	15-20 days
Payment Terms:	T/T,L/C,Western Union,D/P,D/A
Supply Ability:	30 set per month

Contact Now

Detailed Product Description

Product Name:	Desktop Single-Screw Extrusion And Granulation Machine	Screw Diameter:	25mm
Design Output:	0.1-1.5KG/h	Machine Size LWH:	640mm * 300mm * 550mm
Weight:	About 90 KG	Extrusion Center Height:	300mm
Extrusion Direction:	Right To Left Out	Motor Power:	370W
Warranty Period:	1 Year
Highlight:	Single Screw Extrusion And Granulation Machine , Desktop Extrusion And Granulation Machine , Desktop Single Screw Extrusion Granulation Machine

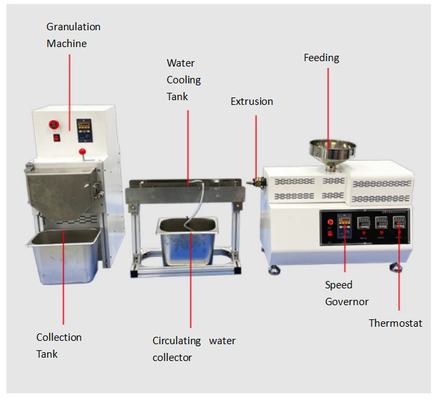

Desktop Single-Screw Extrusion and Granulation Machine

This compact laboratory-scale single-screw extrusion and granulation machine is designed for material testing, process development, and small-scale production applications in rubber and polymer industries.

Technical Documentation

Equipment Performance Features

Precision-manufactured screws and barrels with high processing accuracy and quality assurance
Brand motor drive with stable and reliable screw speed control
Complete material plasticization and mixing with adjustable particle size output

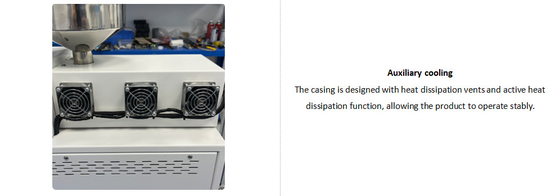

Silent cooling device in feeding area for optimal operation

Application Scope

Material melting, plasticizing, and extrusion processes
Optimization of extrusion molding process parameters
Small experimental production lines for films, sheets, pipes, and granulation

Technical Specifications

Screw Diameter	25mm
Design Output	0.1-1.5 KG/h
Machine Dimensions (LWH)	640mm * 300mm * 550mm
Weight	Approximately 90 KG
Extrusion Center Height	300mm
Extrusion Direction	Right to Left Out
Motor Power	370W
Voltage	220V 50HZ
L/D Ratio	21:1
Heating Temperature Range	Normal Temperature - 350℃
Screw Barrel Material	38CrmoA, Nitrided
Temperature Zones	3
